| 原産地: | 中国(本土) | 銘柄: | アドテック | 適用: | フライス盤 | 条件: | 新しい | モデル番号: | Adt-cnc4940 | 認証: | ce | 名: | cnc49606軸フライス加工用のcnc制御システム |
包装
| 包装: | 総重量: 12kg、 サイズ: 0.43*0.33*0.28 |

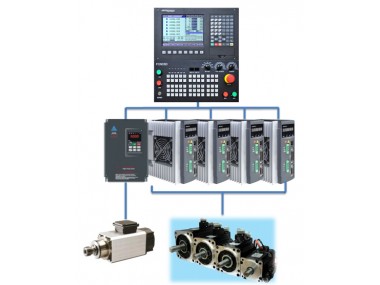

based and updated from ADT-CNC4840, ADTECH launch the new product ADT-CNC4940 CNC Milling controller . It’s a high end CNC Milling controller uses ARM 9 CPU+FPGA, double core processor, with big screen and new functions such as build-in PLC, which supports linear/umbrella tool magazine. With professional input/output board, reducing the electrical cabinet wiring and machine manufacturer’s cost.
- 4 axis movement, 4 axis interpolation linkage movement.
- 4 stepper/servo motor control.
- Independent servo spindle.
- Speed prospect processing, control the speed transition smooth.
- Support straight line magazine, disc magazine, cylinder tool change and magazine features customize.
- System self diagnose and parameters backup, recovery function.
- Support USB, Ethernet, serial communication, U disk, SD card operation.
- Support MPG running G code.
- G code track preview, real-time tracking and syntax check function.
Function:
- Pulse frequency up to 1M;
- 56 input and 48 output ports;
- 2-channel 0-10v analog output Control;
- a set of PWM analog control port;
- 256M built-in electronic disk, support 8G storage space expansion.
