| 原産地: | 中国(本土) | 銘柄: | jyee | モデル番号: | Jyr-02l | 入力電圧: | 220 | 重量: | 24 | 次元: | 480*220*380 | 使用法: | 熱溶接presure | 溶接圧力: | 10 | 提供される売り上げ後のサービス: | 利用できるエンジニア機械類を海外に整備するため |

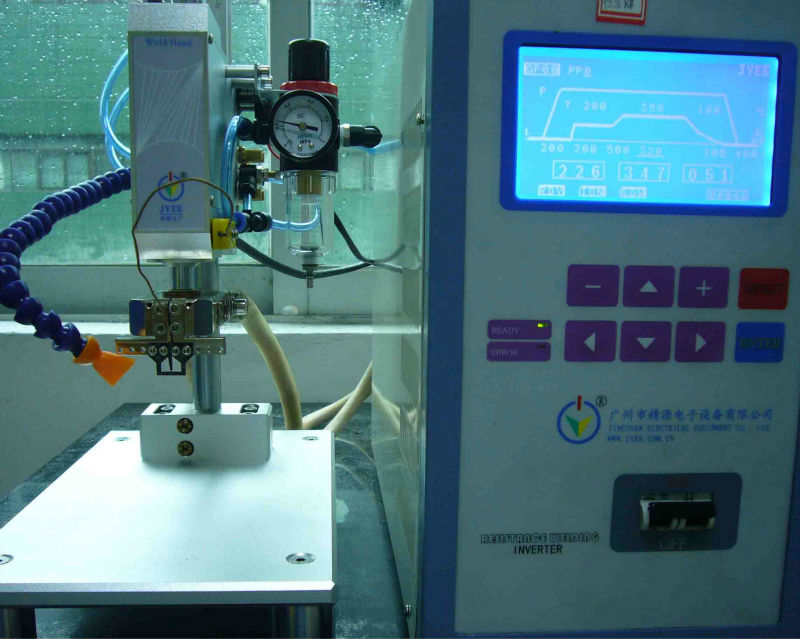

1,Digital Temperature Control
High speed and highly accurate temperature control is realized by the digital PID control method, making the unit suitable for fine wires and micro-miniature works
2,Wide Variety of Temperature Monitoring Functions(0-600 degree centigrade)
3,Three Stage Heating
Various temperature profiles are realized to cope with the diversified applications
4,Good User Interface make it easy for the first users.
5,High Precision temperature Control system,with 4kHz inverter frequency,the unit feedback and accurate the temperature 0.25ms once,usually +-3 degree centigrade.
Model/No | JYR-02L | JYR-03L | JYR-04L |
Iput Voltage(V) | 220 | 220 | 3*380 |
Duty cycle(%) | 20 | 20 | 20 |
Rated power(kVA) | 6 | 10 | 12 |
Heating Tem(°C) | 50-600 | 50-600 | 50-600 |
Weight(kG) | 15 | 20 | 33 |
