力: | 油圧 | 原産地: | 中国(本土) | 銘柄: | 月 | モデル番号: | CB-125D | 原料: | シート/版の圧延 | 機械タイプ: | 機械に玉を付けること | 余分サービス: | 機械加工 | オートメーション: | 手動 | 認証: | CE | 処理される材料/金属: | 黄銅/銅 | 色の銅バスバー曲げツール: | レッド/イエロー |
包装
包装: | 木製ケース |

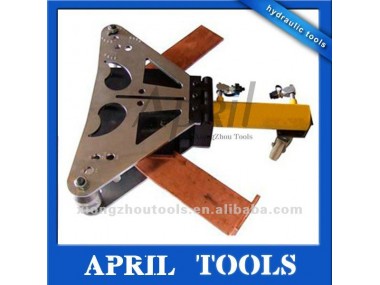

Hydraulic busbar bending machine CB-125D
Max work pressure | 630Mpa |
Max Stroke | 200mm |
Bending thickness | 12mm max of Cu/AL sheet;10mm max of steel plate. |
Bending width | 125mm max |
Bend angle | D>90 degree angle,arbitrary angle |
Bend radius | R=row width*2.5 |
Oil type | 16# hydraulic oil |
Oil capacity | 600ml |
Weight | 82kg |
hydraulic busbar bending machine structure:
1.Working cylinder
2.Rapid connector
3.Side of block
4.Spent on board
5.Under the flower plate
5.Roll column
6.R template
7.Clamp die
8.Right angle die
9.United pole plate
10.Pin
11.Car
12.High pressure pipeline
13.hand pump(electric pump)
Features:
1. The dual machine is designed for flat bending and standing of brass and Al. Curve radian accords with national standard.Smooth without knit.No wing plate adopts without welding hingle style.Meanwhile,which is by tempering processing,strong and during, no breakage and prevent aperture from transformation,switching convenience..
2.The unique design of curve bending scale 45-90 degrees, a curved shape.In the field of high precision, lead and find the template matahing row.Installation qulickly and easliy, engaged in the personnel with high efficiency, in power line or machine or maintenance on-site application.exert its powerful efficiency.
