| 電圧: | 3p380v | 原産地: | 中国(本土) | 銘柄: | topspack | モデル番号: | Tp-gm-20/30/40/60b | 重量: | 150/250/380/550 | 力(W): | 4/5.5/7.5/11 | タイプ: | 内部粉砕機 | CNCまたはない: | 正常 | 条件: | 新しい | 認証: | ce証明書 | 次元(L*W*H): | 960*750*1750/1000*900*1680/1200*650*1550/1350*750*1680 | モデル: | Tp-gm-20/30/40/60b | 容量( キロ/h): | 60〜100/100から300/160-800/500から1500 | フィードサイズ( mm): | <6/< 10/< 12/< 15 | の粉砕粒度( メッシュ): | 3-120 | スピンドル速度( r/min): | 4500/3800/3400/2800 | モーターパワー( kw): | 4/5.5/7.5/11 | 重量( kg): | 150/250/380/550 | 寸法( mm)( l*w*h): | 960*750*1750/1000*900*1680/1200*650*1550/1350*750*1680 |
包装
| 包装: | 耐航性のある合板のカートン |
Main Use:
Grinder is mainly applied to food (sesame seeds, red dates, sugar, rice, corn, starch, oats, flour, beans, peas, lentils and spices, cocoa powder, potato powder, coffee, salt, milk, onion, dehydrated vegetables, glucose , oat hull, husk, herbal flavors and fragrances), chemical (polyethylene, PVC, polystyrene, polyvinyl alcohol, limestone, gypsum, paints, pigments) grinding, especially for oily, viscous material.
Main features:

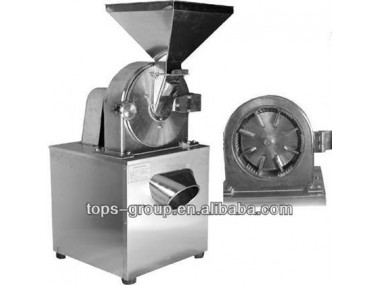

Grinding machine inside adopts high-speed rotary grinding wheel cutter, machine inside is with large air volume, not easy to get heating. It has advantage of stable running, easy disassembly and cleaning, low noise, good effect for the smash.
Work Principle:
1. The raw material is sent into the machine hopper by the feeder conveyor, then leaks into the crashing cabin.
2. The leather belt driven by motor spurs the motional hammers whirling in a high speed, the hammers chafe, collide with the immovable fluted disc in a high speed, then the raw material is ground.
3. The ground powder will leaks from the screen stencil, gets out from the discharge hole, stored inside the bag.
Technical parameters:
Model | TP-GM-20B | TP-GM-30B | TP-GM-40B | TP-GM-60B |
Capacity (kg / h) | 60-100 | 100-300 | 160-800 | 500-1500 |
Feed size (mm) | <6 | <10 | <12 | <15 |
Grinding fineness (mesh) | 3-120 | |||
Spindle speed (r / min) | 4500 | 3800 | 3400 | 2800 |
Motor Power (k w) | 4 | 5.5 | 7.5 | 11 |
Weight (kg) | 150 | 250 | 380 | 550 |
Dimensions (mm) (L× W× H) | 960*750*1750 | 1000×900×1680 | 1200×650×1550 | 1350×750×1680 |
Our Promise
Top and consistent quality, Reliable and excellent after-sale service!
