電圧: | 220v | 原産地: | 中国(本土) | 銘柄: | zhongxiang | モデル番号: | zx20zx50fzx7550cwとと | 鋭い速度: | 250-3200rpm | 重量: | 850/1000kg | 力(W): | 垂直0.85/1.5kw、 水平1.1キロワット | CNCまたはない: | 正常 | 条件: | 新しい | 認証: | ceおよびiso9001 | 次元(L*W*H): | 12801220x2240mm | 提供される売り上げ後のサービス: | 利用できるエンジニア機械類を海外に整備するため | warrantity: | 3年間 |
包装
包装: | ストングでパッキング、 木製ケース |

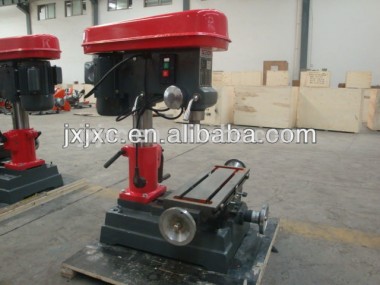

| ZX20 | ||
Drilling capacity(mm) | 20 | ||
Max.vertical milling dia.(mm) | 12 | ||
Max.horizontal milling dia.(mm) | 50 | ||
Max.tapping dia.(mm) | M10 | ||
Spindle taper | MT2 | ||
Spindle travel(mm) | 100/4 | ||
Distance spindle axis to column(mm) | 200 | ||
Columm size(mm) | Φ78 | ||
Distance spindle end to table working(mm)) | 70-410 | ||
Table size(mm) | 500×200 | ||
Table travel(mm)(Longitudinal x Transverst)(mm) | 300×150 | ||
Body travel(mm/) | 250/10 | ||
Spindle speeds series | 12 | ||
Spindle speeds range(r.p.m) | 250-3200 | ||
Motor(KM) | 550 | ||
N.W./G.W(kg) | 160/184 | ||
Packing dimensions(mm) |
|
All other specifications datas,pls contact with us,we can send it to u detailedly after ur inquiry!
The following producing line to shipment:
