原産地: | 中国(本土) | 銘柄: | dlchem | モデル番号: | t8108 |
CNCまたはない: | 正常 | 条件: | 新しい |
包装

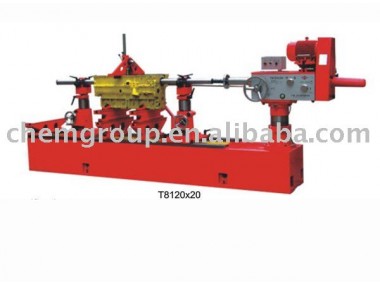

Model t812020 and t8115bx16 cylinder body bushing boring machines are repairing machine tools with high efficiency and high precission。 which were developed in our factory。 they can be used for boring master bushing and can bushing of engine ・ generator・rsquo; s cylinder body in automobiles、 tractors and ships etc。 if necessary、 the flywheel hub bore and bushing seat hole can be also finly bored。 in order to reduce auxiliary manhours and labour intersity and guarantee machining quality、 accessories for centering、 sectifying tool、 measuring inner diameter、 boring rod bracket、 tool holder to increase diameter、 boring tool micro- adjuster and for distance tool sectifying device can be provided with the main machine。仕様
モデル | t8115bx16 | t812020 | t8120ax20 |
径。 のボーリング孔の範囲 | ・φ; 36・ndashする; ・φ; ミリメートル150 | ・φ; 36・ndashする; ・φ; ミリメートル200 | ・φ; 28・ndashする; ・φ; 225ミリメートル |
最大。 ボディシリンダーの長さ | 1600ミリメートル | 2000ミリメートル | 2250ミリメートル |
メインシャフト最大の長さ | 300mm | 300mm | 300mm |
主軸回転速度 | 210-945rpm( 6ステップ) | 210-945rpm( 6ステップ) | 1:30~150rpm |
|
11:93~467rpm |
ボーリングロッド餌の量mm/rad | 0.044、 0.167mm | 0.044、 0.167mm | 0.43、 0.085、 0.125 |
モータ電源 | 0.75kw/1.1kw | 1.5キロワット |
無段階調節speed+sgnchronousbelfホイール | 主軸回転速度 | 30-467r/min | / |
ボーリングロッド餌の量 | 0.044、 0.167mm/rad | / |
モータ電源 | 1.5キロワット | / |
機械寸法 | 3510650x1410mm | 3910650x1410mm | |
