| 電圧: | 220/380/415 | 原産地: | 中国(本土) | モデル番号: | Y3150-3 | 重量: | 2100キロの | 力(W): | 3キロワット | タイプ: | ギヤ歯切り工具で切る機械 | CNCまたはない: | 正常 | 条件: | 新しい | 認証: | qs | 次元(L*W*H): | 1825*935*1730 | 提供される売り上げ後のサービス: | 提供される海外サービス無し | 色: | あなたの条件に従って |
包装
| 包装: | ウッドケース |
Main technical parameters | Y3150-3 | ||
Max working module | steel (mm) | 5 | |
Cast iron(mm) | 6 | ||
Max diameter cutting straight Spur gear | with column (mm) | 350 | |
without column (mm) | 500 | ||
Max diameter cutting Cylindrical helical gear
| Rotation angle 30° | 370mm | |
Rotation angle45° | 250mm | ||
Max vertical travel of hob (mm) | 260 | ||
Max length of cutting (mm) | 240 | ||
Distance from hob spindle to worktable surface (mm) | Max(mm)
| 320 | |
Min(it is 30 mm when the distance from hob spindle to worktable surface less than 85mm) mm | 25 | ||
Minimum distance from worktable surface to hob spindle axis (mm) | 170 | ||
The changeable Diameter of hob spindle(mm) | 22 27 32 | ||
Max diameter of hob (mm) | 120 | ||
Diameter of workingtable hole (mm) | 60 | ||
Diameter of worktable mandrel (mm) | 30 | ||
Speed of Hob main spindle | Grade | 8 | |
Range (r/min) | 50-275 | ||
The vertical feed of hob | 0.24-4.25 mm/r | ||
Main motor power | 3 kw | ||
Main motor speed | 1430 r/min | ||
Pump motor power | 0.125 kw | ||
Pump motor speed | 2790 r/min | ||
Net weight (inclusive all standard accessories) | 2100 kg | ||
Size(L*W*H)mm | 1825*935*1730 | ||

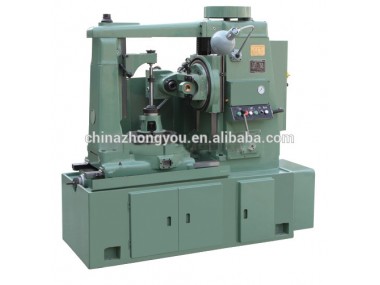

The feature of Y3150--3
1.The basic guide surface :hardening treatment
2.Turbine material: bronze
3. Processing range :spur gear ,spiral gear ,worm wheel and so on
.jpg)
