| 原産地: | 中国(本土) | 銘柄: | bluesword | モデル番号: | マレー18 "のこぎり | タイプ: | 歯車研削盤 | 条件: | 使用される | 機械部品用: | 綿機 |
包装
| 包装: | 標準輸出packge |

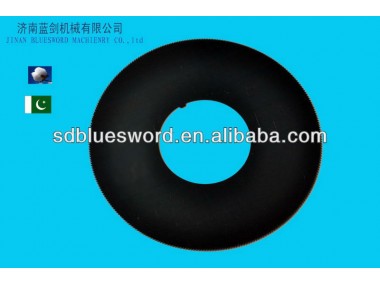

Murray 18" saws
Specifications
Our cotton gin saws is one of the best saw with high quality ,hardness , flatness flexibility
Our engineer who engaged in this field for more than twenty years ,we are confident to provide you what u wanted .
Our Advantages
- Hardness:For the most saw gin HRC can reach to 30-36 ,But due to our superb and exclusice heat treatment technology , which guarantee the teeth heard and unbreakable,
- Flatness :industry standard require the thickness average for one hundred pieces saws is 0.095+0.40mm but our saws can reach to 0.095±0.05mm
- Flexibility: our saw have excellent flexibility which guaranty the teeth hard and unbreakable, it have long life
Teeth form, number of teeth and thickness can be manufactured by the
customers requirements.
Machine | Outer Dia | Bore Dia | Teeth |
177-178Dual | 11-1/4"286mm | 2-7/16"/61.9mm | 245 |
224-252Dual | 11-1/4"286mm | 3-7/16"/87.5mm | 245 |
80/88/90 | 12"/305mm | 2-7/16"/61.9mm | 282/264 |
80/90 | 12"/305mm | 2-7/16"/61.9mm | 282/264 |
100-120 /177-178 Dual /224-254 Dual | 12"/305mm | 2-7/16"/61.9mm | 282/264 |
128/158 | 12"/305mm | 3-7/16"/87.5mm | 282/264 |
120 | 12"/305mm | 3-15/16"/100mm | 282/264 |
158 | 12"/305mm | 4-3/"/120mm | 282/264 |
164/198 | 12"/305mm | 4-3/4"/120mm | 282/264 |
119/114 | 16"/406 | 6-7/8"/174mm | 352 |
80-18/90-18 | 18"/457.2mm | 3-7/16"/87.5mm | 396 |
120-18/142-18 | 18"/457.2mm | 7-15/16"/201.61mm | 396 |
