| 原産地: | 中国(本土) | 銘柄: | zb | モデル番号: | Zb800-4a | 重量: | 150kg | 自動等級: | 自動 | 力(W): | 2.2キロワット | 保証: | 12ヶ月 | 条件: | 新しい | 認証: | Iso9001: 2000 | 次元(L*W*H): | 800*650*480mm | 提供される売り上げ後のサービス: | 提供される海外サービス無し |
包装
| 包装: | 木製ケース |

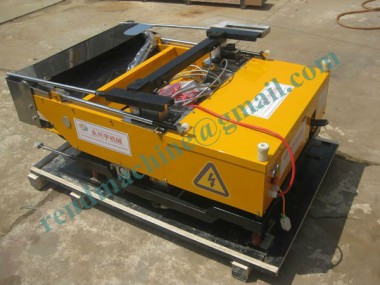

Wall Rendering Machine
General introduction
We are a professional manufacturer of A Wall Rendering Machine. Wall Rendering Machine makes rendering easier, faster, and effortless as compare to manual application. This time and money saving machine, keeps up with the ever changing world of building automation.
Main features
1. It is new machine instead of handmade in construction plastering are.
2. The capacity is as 15 professional plasterers.
3. The quality is subject to international wall plastering standard.
4. Very easy and simple to operation
5. Saving more than 20% raw material (cement &sand)
6. It can plaster by one-time. The thickness of the ash can be adjusted.
7. It can plaster the wall automatically and go up and down automatically.
8. Easy to move, without removing any parts of the machine.
9. The quality is up to the international standard. Leakage protectiondevice with high sensitivity, suitable for
construction site safety and reliability.
10. Easy to operate. One or two person can operate.
11. It has large capacity hopper, you can put the ash/lime/gypsum in it one-time.
Technical data
ZB800-4A Technical data | |
Plastering Height | 0-5meters |
Plastering Thickness | 2-25mm |
Plastering Width | 80cm |
Capacity | 450 square meters/8 hours |
Dimensions | 800×650×480mm |
Voltage/frequency | According to your demands |
Power supply | 2.2kw |
Weight | 150KG |
Surface | smooth |
Vibrator | 2 vibrators |
Juncture device | Yes |
Smoothing knife | Yes |
Perpendicularity degree | ≤2mm |
Level degree | ≤2mm |
Wall Rendering Machine VS Manual Work
Time Sheet
Step2 | Assemble machine | 120 seconds |
Step3 | Move the machine to the wall for rendering | 20 seconds |
Step4 | Adjust the vertical and horizontal level | 20 seconds |
Step5 | Load any kind of suitable mixture to tank | 30 seconds |
Step6 | Render one section 800 mm | 60 seconds* |
Remarks: * means the time of rendering up to 3 m height of wall with 800 mm width for one section
