| 原産地: | 中国(本土) | 銘柄: | prosky | モデル番号: | 佐賀26l | タイプ: | 調理器具 | 容量: | 6-10パン | 簡単操作: | フル自動性 | 温度: | リーチ-25cで30分 | ボトム温度: | -30c |
包装
| 包装: | polywoodケース包装の適切な出荷の海と空 |
blast freezer for vegetable
Specification:
| Blast freezer | |||||

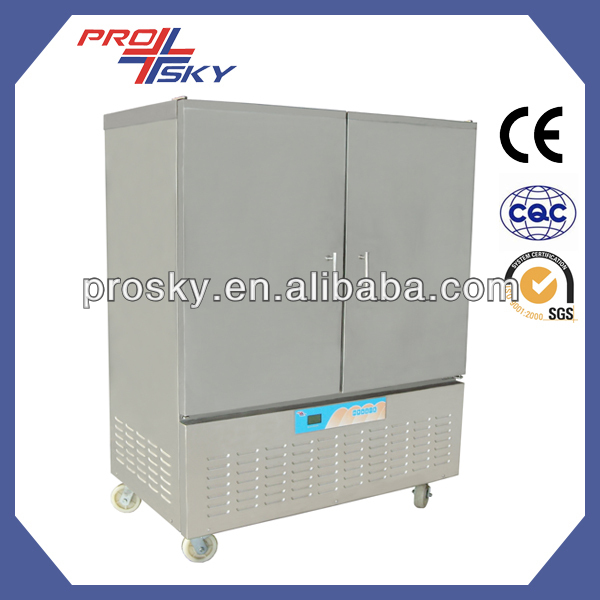

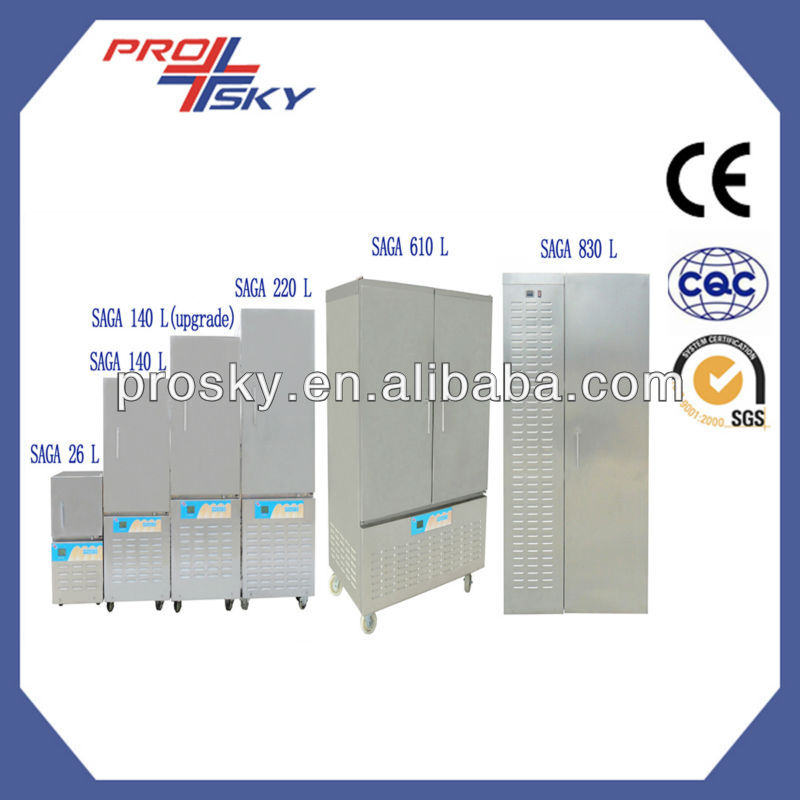

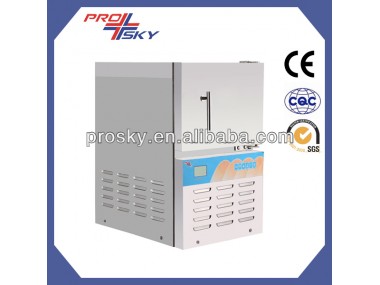

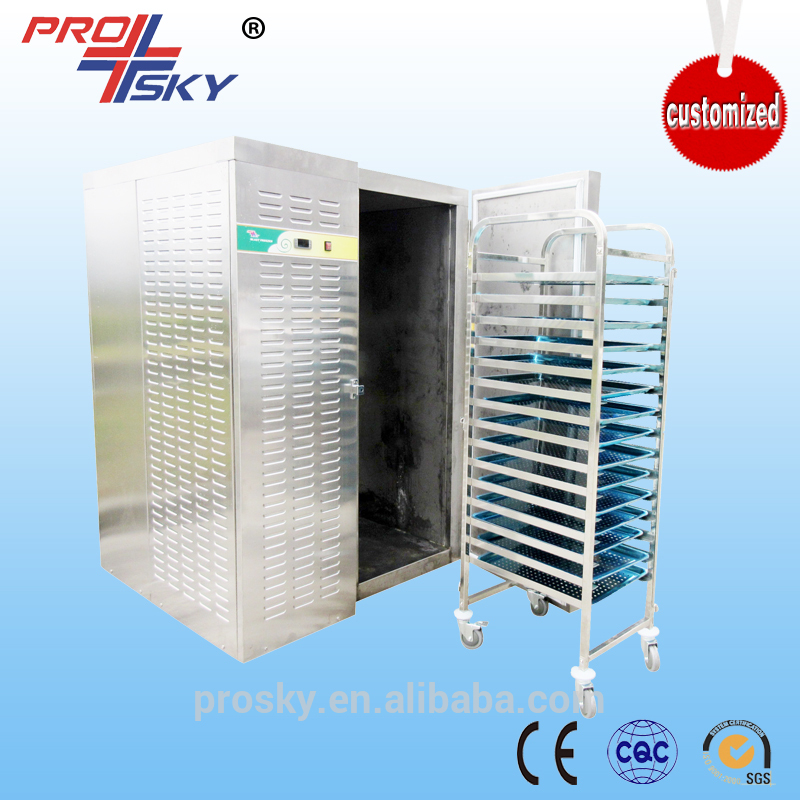

| Model | SAGA 26L(counter) | SAGA 140L | SAGA 220L | SAGA 610L | SAGA 830L |
| Capacity | 26 ltr | 140 ltr | 220 ltr | 610 ltr | 830 ltr |
| Inner cavity size W*D*H | 13.8 * 14.2 * 9.1 inch | 17.7 * 16.5 * 30.3 inch | 22 * 15.7 * 36.6 inch | 52 * 16.9 * 42.5 inch | 24.4 * 31.5 * 67.7 inch |
| 350 * 360 * 230mm | 450 * 420 * 770mm | 560 * 400 * 930mm | 1320 * 430 * 1080mm | 620 * 800 * 1720mm | |
| Layer/pcs | 1 | 4 | 6 | 10 | movable cart |
| Pan quantity/pcs | 2 | 8 | 18 | 30 | movable cart |
| Electrical specification/volt | 220 | 220 | 220/380 | 220/380 | 220/380 |
| Electrical specification/hz | 50 or 60 | 50 or 60 | 50 or 60 | 50 or 60 | 50 or 60 |
| Electrical specification/ph | 1 | 1 | 1 or 3 | 3 | 3 |
| Refrigerant type | R404A | R404A | R404A | R404A | R404A |
| Condenser | Air | Air | Air | Air | Air |
| Rated power | 800w | 1500w | 3200w | 4400w | 4500w |
| Net weight | 218 lbs / 99 kg | 386 lbs / 175 kg | 562 lbs / 255 kg | 1080 lbs / 490 kg | 1113 lbs / 505 kg |
| Gross weight | 278 lbs / 126 kg | 529 lbs / 240 kg | 772 lbs / 350 kg | 1235 lbs / 560 kg | 1411 lbs / 640 kg |
Size W * D * H (with wheels) | 18.9 * 29.1 * 29.5 inch | 23.6 * 33.5 * 55.1 inch | 27.6 * 39.4 * 68.1 inch | 55.1 * 39.4 * 73.6 inch | 52 * 45.7 * 72.8 inch |
| 480 * 740 * 750mm | 600 * 850 * 1400 mm | 700 * 1000 * 1730mm | 1400 * 1000 * 1870mm | 1320 * 1160 * 1850mm | |
Packing size W * D * H | 22.8 * 33.1 * 37.4 inch | 27.6 * 37.4 * 63 inch | 31.5 * 43.3 * 76 inch | 59.1 * 43.3 * 81.5 inch | 55.9 * 49.6 * 80.7 inch |
| 580 * 840 * 950mm | 700 * 950 * 1600mm | 800 * 1100 * 1930mm | 1500 * 1100 * 2070mm | 1420 * 1260 * 2050mm | |
General introduction:
The blast freezer is assembled with super freezing system which can help the center of the gelato to reach the scope of the user’s requirement in order to prevent the bacterial growth to keep the original organization construction and the freshness of the stored food. It is allocated with the French Tecumseh compressor cooling system and Denmark Danfoss expansion valve, etc. The warranty period of the whole machine is 1 year.
Features:
1. The whole machine is controlled by the computer intelligent system with super huge LCD screen. The machine operating status is shown in the graphics whose interface can reflect the communication between the operator and the machine. The preference was protected by the password which can prevent the operation by mistake.
2.Dual working modes of time and temperature have nice performance of heat insulation.
3. Output is adopted the low noise and undisturbed technology.
4. Adoption of the entire high density foaming and total closed construction has perfect heat insulation function, saves the energy and protect the environment.
5.Superior freezing ability prevent the ice crystal among the process of temperature fall period.
6..Adpoting the UFI approved environmental-friendly refrigerant R404A.
