| 原産地: | 中国(本土) | 銘柄: | TIANFENG | モデル番号: | TDP-5 | タイプ: | 単一の穿孔器 | 証明: | CE/ISO9001 | 適用: | タブレット |

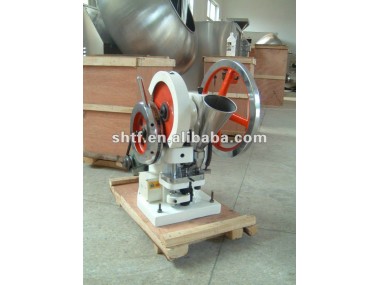

Single punch tablet press
This single- punch tablet press is designed for pressing tablets from a variety of granulated materials。
The singlepunch tablet press is a pressing machine driven by motor or hand。
One punch die set is included。 filling depth、 tablet thickness、 and punch pressure are all adjustable。
Our single- punch tablet press is an ideal equipment for laboratory、 research department and small manufacturers。
Tablet press、 is also can be called as tablet press machine、 pill press machine、 tablet compression machine and tablet making machine、 is for pressing powder raw materials into tablets。
Technical parameters of single punch tablet press
モデル | Tdp-5 |
Maximum pressure( kn) | 50 |
Maximum dia。 of tablet( mm) | 20 |
Maximum filling depth( mm) | 16 |
Maximum thickness of tablet( mm) | 6 |
Production capacity( 個/hour) | 4500 |
Motor power( キロワット) | 0.75 |
Overall size( mm) | 700*400*800 |
重量( kg) | 125 |
