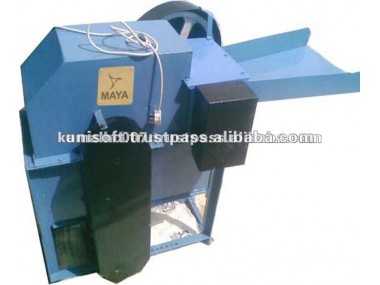

Agriculture Chaff Cutter Machine

Any feed, fodder is good to animals when they relish on it, remain healthy, breed, and produce milk. Animals are the best mirrors to choose the type and quality of feed and fodder.
It is an art to compute a ration for milk producing animals depending upon the locally available resources. A qualified and experience veterinarian can guide you in formulation of suitable ration.
Animals once adapted to particular feed takes some time (10 –15 days) to switch over to other type of feed.
Animals are the creatures of habit, whatever habit you create (e.g. giving concentrate at the time of Milking or concentrate soaked in water overnight) they will adapt to it. Find the best suitable method that is acceptable to your animals.

Chaff cutter are used mainly by Farmers to feed cattle to their animals. NGO’s, Co-operative Societies, Farmer Associations, Co-operative Dairy, Dairy Farming for feeding animals. The cutted chaff/fodder are very easy to eat by animals and gives good quantum of milk to the animal owner

Features

• It is made from M.S. materials
• Two/Three Cutting Bladed with sharp Edges.
• Available in Hand Operated or Electrical Version or Diesel Engine Operated Or Tractor Operated
• It cuts Green Fodder & Dried Fodder, soft braches of tree for making compost fertilizer.
• Normal Cleaning of machine gives better Cutting output
• Installation is very easy to operate
• Cutting size :- 0.75 inch to 1inch.
• Gear Box operated for smooth running of blades for cutting.
• Safety of machine because of covered Body
• Range of machine - 2 H.P./3 H.P./5 H.P./10 H.P.
• Capacity per Hour - 200 Kg. To 3000 Kg./Hr.
• Approx. wt. of Machine - Depending on Model
• Operating Manual will be available with machine or CD Presentation Manual available on demand a extra Cost.
• Std. Accessories - Extra tool kit.

Range of Chaff Cutter

Hand Operated Chaff Cutter

Maya Brand Chaff Cutter “PRINCE-1” MODEL

• manual Operated
• 36” wheel size, Two shard edge Blades,
• Heavy-duty cutter machine in MS body,
• Wt. 88-90 kg,
• Available in 36”
• 2 high carbon steel cutting blades,
• Total 6 bearings,
• Oil tank for CI Gear
• This machine can be attached with 2 hp single-phase motor also.

Maya Brand Chaff Cutter “KING- 2” MODEL

• M.S.Foundation & complete m.s. materials
• Complete close body for safety
• Gear systems for smooth running
• V-belt pulleys & V-Belt Driven
• Sharp Edge 9” Two blades
• Cutting Capacity 200 Kg./Hr.
• suitable for 2 H.P. Motor
• With Electric motor of 2 h.p. Crompton/Marathon
• Approx. wt. 130 Kg.

Maya Brand Chaff Cutter  “KING-3” Model

• M.S.Foundation & complete m.s. materials
• Complete close body for safety
• Gear systems for smooth running
• V-belt pulleys & V-Belt Driven
• Sharp Edge 12” Two blades
• Cutting Capacity 300 Kg./Hr.
• suitable for 3 H.P. Motor
• Approx. wt. 130 Kg.

Chaff Cutter 2 H.P. “SUPER” MODEL

• MS body with chain and pulley system
• The complete motor system is made inside the legs to consume less space and to better the input capacity.
• Two high carbon steel cutting blades with 36” wheel,
• Wt. (without motor) – 110-115 kg,
• Foundation – 55x4mm or 604mm,
• Oil tank for CI gerari,
• Suitable for 2-hp single-phase motor

Chaff Cutter 3 H.P. “DELUXE” MODEL

• Made from M.S.
• Suitable for 3 H.P. motor
• Two Feeding Rollers
  Without Gear Box,
  Blower type.
• Wt. of machine 175-180 Kg.

Chaff Cutter 5 hp “JUMBO” MODEL

• Made from M.S.
• Suitable for 5hp motor,
• Single side blower, Steel gear based Gear box
• Cutting wheel in MS plate
• Self feeding (Conveyor) – Optional, Made
• Four wheels for easy movement Of machine
• Two stage gear box with pivots
• Chain & Sprockets used for power transmission
• Three blades with blower fans
• 12 Bearings for smooth functioning of parts
• Cutting capacity 1200 to 1500
• Wt. Without motor 275 kg .

Chaff Cutter 7.5 hp “JUMBO-2” MODEL

• Made from M.S.
• Power required is 7.5-10 HP
• Both side blower
• Heavy duty gear box and head
• Cutting wheel in MS plate
• Self Feeding (Conveyor Belt)
• Output – 1500 – 2000 Kg./Hr.
