原産地: | 中国(本土) | 適用: | わら、 アルファルファ、 草のベーラーに散歩- 背後にトラクター | 銘柄: | ベーラーfgmshyd散歩に- 背後にトラクター | モデル番号: | ベーラーfgmshyd散歩に- 背後に9070付きトラクターモデル、 1070、 5080 | オペレーティング速度: | ベーラーに散歩- トラクターの後ろに容量を持つ80から120俵/h | タイプ: | ベーラーに散歩- 背後にトラクター | 保証: | 18月 | 条件: | 新しい | 認証: | ベーラーに散歩- 背後に認定ce付きトラクター、 iso | 次元(L*W*H): | 2000*1400*1300mm | 提供される売り上げ後のサービス: | 利用できるエンジニア機械類を海外に整備するため | 動作速度: | 2-9km/h | 干し草ベールアプリケーション: | わら、 アルファルファ、 草のベーラーに散歩- 背後にトラクター | アイテム: | ベーラーに散歩- 背後にトラクター | 駆動のモード: | p。 t。 o | ベール重量: | 15-40kg | ベールのサイズ: | 径。 500*800mm | 干し草ベール作業幅: | 800〜1000ミリメートル | フィットモーター: | 18-40hp | ヘイベーラーの容量: | 俵80から120/h | 色: | custimized |
包装
包装: | ベーラー用木製パレットに散歩- 背後にトラクター |
Specifications
1) baler to a walk-behind tractor
2) PTO driven
3) Advanced Japanese technology
4) High quality
5) CE certificate
Main features of baler to a walk-behind tractor :
1.make the picking and bundling up at one time
2.easy to transport and storage after strapping
3.small volum,light weight,compact structure,easy to operate
4.high efficiency with 3-5 area/hour
5.can be followed in combine harvester to achive the best effect,save time and effort
Company introdution:
Wuxi Nsb Transmission Technology Co., Ltd. was established in 1995 and located in Wuxi , China . Our company-Wuxi NSB is a professional hydraulic system manufacturer and exporter , we serve for customers from all over the world . We have the most advanced baler,baling press machines and metal shearing machines , we only offer high good quality baler hydraulic press machine with low price .We are expert in automatic horizontal and vertical balers, tractor driven round and square balers,hay balers, wood saw dust balers, metal balers and metal shearing machines, hope can support you in the later future !
baler to a walk-behind tractor technical parameters:
Model | FXM-5080 | FXM-9070 | FXM-1070 |
power | 18-35HP | 20-35HP | 25-40HP |
drive mode | P.T.O drive | P.T.O drive | P.T.O drive |
machine size | 2000×1400×1300(mm) | 2100×1450×1350(mm) | 2200×1600×1350(mm) |
mahcine weight | 420Kg | 520Kg | 820KG |
pick-up width | 800(mm) | 900(mm) | 1000(mm) |
capacity | 0.2-0.3hectares/h | 0.26-0.4hectares/h | 0.5-0.66 hectares/h |
bale weight | 15-20Kg | 20-30KG | 35-40KG |
bale size | Φ500×800(mm) | Φ700×900(mm) | Φ600×1000(mm) |

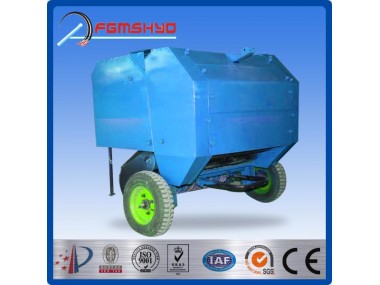

Photos of baler to a walk-behind tractor :
