| 電圧: | ac220v | 原産地: | 中国(本土) | 銘柄: | jieda | 条件: | 新しい | モデル番号: | JD-61 | 重量: | 120キログラム | 自動等級: | 半自動 | 力(W): | 1500ワット | 次元(L*W*H): | l (130センチ) ×幅(60センチ) × h (126センチ) | 有効幅: | 0.1〜150ミリメートル | 重量: | 120キログラム | 電源: | 1500ワット | マックス。縫製速度: | 22メートル毎分 | 状態: | 新しい | 全体寸法: | l (130センチ) ×幅(60センチ) × h (126センチ) | タイプ: | 工業用ミシン |
包装
| 包装: | で木製梱包 |

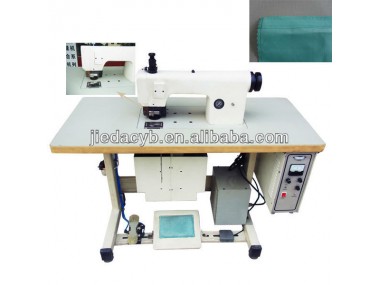

ultrasonic welding machine nonwoven
Suitable material:
composite material, thermoplastic film and plastics slice, such as chemical fibrous cloth, nylon cloth, knitting cloth, non spin cloth, gush glue cotton, PE paper, PE + aluminium, PE + cloth, and so on.
Application:
Lace clothing, skirt rim, sportswear, pajamas, gown , hair decorations, packaging satin, colored ribbon, tent, raincoat, tablecloth, chair cover, bedspread, pillowcase, quilt cover, curtain, handkerchief, coloured flag, disposable operating coat, non spin respirator, handicraft , decorations products
Characteristics of ultrasonic welding machine nonwoven
1. Power Supply: 220V±5V 50Hz (60Hz)
2. Working Frequency: 20KHz
3. Output Power: 1500W
4. Working Speed: 8-22M/min
5. Effective Breadth: 0.1-150MM
6. Equipped Pattern Mould: (0.1-150)MMxØ51MM
7. Materials Suitable: for Hot Fusibility, for example: polyester, nylon, chemical and non-woven fabrics
8. Packing Size: L (130cm)x W(60cm)x H(126cm)
9. Total weight: 120 Kgs
Functions
1. The operations of side scraping and trimming
2. The side scrap in one side and side melting can be carried out at the same time. It makes the side smooth, no roughness and no coarse side.
3. Make holes
The holes with different patterns can be cut and the treatment of side melting can be carried out too.
4. Transfer printing
5. Two layers or multi-layers can be melted together. It is not necessary to use thread and needle. This process can replac sewing. Moreover the melted strength is excellent.
6. Cut Material
This machine can cut material for single piece or many pieces at one time. Moreover it can carry out the treatment of side melting. There is no coarse side.
7. Forming
Press the pattern wheel.
At one time the process of cutting, hole breaking and patter printing can be carried out.
