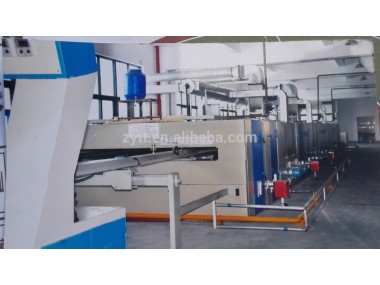

• モミ設定マシン( 標準) 果実濃縮物のための、 毛布。-織物の仕上げ機械
    商品番号: 13108518
    仕入れる商品へのお問い合わせについて、
    お電話の場合:スタッフに商品番号をお伝えください。
    商品の詳細

    電圧: 380ボルト 原産地: 中国(本土) 銘柄: yuanwei
    条件: 新しい モデル番号: モミ 重量: 20 t
    自動等級: 自動 力(W): 総電力の120 kw 保証: 一年
    認証: iso9001 次元(L*W*H): 42メートル* 4.3メートル* 4.3メートル 提供される売り上げ後のサービス: 利用できるエンジニア機械類を海外に整備するため
    スタイル: シングル、 水平返信使用針プレートチェーン、 熱風循環。 処理布の種類: 毛皮、 毛布。 デザイン幅: 2600ミリメートル
    機械設計度: 0に30メートル/分。 を最高温度: 蒸気130-140 ℃;天然ガス、 熱伝導オイル200-220 ℃ コード圧縮装置: 収縮プルコード調節可能な範囲- 20〜+ 50%
    メインドライブ: 11 kw可変周波数モーターとトランスミッション部品。 加熱モード: 蒸気、 熱伝導オイル、 天然ガス。 色: を本体ベージュボックスカバーブルー。



    Packaging & Shipping



    Packaging Details:standard sea worthy packing
    Delivery Detail:30 days after receiving deposit







    Scope of supply:

    1.



    The device into the cloth

    1.1.



    The simple cloth rack attached pneumatic correcting device

    1.2.



    The tension adjusting mechanism.







    2.



     To finalize the design operation area

    2.1



    work station of centralized control: including electrical control operating system, temperature control table, overfeeding, speed, transmission and shrinkage quantity meter, etc.

    2.2



    enclosure structure into the cloth area.

    2.3



     on the rubber roller, 1.5 KW motor, transmission parts

    2.4



     stainless steel screw distribution tooth roller, with 1.5 KW motor transmission and distribution.

    2.5



    on the stainless steel needle fabric guide plate.

    2.6



    rack frequency edge tracker.

    2.7



    needle on the feeding device, including 400 w motor, transmission parts, the needle on the rubber wheel and guard hair brush. Use pneumatic cylinder into the needle brush wheel, adjustable pressure cloth tension.

    2.8



    Under the condition of 2.8 devices using roller passive group.

    2.9



     into the tension control system, exceeds the needle on the feed control, super feed adjustable range - 20 - + 50%.

    2.10



     track chain turret and locking device.

    2.11



     stenter into cloth area orbit total length of 5.2 meters (2.8 m + 2.4 m).

    2.12



    automatic needle stop device.

    2.13



     after the auxiliary acupuncture pressure cloth round brush.











    3.



    The oven with a carton

    3.1.



     Length of 3 meters per box, door plank thickness of 100 mm (steam); 120 mm (heat conduction oil); 150 mm (burner)

    3.2.



    Oven for channel iron, Angle iron structure, heat preservation cotton insulation to iron inside.

    3.3.



     The fan with low noise wind strong airflow vortex blades uniform design, 2 sets each box temperature 5.5 KW motor drive, the blowpipe

    3.5.



    The heater with large or the use of the burner.











    4.

     Drive chain guide rails

    4.1.



     track width of beam, horizontal double back

    4.2.



    The chain track is made of cast iron. The high temperature resistant, not variant.

    4.3.



    track lining wear-resistant metal plate

    4.4.



    The needle plate, needle plate and chain: 516 chain lubrication.

    Cooling device 5.













    5.



    Air cooling device





    5.1.



    Air cooling device, placed in a cloth area, the 5.5 KW motor fan waft from down to up.

    5.2.



    Cooling zone track length of 5.2 meters (2.8 m + 2.4 m)











    6.



    Main transmission adopts frequency conversion control 11 kw motor and drive gear transmission.











    7.



     Work width adjusting mechanism

    7.1.



     After the period of the shape and the cloth area by 2.2 KW motor movement overall width adjustment.













    8.



    The vent





    8.1.



    5.5 KW motor exhaust fan (group 2).





    Each room exhaust duct and the total row duct (above exhaust fan duct manufacture) by the buyer.











    9.



    The cloth area

    9.1.



    The cloth area housing structure.

    9.2.



    The cloth device.

    9.3.



    The rubber roller and the infinite gearbox to adjust.

    9.4



    the cloth reciprocating fall device.











    10.



    The main control box a. inverter b. switch, indicator light, breaker, contactor, c. relay d. control cables and power lines.

    11.



    The cloth camera monitoring screen system: the system cooperate work station monitor screen cloth photography.
