| 電圧: | 220ボルト、 50/60 ｈｚ | 原産地: | 中国(本土) | 銘柄: | cnbm | 適用: | 巻線糸上コーン | モデル番号: | LZ-M-L-D | 自動等級: | 半自動 | 力(W): | 100ワット | 条件: | 新しい | 認証: | iso9001 | 次元(L*W*H): | 1500ミリメートル* 408ミリメートル* 1560ミリメートル | 提供される売り上げ後のサービス: | 利用できるエンジニア機械類を海外に整備するため | タイプの巻線: | ドラムランダム | パッケージ形状: | 円筒またはコニカル | マシンのレイアウト: | 垂直両面機 |
包装
| 包装: | 耐航性のある輸出可能なパッキング |
Application:
Automatic Grooved Drum Winding Machine for Winding Yarn is suitable for winding yarns on cones with even density and soft package before dyeing.
Main features:
1. Vertical yarn path design, no inflection point, yarn friction is small, less hairiness.
2. Special motor with longer axis can prevent yarn twisting, speed controlled by inverter.
3. Double points tension control system with micro motors, uniform yarn tension.
4. Using high quality alloy drums with optimized groove shape, which has the advantages of good anti-overlapping characteristics, light weight, good wear resistance, and static elimination.
5. Single winding motor control for each spindle, electronic length, single spindle automatic stop while yarn breaking or fully filled.
6. High-speed creel with gas spring, which can keep constant winding pressure. This creel is stable and reliable.
7. The traverse device for making the soft edge is very easy to adjust, that will make the loose bobbin be suitable for even dyeing.
8. There is tube conveyor on the machine, it can convey tubes and packing automatically. With it, you can not only save labor, but also keep the production site clean.[c1]
9. Our adjustable block yarn sheet metal can prevent the yarn be a mass.

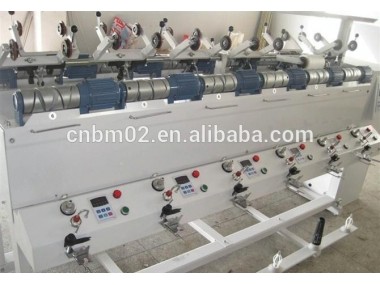

Product pictures of Automatic Grooved Drum Winding Machine for Winding Yarn :
Specification:
Items | Technical parameters |
Types of winding | Drum,Random |
Mechanical speed | Up to 800m/min |
Package shape | Cylindrical or conical |
Traverse length | 230mm,280mm, |
Package bobbin | Cylindrical or conical of 3°30’, |
package diameter | Up toφ 290 mm |
Package density | 0.2-0.4g/cm3 |
Package weight | Up to10kg |
Yarns / count | Cotton.flax,wool, silk,chemical fiber /Ne 6…180 |
NO.of spindles | 2,4,6 spindles per section for select |
Gauge | 360mm for 8 inches mahine, 410mm for 10 inches machine. |
Machine layout | Vertical one sided machine |
Drive | Direct drive by DC-motor ,speed adjustable per spindle |
Power consumption | Installed power: 100W/spindle for 8 inches mahine, 180W/spindle for 10 inches machine.
|
Tensioner | Each spindle has a yarn tensioner And a waxer |
Auto stop while yarn break | With electronic yarn detector,the spindle will stop when yarn break |
Automatic length fixing | Automatic length fixing,max:999999m |
Balancer | The winding pressure can be controlled by balance of gas spring |
Slow start | For smooth start and better winding quality,supporting individual slow start for each spindle |
Electronic yarn clearer | Available on request |
Air splicer | Available on request |
Blower | Available on request,power consumption1.1KW |
External dimensions | 4 spindler winder for 8 inches package:1500mm×408mm×1560mm 4 spindler winder for 10 inches package:1700×408mm×1560mm |
Power supply | 1 phased 220V ,50/60HZ |
