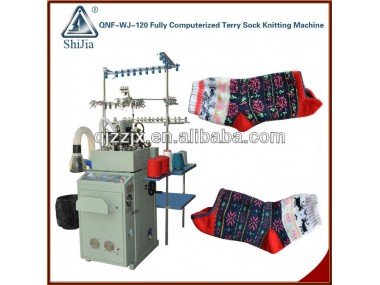

電圧: | 380v | 原産地: | 中国(本土) | 銘柄: | 史家 | 製品容量: | 240prs/day | 条件: | 新しい | モデル番号: | Qjf-wj-120 | 重量: | 350キログラム | 力(W): | 2.55kw | タイプ: | ジャカード編む機械 | 保証: | 1年間 | 認証: | ce | 次元(L*W*H): | 120*110*180 | シリンダー: | 単気筒 | ジャガード: | はい |
包装
包装: | パッケージユニット: 木製にパックする1対ケースセットあたり、 裏地にビニール袋2- ケースの重量: pcごとに周りに60kg3- パッキング仕様( cm)( l*w*h): 120*110*180 |
電源は必要 | 駆動モータ | 1kw |
ファンモーター | 0.75キロワット | |
コントロールボックス | 0.80kw | |
床面積( c到着します。)( リットル。 xw。 xh。) | 150・回; 120・回; 240( cm) | |
n。 w。 | 350キログラム | |
g。 w。 | 400キログラム | |
梱包仕様( c到着します。) (リットル。 xw。 xh。) | 120・回; 110・回; 180( cm) |
Feature and function:
1.spare parts for needles adopt the high technology of japan。 have a good stability and abrasion - 抵抗。
2.drumless 、 fully computer- 制御。
3.エレクトロ- pneumatic control system for yarn finger and cam。
4.stepping motor for the elasticity and density。
5.with double pick needles and double lift needles、 y heel is possible。
6.automatic stop when error occurs such as yarn breaks and needles leak。
7.max color is 16、 2 main feeders and 5 pattern feeders。
8.equipped with the ups。
9.the fog form of needle tube can still provide oil、 reducing waste for dirt。
