電圧:	220ボルト50/60ヘルツ	原産地:	トルコ	適用:	食物
ドライブの種類:	電気	銘柄:	aky技術	モデル番号:	bsc 42
重量:	300キログラム	自動等級:	自動	包装タイプ:	バッグ
タイプ:	充填機	認証:	ce	提供される売り上げ後のサービス:	利用できるエンジニア機械類を海外に整備するため
包装材料:	ボップ/ cpp、ボップ/ vmcpp、ボップ/ pe、ペット/ vmpet/pe、ペット/ pe、など	条件:	新しい	次元(L*W*H):	1115*800*1370ミリメートル
力:	2,2 kw

包装

包装:	1. outsideパッケージ:標準梱包輸出海輸送、2. innerパッケージ:気泡フィルム無料:海で



Product Description



AKY Technology is the first matched packing machine & combination weigher successfully in 2001. Over the past 10 years continuously improve packaging solutions Application Packing machines Series is suitable for grains material, such as : Puffed food, Coffee Bean, crispy rice, jelly, Candy, Pistachios, Apple Slices, Dumplings, Glutinousrice balls, Chocolate, Pet Food, Hardware items, Medicines an so on.

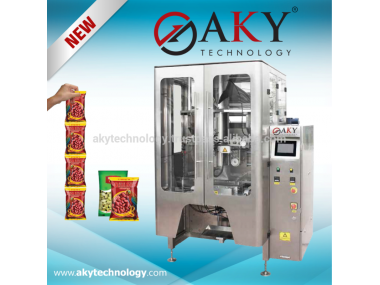

AKY - BSC Series
Model	BSC 32	BSC 42		BSC 52	BSC 52 II	BSC 62	BSC 73	BSC 93
Max packing speed	50 bags/min	60 bags/min		60 bags/min	55 bags/min	45 bags/min	40 bags/min	10 bags/min
Bagsize	(L) 50-200 (W) 60-150 mm	(L) 60-300 (W) 60-200 mm		(L) 80-350 (W) 100-250 mm		(L) 200-450 (W) 120-300 mm	(L) 200-450 (W) 140-350 mm	(L) 250 - 600 (W) 200 - 450
Type of bag making	pillow bag	pillow bag		pillow bag, gusseted bag,		pillow bag, gusseted bag	pillow bag, gusseted bag	pillow bag
Max film width	320 mm	420 mm		520 mm		620 mm	730 mm	930mm
Film thickness	0,04--0,09 mm	0,04--0,09 mm		0,04--0,09 mm		0,04--0,09 mm	0,04--0,09 mm	0,04 - 0,09 mm
Packing film material	BOPP/CPP, BOPP/VMCPP, BOPP/PE, PET/VMPET/PE, PET/PE, etc	BOPP/CPP, BOPP/VMCPP, BOPP/PE, PET/VMPET/PE, PET/PE, etc		BOPP/CPP, BOPP/VMCPP, BOPP/PE,  PET/VMPET/PE, PET/PE, etc		BOPP/CPP, BOPP/VMCPP, BOPP/PE, PET/VMPET/PE, PET/PE, etc	BOPP/CPP, BOPP/VMCPP, BOPP/PE, PET/VMPET/PE, PET/PE, etc	BOPP/CPP, BOPP/VMCPP, BOPP/PE, PET/VMPET/PE, PET/PE, etc
Air consumption	0,8 Mps 0,25 m /min	0,8 Mps 0,5 m /min		0,8 Mps 0,4 m /min		0,8 Mps 0,5 m /min	0,8 Mps 0,5 m /min	0,8 Mps 0,5 m /min
Voltage	2,2 KW 220 V 50/60 Hz	2,2 KW 220 V 50/60 Hz		2,5 KW 220 V 50/60 Hz		4 KW 220 V 50/60 Hz	4 KW 220 V 50/60 Hz	4 KW 220 V 50/60 Hz
Dimension	(L) 1115 x (W) 800 x (H) 1370 mm	(L) 1530 x (W) 970 x (H) 1600 mm		(L) 1430 x (W) 1200 x (H) 1700 mm		(L) 1340 x (W) 1400 x (H) 1800 mm	(L) 1340 x (W) 1580 x (H) 1950 mm	(L) 1700 x (W) 1650 x (H) 2100 mm
Net weight	300 kg	450 kg		680 kg		700 kg	800 kg	950 kg
Servo Motor (Quantity)	1	1	2	1	2	1	2	1







Company Information

AKY Technology is an organization for new technology in grain conditions, processing and solutions in Turkey and all over the world.


Grains, pulses, seeds and oilseed machinery, AKY Technology is the manufacturer for the technological system that manages the process from harvest to packaging, also a spare part supplier and installer.



AKY Technology’s machines are used to purify the product (grains, dry fruit etc.) from foreign substances such as dust, dirt, stones. Imperfect products (broken, immature, crude etc.) are also sorted with AKY Technology’s machines.  Packaging and bagging machines are also a part of wide manufacturing spectrum.


The machines are classified as mechanical or computer controlled so that the aim is to offer viable alternatives to the customer's budget. In addition, cleaning machines can be made compatible with the desired product and have different capacities.


Throughout 10 years, experienced managers and professional staff offer a great deal of improvement with a high quality of service in grain and dry fruit industry.


Also it is important to establish trust between the customer & AKY Technology. World to be selected so as to ensure maximum benefit to any part of the plant and be careful when installing each piece to be combined. Within the outline of mutual agreement; and control the life cycle of the plant machinery and equipment, parts supplying and treatment are provided continuously.


Additionally, with AKY Technology, a Project, a task or a system come alive considering the customers' requirements. Our experienced staff meet with our customers for the best solution. AKY’s one of the priority principle is to lead the clients for long-term customer satisfaction.


AKY Technology aims to establish long-term business partnerships with strong communication flow, and to strengthen the presence in pulses and grain sector as a follower and creator of techno-innovation all over the world.


Now it is techno-innovation time with AKY Technology!



Packaging & Shipping

1. Outside Package: standard packing export sea transportation,
2. Inner Package: air bubble film Shipping: by sea







FAQ



 Q: Guarantee and after-sales service?

 A:

• One year guarantee for whole machine
• Technical Team Support
• Our service after sale
