| 原産地: | 中国(本土) | 銘柄: | CHUANHE | ドライブの種類: | 空気 | 適用: | 食物 | モデル番号: | CH-1200 | 自動等級: | 自動 | 包装材料: | プラスチック | 包装タイプ: | 袋を密封する枕袋および3つか4つの側面 | タイプ: | マルチファンクション包装機 | 機能: | シーリング, 詰物 | 条件: | 新しい | 力: | 3つのKW | ステンレス鋼: | セリウムの証明書 |
包装
| 包装: | 直接フィルムを包むことによって包まれた機械は木の場合にそれから入った |

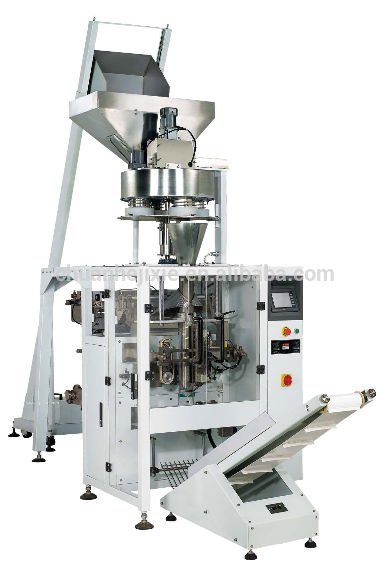

CH-1200 main packing machine:
Items | Content |
Capacity | 5-20 bag/min |
Bag size | (L)100-700mm (W)180-600mm |
Bag type | Pillow-type bag, standing-bevel bag, punch bag |
Max film width | 1200mm |
Film thickness | 0.04-0.08mm |
Air consumption | 0.8Mps 0.4m3/min |
Main power/voltage | 10KW/ 220V 50Hz |
Dimension | L2400*W1900*H2420mm |
Weight | 900kg |
Function and structure characteristics
1. Electrical by famous brand product , stable capablity , auto rectifying device function , highly auto.
2. For guaranteeing stable line-term operation of the machine , electrical equipment and pneumatic equipment are imported from Japan , Taiwan and so on .
3. The machine combined with filling , sealing , date-printing , counting , etc .
4. The opening and closing type metering device can be used according with material .
Application scope
Suitable for packing fragile bulk material with irregular shapes and requiring high measuring accuracy, such as :puffed food, shrimp strip, potato chips, banana chips, apple flakes, crispy rice, biscuit, peanut, cooked seeds, sweets, melon seed , frozen fruit , sugar , edible salt and washing powder , etc.
Turntable metering machine
Characteristics of turntable metering machine
1. this machine configuration is economic and practical 2. the structure is simple , logical and easy operate .
Technique specification
Weighing capacity | Max 1200 ML |
Measuring accuracy | ±1-3g (depend on the materials ) |
Measuring speed | 60 times per min |
Voltage | 220V |
