| 電圧: | 220v/50-60hz | 原産地: | 中国(本土) | 適用: | 食物, 医学, 機械とハードウェア, 商品 | ドライブの種類: | 電気 | 銘柄: | 新しいツリーの | モデル番号: | 250 | 重量: | 800kg | 自動等級: | 自動 | 包装タイプ: | バッグ | タイプ: | 他の | 認証: | ce | 提供される売り上げ後のサービス: | 提供される海外サービス無し | 包装材料: | プラスチック | 条件: | 新しい | 次元(L*W*H): | (l) 3770x( w) 670x( h) 1450 | 力: | 2.4kva | フィルム幅: | 最大250mm | 袋の長さ: | または65~190mm120~280ミリメートル | 袋幅: | 30~110mm | 身長製品: | 最大40mm | フィルムロール径: | 最大320ミリメートル | パッキング速度: | 袋40~230/min |
包装
| 包装: | 木製 |

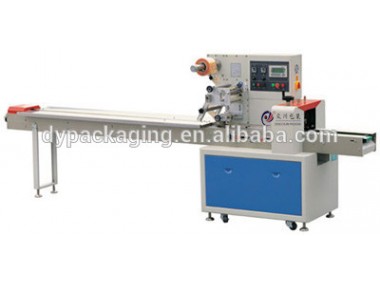

Product Description
I. Main performance and structure features
1. Double transducer control, flexible bag length cutting, operator needn’t to adjust the unloading working, saving time and saving films.
2. human-machine operation, convenient and quick parameter setting.
3.Self diagnosis failure function, clear failure display.
4. High sensitivity optical electric color mark tracking ,digital input cut position which makes the sealing and cutting more accurate.
5. Separate PID control to temperature, suitable for various packing materials.
6. Stopping the machine in selected position, no sticking to the knife and no waste packing film.
7. Simple driving system, reliable working, convenient maintenance.
8. .All the controls are achieved by software, convenient for function adjusting and upgrading.
II. Application
Suitable for packing regular objects such as biscuit, bread, instant noodle, moon cakes, industrial parts, paper box or trays.
III. Optional device
1. Code applying machine
2. line sealing wheel
3. Moire terminal sealing mould
Film width
Model | ZC-250B | ZC-250D | ZC-250S |
Film width | Max.250mm | Max.180mm | |
Bag length | 65~190mm Or 120~280mm | 90~220mm | 45-90mm |
Bag width | 30~110mm | 30-80mm | |
Product height | Max. 40mm | Max. 60mm | Max.35mm |
Film roll diameter | Max.320mm | ||
Packing speed | 40~230 pack/minute | 60-330bag/min | |
Power supply | 220V,50/60HZ,2.4KVA | ||
Size | (L)3770X(W)670X(H)1450 | ||
Weight | 800Kg | ||
note |
| fill gas |
|
Packaging & Shipping
Wooden package, shipment by sea or train,
Our Services
We provide free machine operating training unitl our customer can running it independent and skillful .
Welcome to visit us, Thanks!
