| 原産地: | 中国(本土) | 電圧: | 220ボルト、380ボルト | 銘柄: | ALL-BLOOM | ドライブの種類: | 空気 | 適用: | 飲料, 商品, 食物, 化学薬品, 織物, 機械とハードウェア, 衣服 | モデル番号: | GH480K/GH720K/GH960K | 自動等級: | 自動 | 包装材料: | プラスチック, ペーパー | 包装タイプ: | 袋, バッグ, 場合, カプセル, スタンドアップ式の袋, フィルム, ホイル | タイプ: | マルチファンクション包装機 | 機能: | 包むこと, シーリング, 詰物 | 条件: | 新しい | 認証: | ce | 力: | 4kw | 提供される売り上げ後のサービス: | 利用できるエンジニア機械類を海外に整備するため | サーボ: | 有名なブランド |
包装
| 包装: | 木製梱包 |
Multi lane Granule Size Sealing Packing Machine
(from 2 lane to 10 lanes)
Application for granule product, such as sugar, salt,pepper,washing powder,spice .etc
Measuring method: volumetric cup system
Specification:
| Model | GH480K | GH720K | GH960K |
Lanes Quantity Depends on bag width | 4--6 lanes | 4--10 lanes | 4--12 lanes |
Bag Size (standard) Can make non-standard size) | L:45--120mm W:35--60mm | L:45--120mm W:35--90mm | L:45--120mm W:35--120mm |
| Film width | Max.480mm | Max.720mm | Max.960mm |
| Sealing type | 4 side sealing | 4 side sealing | 4 side sealing |
| Power | 2.8KW | 4.1KW | 5.5KW |
| Air consumption | 0.8m3/min | 0.8m3/min | 0.8m3/min |
| Dimenstion(mm) | 950*1470*2030mm | 1153*1654*2030mm | 1415*1686*2030mm |
| Weight | 300kg | 400kg | 500kg |
Product list --
Guangzhou All-bloom Packing Machinery Co.,ltd
We are a manufacturer of automatic packing machine in Huadu district Guangzhou City,China.
Our product includes
1.Automatic muli-heads weighing and packing machine (for puff food, solid subject,granule) (2--5000g)

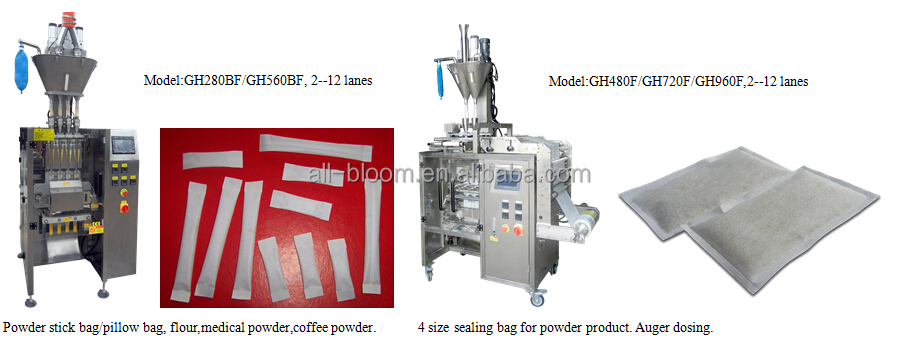

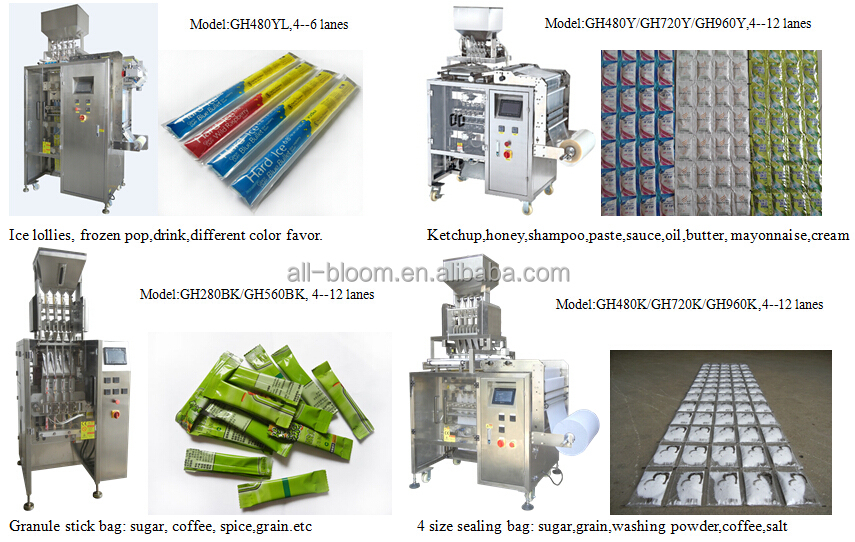

2.Automatic multi-lanes filling and packing machine ( stick bag & 4 sides sealing bag ,).

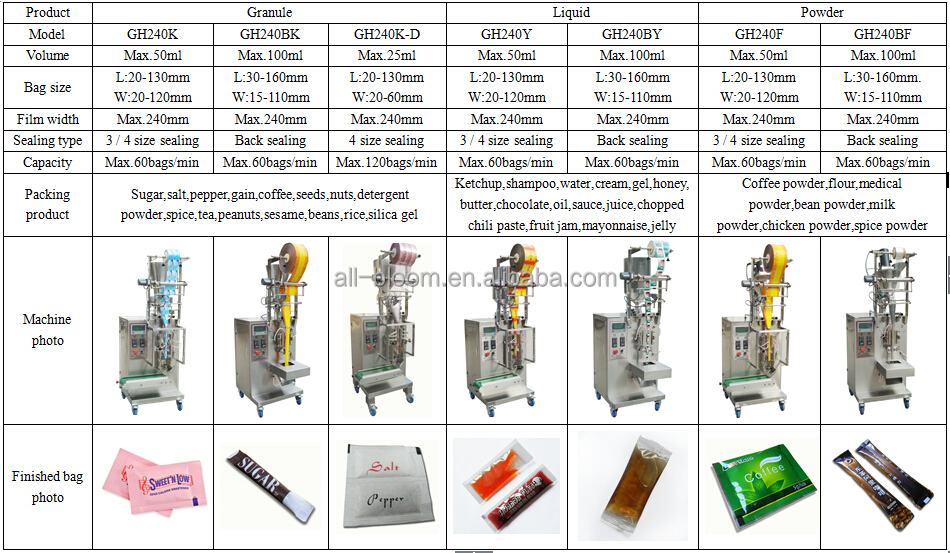

3.Automatic sachet filling and packing machine ( Liquid & paste & powder & granule) (Max.50ml & Max.100mol)

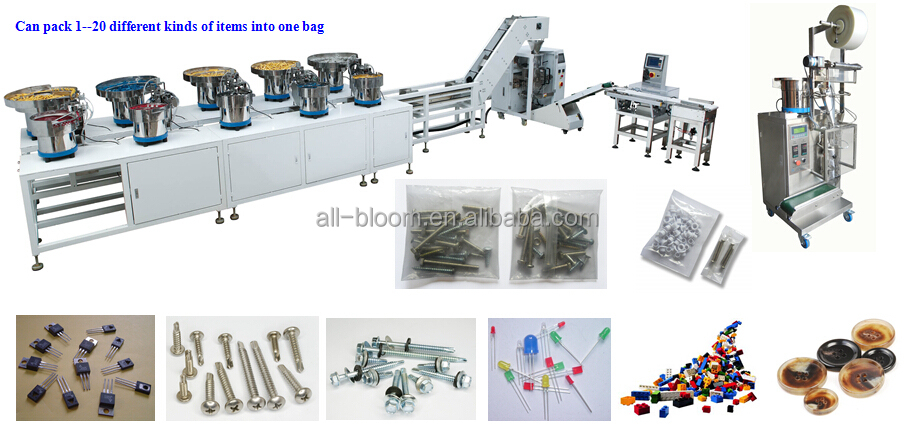

4.Automatic hardware counting and packing machine ( for nuts,screws,bolts,candy, plastic items.)

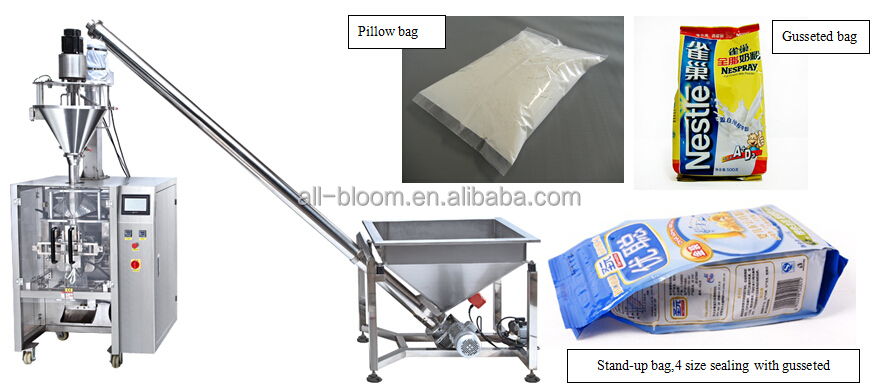

5.Large volume powder packing machine ( 10g--100g-500g-1000g--2000g--3000g--5000g)

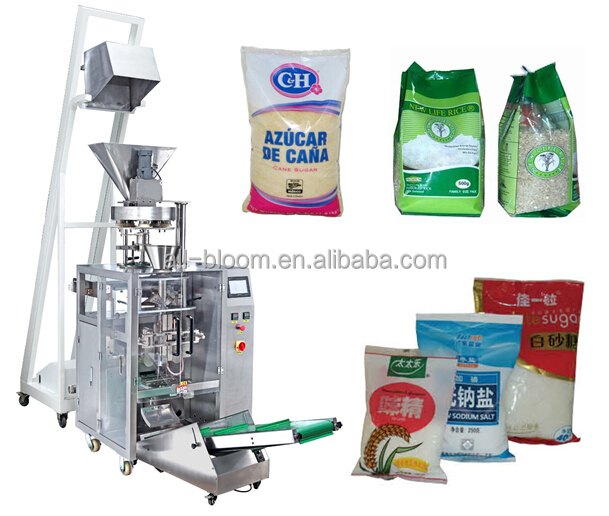

6.Volumetric cup granule filling and packing machine (10g---1000g, 1000g--5000g)

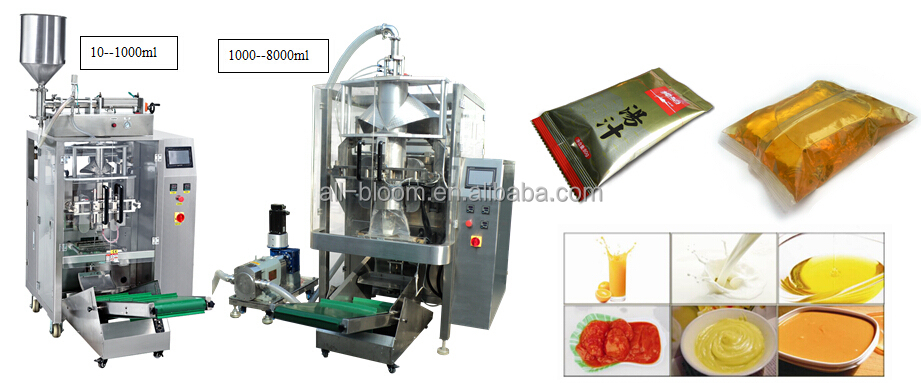

7.Automatic liquid paste filling and packing machine ( 10--1000ml, 1000ml--8000ml)

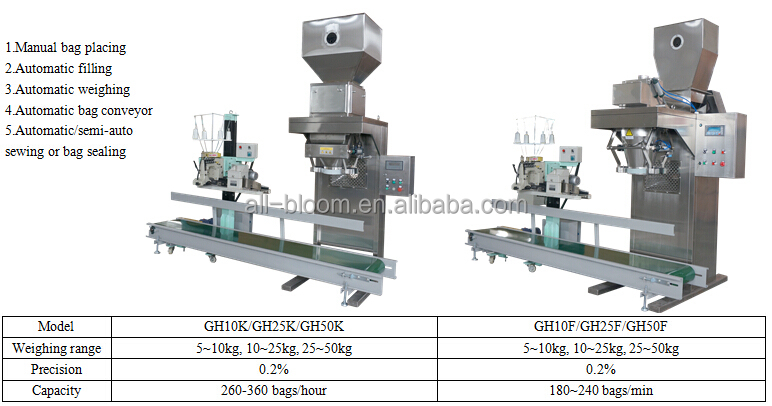

8.Large volume filling and packing machine ( 5--50kg)
9.Horizontal flow packing machine (for cake, bread,wafer,meat,carrot.etc)

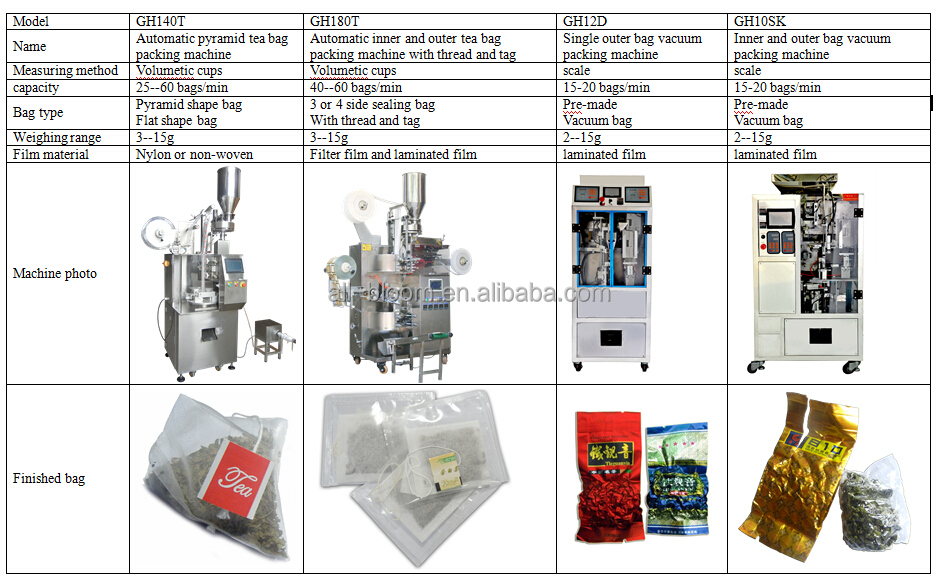

10.Tea bag weighing and packing machine (Pyramid type, with thread and label , paper filter ,vacuum type)

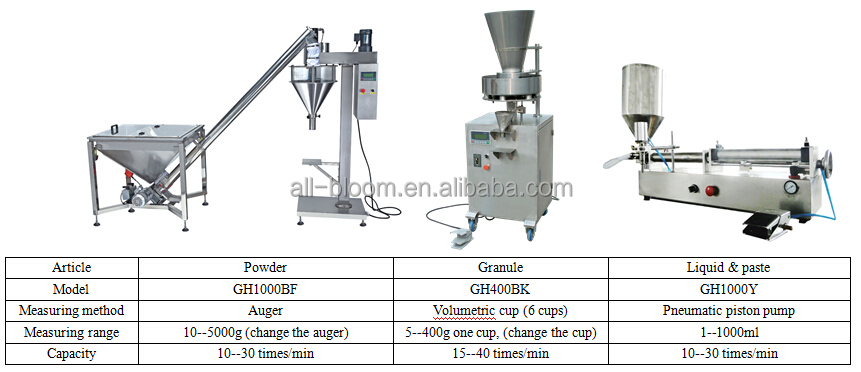

11.Semi auto measuring and filling machine ( powder & granule & liquid ) (1--5000g)

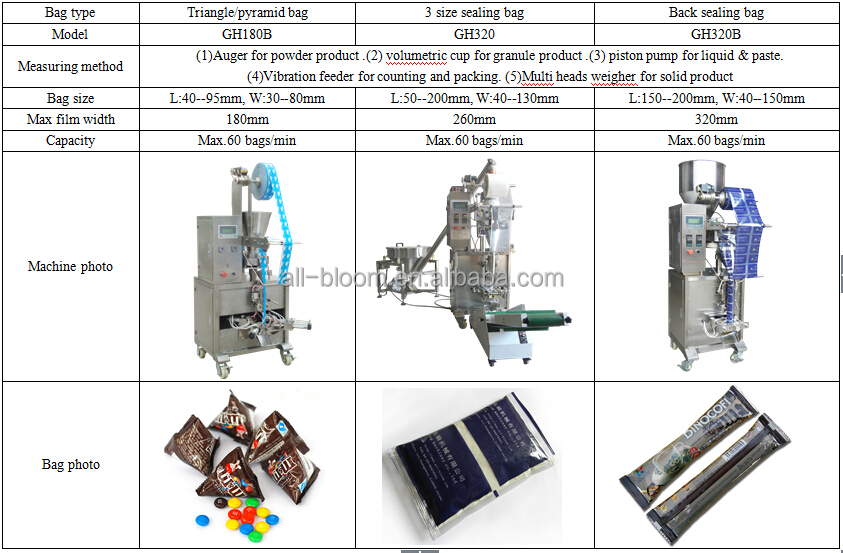

12.Automatic triangle bag packing machine(Max.40ml) / 3 size sealing bag packing machine (Max 300ml) / back sealing bag packing machine(Max.500ml)
Detail of each models

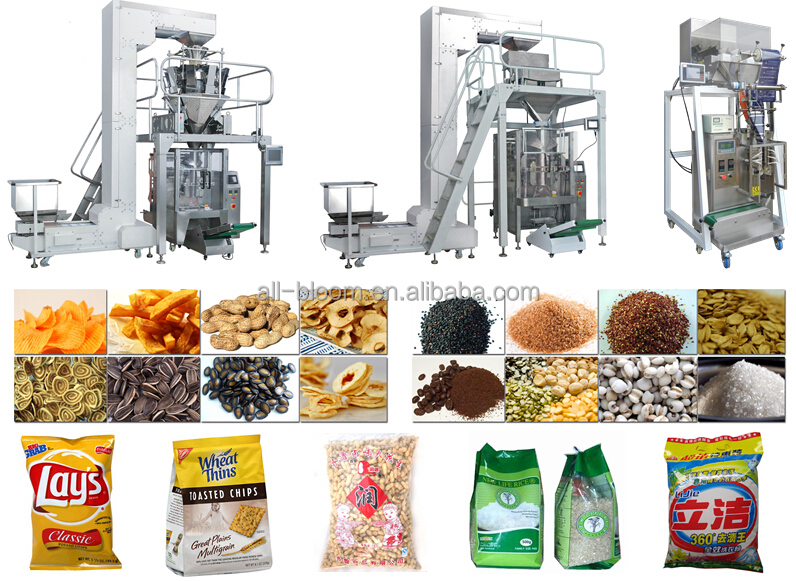

1.Automatic muli-heads weighing and packing machine (10g--1000g--2000g--5000g)
suitable for solid food,granule,such as puffed food,crispy fice,jelly,candy,pistanchio,small hardware.etc
Combined parts:
(1).GH Basic packing machine (2).Multi heads combination weigher or linear weigher (10g--1000g--2000g--5000g)
(3). Support platform (4).Z type bucket elevator (5).Finished product conveyor
