    フルオートの袖のラッパー-包装ライン
    商品番号: 13072722
    仕入れる商品へのお問い合わせについて、
    お電話の場合:スタッフに商品番号をお伝えください。
    商品の詳細

    原産地: 中国(本土) ドライブの種類: 電気 適用: 飲料
    モデル番号: QSJ-5040A 自動等級: 自動 包装材料: プラスチック
    包装タイプ: ボトル タイプ: パッケージライン 条件: 新しい
    力: 3kw 使用法: タイプ: 概要

    包装

    包装: 木の場合

    Detailed Product Description

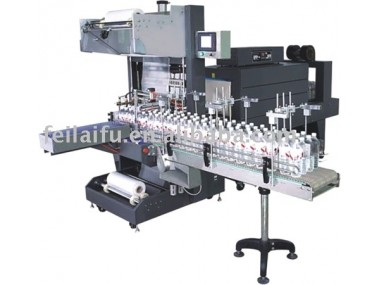

    QSJ-5040A is suitable for wrapping products such as pop-cans, bottles, etc, with bottom-tray or without bottom-tray, working with BSE-5040A or other PE shrink tunnels.

    Characteristic:

    The Machine adopts the advanced touch screen system for man-machine conversation, Schneider programmable logic controller (PLC), AirTAC air-jar, and all the rest parts adopt international famous brand.

    Up and down magnetic switch prevent sealing mistakes, and protect the operators.

    Schneider PLC, Schneider AC contractor, and Intelligent temperature controller performs stable.

    Large power conveyer motor, with stepless speed regulating, ensures smooth feeding.

    Up and down large power fan system ensures the excellent effect of shrinking in one time.

    Super cooling system cools the packing and makes the figuration perfectly.

    Specification

    Model: QSJ-5040A
    Voltage: 220V, 50-60HZ
    Power: 3KW
    Capacity: 0 - 10pcs/minute
    Working air pressure: 4 - 6kg/c
    Width/thickness of the film: Max. 590mm/0.03 - 0.25mm
    Max. packing dimension(L*W*H): 500*300*400mm
    Min. packing dimension(L*W*H): 250*50*100mm
    Machine size(L*W*H): 1,060*1,600*1,930mm
    Machine weight: 370kg
