| 原産地: | 中国(本土) | 電圧: | 380ボルト | 銘柄: | huazhu | モデル番号: | HZ-S | 重量: | 3.8 t | 力(W): | 15kw | 認証: | ce | 提供される売り上げ後のサービス: | 利用できるエンジニア機械類を海外に整備するため | 木製の長さの範囲: | 6800 | 条件: | 新しい | 木製の損失率: | 2-3% | 皮率: | 96% | 次元(L*W*H): | 6800*1450*1700 | 木製の直径の範囲: | 15〜320ミリメートル | 紡錘の速度: | 150r/min | 色: | あなたの要求として |

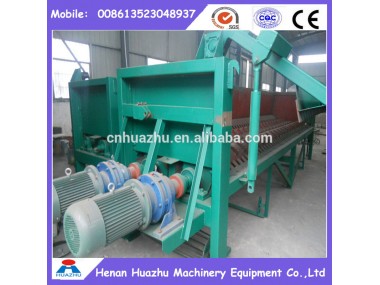

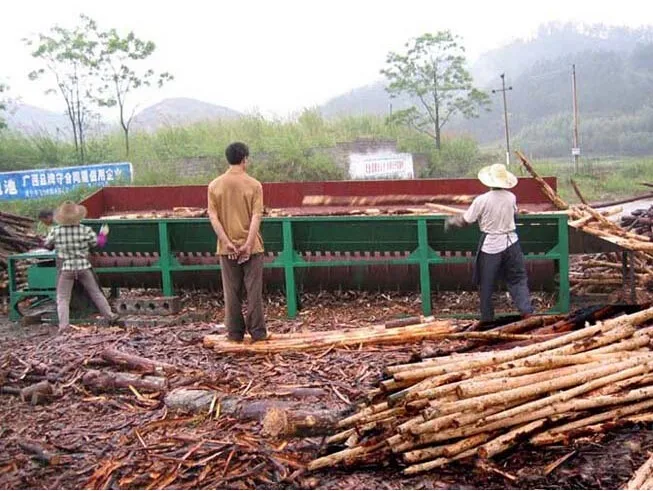

log debarker machine with competitive price
Tree peeling machine features:
1. Adopt four-sideedge tool,easy to use,low cost.
2. The knife dish regulation controlled by hydraulic pressure,advanced structure,realible in performance.
3. Feeding mechanism adopts stepless speed change of frozen,bending wood,such as eucalptus,oak wood,elm difficult peeling tree species have very good peeling effect.
4. High skin clarity,high productivity,small wooden damage.
Tree peeling machine working principle:
The logs,tree branches,such as wood into the cylinder,close the feed baffle,start the machine,the clockwise direction,wood inside the drum with the operation of the machine,make the skinning knife to wood on the strip.Close machine after 15 minutes,open the discharge ,then start the machine and run two minutes counterclockwise,skinning good wood can be automatically sent out from inside the drum.Net rate can reach 95%
Wood peeling machine,scope of application:suitable for parts for new cut soft wood and broadleaf timber peeling processing,also can complete part of the frozen material,dry skin treatment.
Tree peeling machine technical parameters:
Skinning range | 15-320mm | ||||
Peeling rate | Summer 95%,winter 80% | ||||
Wood loss | 3% | ||||
The allowed maximum bending wood | 8% | ||||
Power | 7.5KW*2, 3kw*1 | ||||
Discharge style | automatic discharging | ||||
Model | Motor(KW) | Capacity(t) | The spindle speed(r/min) | The number of operations | Overall size(mm) |
6800mm | 15 | 3-8 | 150 | 2-3 | 6800*1450*1700 |
Double roll 6800mm | 7.5*2 | 4-9 | 173 | 2-3 | 8800*1200*1600 |
12000mm | 22 | 6-10 | 150 | 2-3 | 12000*2000*2200 |
