| 原産地: | 中国(本土) | 形: | 平ら | 銘柄: | oem | タイプ: | 板ガラス | 機能: | 防弾ガラス, 熱吸収ガラス, 酸はガラスをエッチングした, 絶縁ガラス, 熱反射ガラス, 低いEガラス, 装飾ガラス | 構造: | 固体 | 技術: | ステンドグラス, 緩和されたガラス, コーティングガラス, 明確なガラス, 薄板にされたガラス | 0.38ミリメートルブルーpvbフィルム中国: | ブルー |
包装

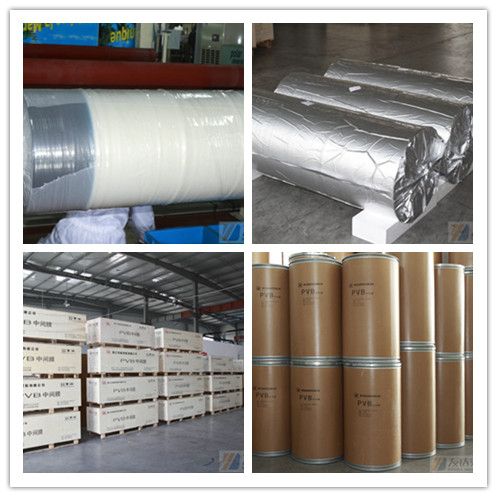

| 包装: | 各層のpvbフィルムであるべきで区切っpeフィルム、その後行うは真空パックでアルミ箔に入れ木製カートンまたはシリンダー。 |
仕様

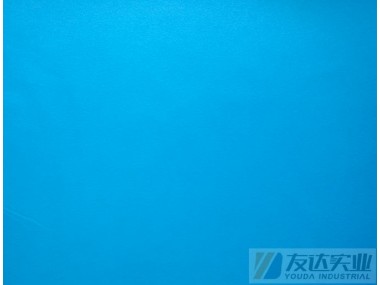

0.38mm Blue PVB Film China

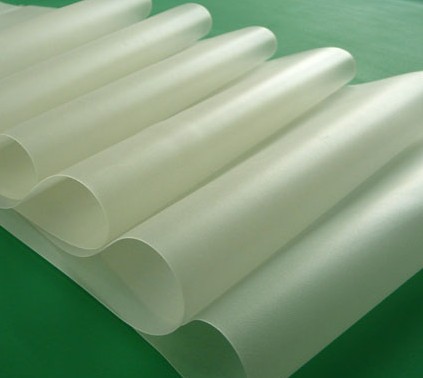

Product DescriptionPVB film is a macromolecule material coming from Polyvinyl Butyric resin together with DHA plasticizer. PVB film is normally 0.2mm to 2mm thick and it can agglutinate tightly with inorganic glass.
PVB film is mainly used in laminated glass that presses a layer of PVB film between two pieces of glass. Laminated glass is widely used in areas such as architecture and automobile.
PVB Film Properties:
- Safety
- Penetration Resistance
- Light Control
- Anti-ultraviolet
- Soundproof
Technical Details
Item | 0.38mm | 0.76mm | ||
1.Appearance |
| |||
1.1 Appearances | Achromatic or slightly yellow clear film, smooth surface without scar or crease | |||
1.2 Dotted sundries and air bubbles | ||||
≤0.05mm2
>0.05mm2 | Allowed to exist separately but not to exceed 10 places per roll | |||
Not exceeding 8 places per roll | Not exceeding 10 places per roll | |||
| ||||
2. Size |
| |||
2.1Thickness(mm) | 0.38±0.02 | 0.76±0.02 | ||
2.2Uniformity | Horizontal thickness warp should not exceed 15μ at a distance of 25mm; Horizontal thickness warp should not exceed 20μ at a distance of 50mm; | |||
2.3Length tolerance(m) | 0-5 | 0-2 | ||
2.4Width tolerance(mm) | 0-20 | |||
3.Moisture content(%) | 0.4-0.6 | |||
4.Tensile strength(MPa) | ≥20.0 | |||
5.Rupture extending rate(%) | ≥200 | |||
6.Haze(%) | <0.4 | |||
7.Shrinkage rate(60°C/15min)(%) | ≤10 | |||

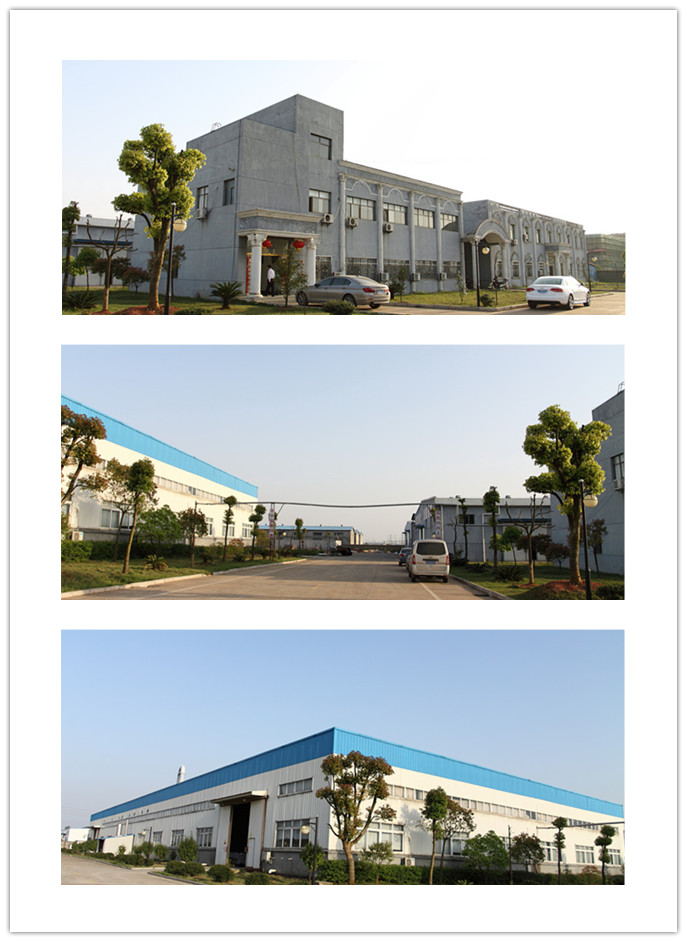

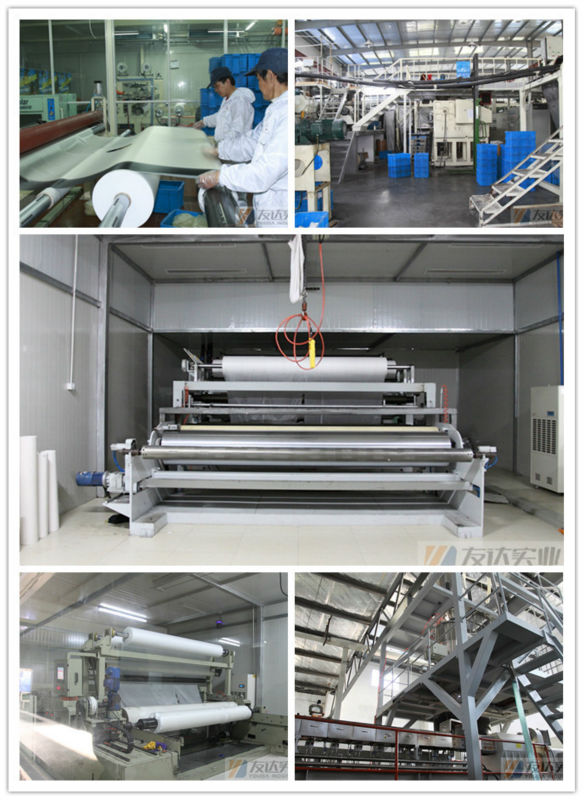

Factory Images
