原産地: | 中国(本土) | 銘柄: | leenol | モデル番号: | カスタム花崗岩プレート | タイプ: | 花崗岩 | 石名: | 黒御影石 | 色: | 黒 | 色: | 黒 | サイズの定盤: | さまざまなサイズ | サイズカスタマイズすることができる: | はい | 素材: | 済南黒(花崗岩) | 精密級: | レベル1。レベル0。レベル00、レベル000 | 比重: | 2970〜3070キログラム/m3 | 圧縮強度: | 245〜254N/m㎡ | 弾性モジュラス: | 1.27〜1.47 n/m㎡ | リニアexpandsibility: | 4.6 × 10〜6 ℃ | 水吸収: | < 0.13% |
包装
包装: | 精密御影石定盤パッキング: ウッドボックス |
仕様
Good quality and High Precision custom granite plate
The discrption of custom granite plate
- Lowest tempersture coefficient, least responsive to temperature changes.
- Moisture and corrosion free, no rusting, no oiling, will not stain or discolor.
- Practically maintenance free, fast easy to clean.
- Smooth ball-bearing surface.
- Resists dust and abrasives, non-magnetic.
- Grade 00 (0.003xL+2.5)/2μm
- Grade 0 (0.003xL+2.5)μm
- Grade 1 (0.006xL+5)μm
size(mm) | straight line or flatness of working face | Parallelism between working face | Side of the perpendicularity of the working face | |||
Precision grade μm | ||||||
00 | 0 | 00 | 0 | 00 | 0 | |
500×100×40 | 1.6 | 2.6 | 2.4 | 3.9 | 8 | 13 |
750×100×40 | 2.1 | 3.5 | 3.2 | 5.3 |
|
|
1000×120×40 | 3.0 | 5.0 | 4.5 | 7.5 | 15 | 25 |
1200×120×40 | 34 | 6.5 | 5.5 | 10 | 17 |
|
1500×150×60 | 4.4 | 7.4 | 6.6 | 11.1 |
|
|
1600×150×60 | 4.4 | 7.4 | 6.6 | 11.1 | 22 | 37 |
2000×200×80 | 5.4 | 10.0 | 8.1 | 13.5 | 27 | 45 |
2500×200×80 | 7 | 13 | 10.5 | 20 |
|
|
3000×200×100 | 8 | 16 | 12 | 24 |
|
|

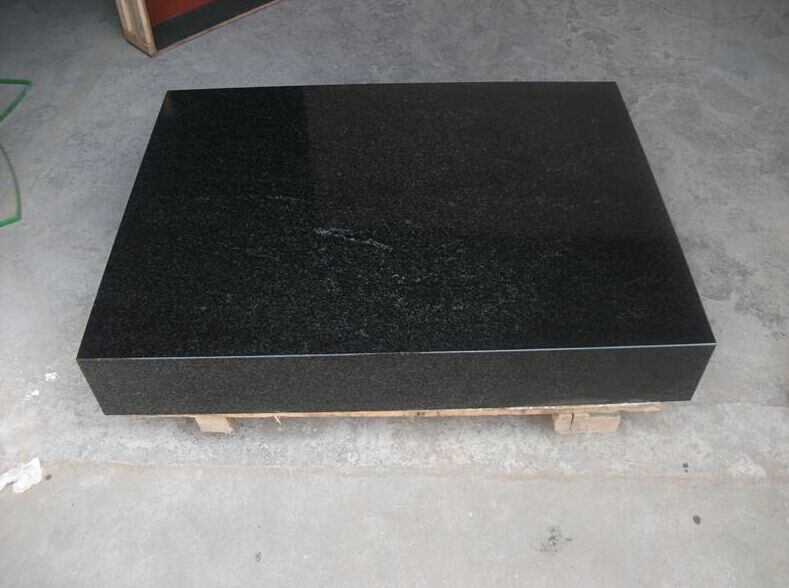

Note : Other size can be customized . The Picture of custom granite plate : For futher info ,pls feel free contact us .
