| 原産地: | 中国(本土) | 銘柄: | meyi | モデル番号: | G-0908-B | 原料: | 韓国ペットシート | サイズ: | 1220 * 2440ミリメートル | 厚さ: | 3〜12ミリメートル | アプリケーション: | 壁、スライディングドア、partion | 色: | 変えることができるでたくさんの色 | タイプ: | 他の造園石 | 形状: | カスタム | サービス: | oem、odm | 密度: | 1.2グラム/ cm 3 | 証明書: | sgs、rohs |
包装
| 包装: | 木製パレットポリフォームと内側、35ピース/パッキング;パッキングサイズ: 1220*2440ミリメートル |
仕様
G series sheet
Inonovative style of G series
High performance PETG raw material is used for G series.Besides,light textiles
metal,paper,Plants and other unique material are embedded in the process of hot melting.
With outstanding themoforming performance.G series sheet can be made in all different kinds of shapes.
Features:
15-20times stronger tenacity than comman acrylic,
weight is only half of glass
resistance to impact beyond the glass 42 times.
Excellent weather resistance
Add UV stability coating,can used for outdoors.
Environmental friendly
Using the uniform environmental friendly material meeting
the regulatory requirements for food contact management
low flammable and selfextinguishing can be recycled.
Wide range of design style and perform ability
Colorful style texture interlayer and infinite usability of surface
effect broaden and solve the feasibility and potential in the design to
experience the advantages of G series sheet
Specification:
Standard size:1220*2440mm
Thaickness:3-20mm
Color&plants:customized
Package:wooden case
Physical technicial parameter of the products of MEI YI
Propertise | Test method | Unit | result |
Density | ASTM D1505 | g/cm3 | 1.27 |
24 hr immersion | ASTM D570 | % | 0.2 |
Rockwell | ASTM D785 | R-scale | 116 |
Tranlucency | ASTM D1003 | % | 91 |
UI ignitability graduation | UL94 | - | V2 |
Notched @ 23°c (73 °F) | ASTM D256 | J/m(kgf.cm/cm)ft.lbf/in | 90(9.2)1.7 |
1.27mm/min(0.05inch/min) | ASTM D790 | Mpa(kgf/cm2)psi | 80(820)11600 |
1.27mm/min(0.05inch/min) | ASTM D790 | Mpa(kgf/cm2)psi | 2150(22000)312000 |
50mm/min(2inch/min) | ASTM D638 | Mpa(kgf/cm2)psi | 53(540)7700 |
50mm/min(2inch/min) | ASTM D638 | Mpa(kgf/cm2)psi | 26(265)3800 |
50mm/min(2inch/min) | ASTM D638 | % | 5.0 |
50mm/min(2inch/min) | ASTM D638 | % | 70 |
Application:

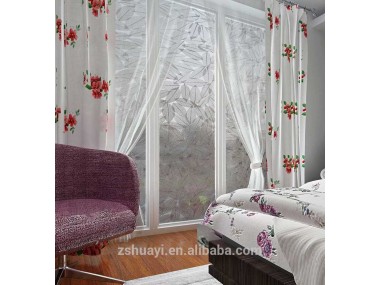

Decoration walls, doors, windows,bethrooms,partitions,ceiling, receiption desk, furniture,
desk top surface,background wall, all light through effect.
