| 原産地: | 中国(本土) | 銘柄: | Likeair | コーティング: | PVDF |
包装
| 包装: | 木 |
仕様

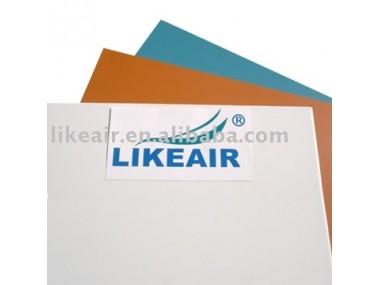

Aluminum Composite Panel Specifications:
1. Standard: according to GB/T 17748-1999 standard
2. Material:
a) Front: aluminum alloy sheet coated with fluoro-carbon resin
(PVDF) and polyester resin (PE) roasting painting
b) Core: nontoxic polyethylene
c) Back: aluminum alloy sheet coated with polyester resin painting
d) Surface finish: treated with PVDF and PE resin rolling roasting
coating
e) Aluminum alloy sheet thickness: 0.1mm, 0.12mm, 0.15mm, 0.2mm,
0.3mm, 0.4mm, 0.45mm, 0.5mm
3. Dimensions:
a) Thickness:2mm 3mm, 4mm 5mm 6mm
b) Width:1000mm 1220mm 1250mm 1500mm 1570mm etc
c) Length: 2440mm, 3200mm, 4000mm,5000mm (max: 6 meter)
d) Standard size: 1220 x 2440mm
f) Non-standard sizes and special colors are available, according to customers' requests
4. Features
1) Weather resistance
2) Fireproof (available)
3) Even coating
4) Easy maintenance
5) Excellent torsion strength
5. Application scope:
1) Building exterior curtain walls
2) Decoration and renovation additions for old buildings
3) Decoration of interior walls, ceilings, bathrooms, kitchens and balconies
4) Shop door decorations
5) Advertisement board display platforms and signboards
6) Wallboards and ceilings for tunnels
7) Industrial materials, materials for vehicles and boats
6. Packing: bulk, wooden case
