| 原産地: | 中国(本土) | 銘柄: | xym | モデル番号: | u150 |
包装
| 包装: | パレット |
仕様

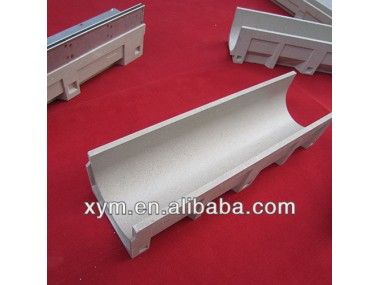

Drain Channel for sports field EN1433 U-Shape U100 C250 250kN
| Load Class: | Group 3, C250(250kN): Kerb sides and non-trafficked areas of hard shoulders and similar; Kerb units are always Group 3. |
| Applications: | - driveway of small vehicle |
| - kerb | |
| Product No.: | CMU150-20230PC |
| Material: | Polymer concrete |
| Wall Thickness: | 20mm |
| Internal Width: | 150mm |
| Overall Width: | 190mm |
| Internal Height: | 210mm |
| Overall Height: | 230mm |
| Theoretical Weight: | 26.5kg |
| Technical Standard: | 305/2011/EU-CPR(EN1433) |
| ISO: | ISO9001-2008 |
| Optional Accessories: | |
| (1) Trafficked Seat: | - polymer concrete |
| (2) Grating/Cover: | - galvanized steel |
| - stainless steel | |
| - size 500*180*20mm | |
| - model# U150-ZTC | |
| (3) Dirt Bucket: | polymer concrete Dirt Bucket |
| (4) end cap: | polymer concrete end cap |
| (5) locking device: | - metal fastner |
| - Anti-theft bolt | |
| Main Features: | - long life |
| - never blocked | |
| - cheapest maintenance | |
| - high loading | |
| - environment protection | |
| Construction Method: | |
| (1)Open drainage channel: | - Concrete C25/C30 |
| - concrete cushion X=150mm | |
| - concrete cushion Y=150mm | |
| - ballast cushion | |
| - mortar layer | |
| - surface layer | |
| (2)Slot drainage channel: | - Concrete C20/C25 |
| - concrete cushion X=150mm | |
| - concrete cushion Y=100mm | |
| - concrete cushion Z=150mm | |
| - ballast cushion | |
| - mortar layer | |
| - surface layer |
QUALITY CERTIFICATE: ISO9001-2008
MORE CHOICE
| Product Name: | Polymer concrete drainage channel |
| Material: | Polymer concrete |
| Size: | MU100, MU150, MU250, MU300, MU400 |
| Load Class: | A15, B125, C250, D400, E600, F900 |
| Grating: | Galvanized steel grates with side slot or mid-slot |
| Spheroidal graphite cast iron with many designs | |
| Dirt bucket: | Matched with channel |
