| 原産地: | 中国(本土) | 銘柄: | xinlin | モデル番号: | T70-1/b T75-3/b t89/b t90/b t114/b | タイプ: | エレベーター | ブランド名: | xinlin | 長さ: | 5メートル | タイプ: | エスカレーター部品 |
包装

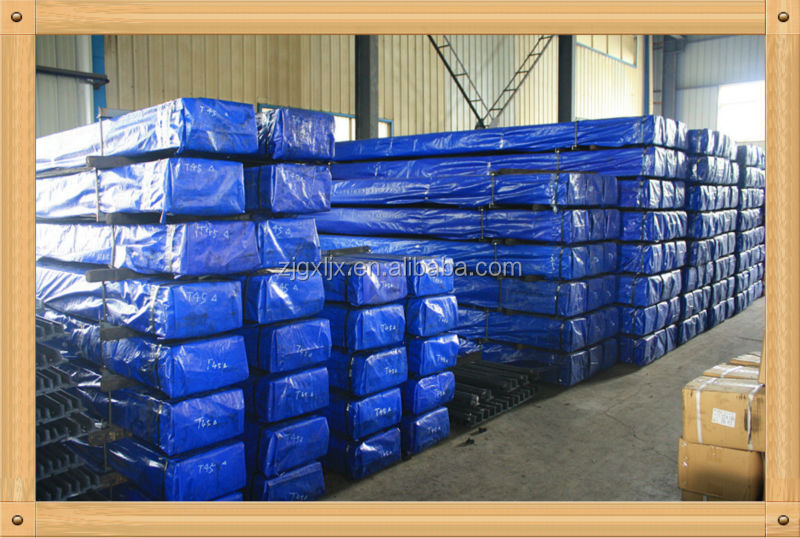

| 包装: | 1) 20-50ピースガイドレールあたりbaleまたはバンドル。 2)パッケージ:私たちは使用シース保護エンドのガイドレールと鉄板も保護ガイドレール。をコーティングでプラスチック布。 3)パッケージを保つことができる商品安全。 |
仕様

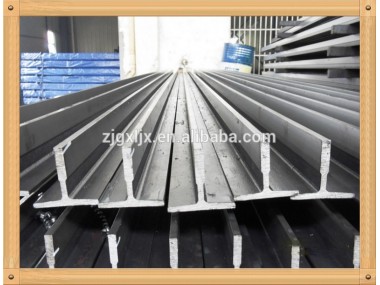

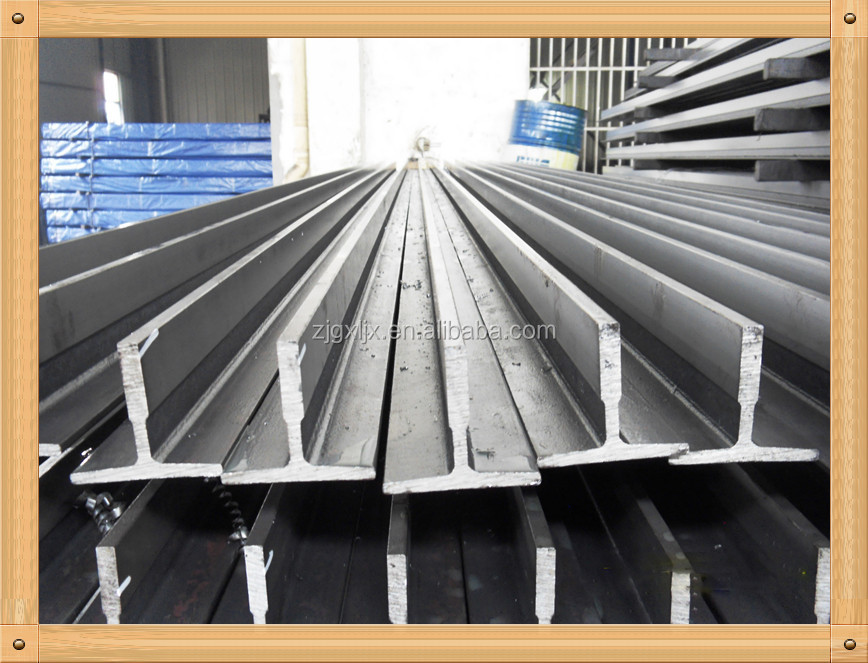

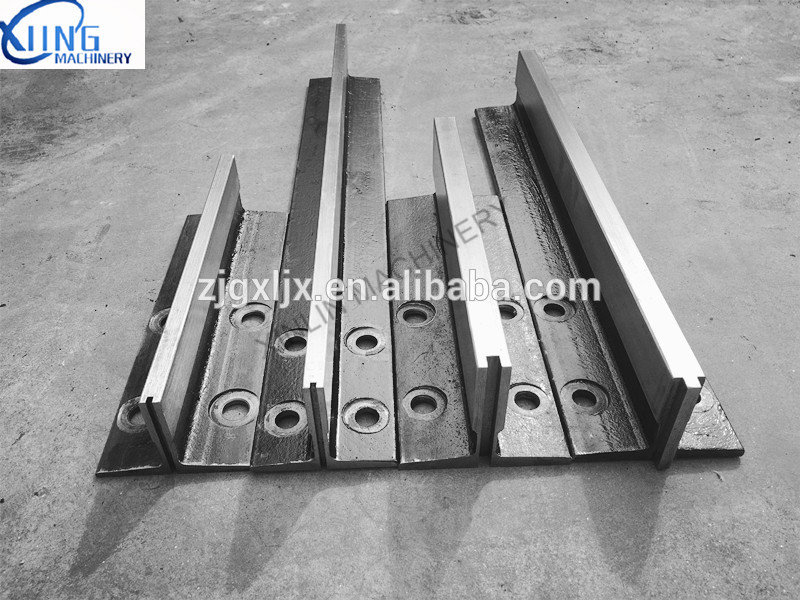

elevator guide rail for factory

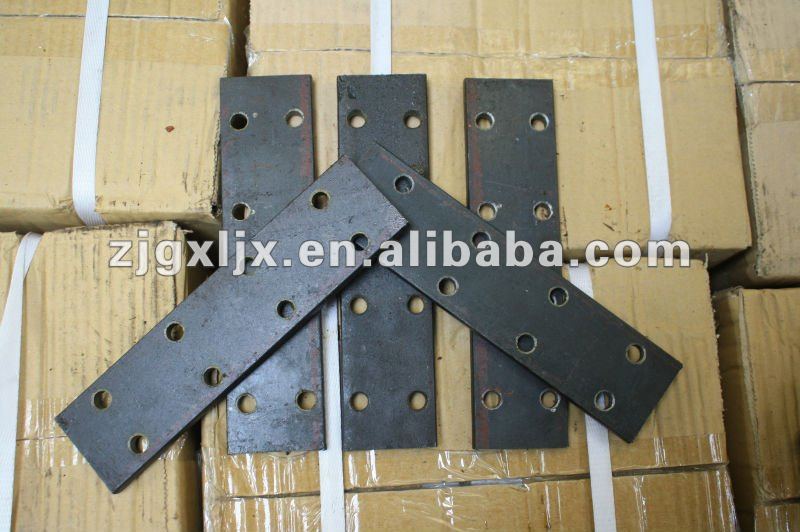

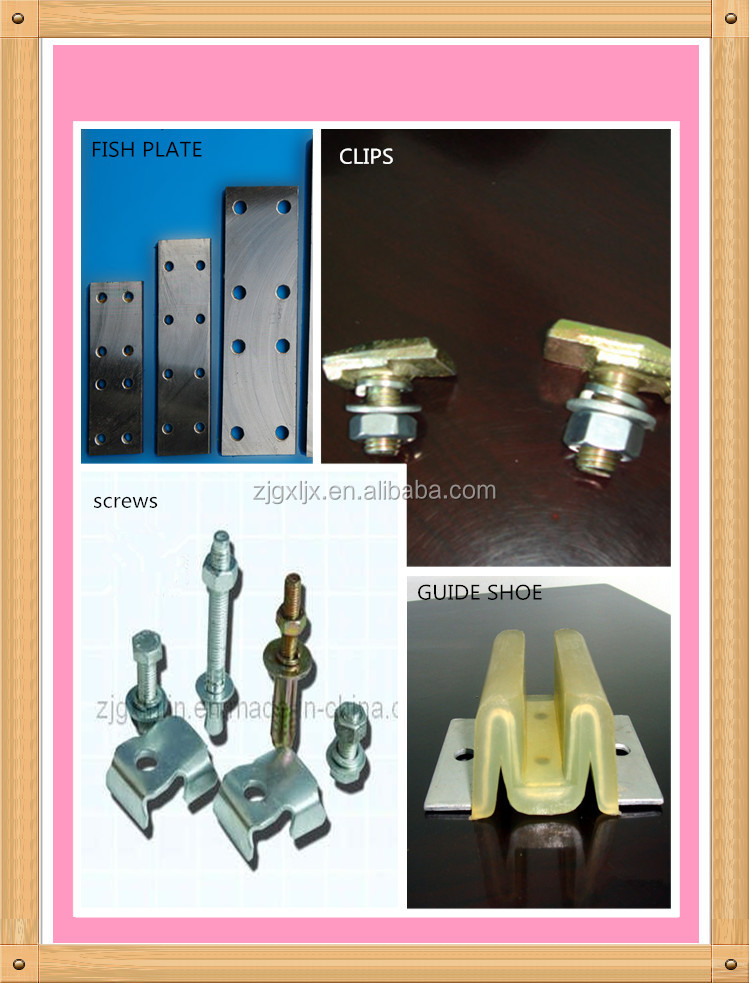

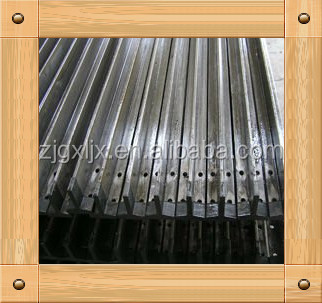

we offer varies of T type elevator guide rail ,fishplate ,clips and other elevator accessories. The main products are like T45/A, T50/A, T70-l/B, T78/B, T82/B, T89/B, T90/B, T114/B, T127-2/B, etc. At the same time, we can provide hollow guide rails, such as TH3,TH3A,TH5,TH5A and other accessories.
| Zhangjiagang Xinlin Machinery Co.,Ltd | |||||||
| Size & Tolerance of Guide rail(mm) | Size & Toerance of Guide rail fishplate(mm) | ||||||
| Type/Tolerance | b1 | h1 | k | Type/Tolerance | L1 | b2 | V |
| T45/A | 45 | 45 | 5 | T45/A | 160 | 50 | 8 |
| T50/A | 50 | 50 | 5 | T50/A | 200 | 50 | 8 |
| T70/B | 70 | 65 | 9 | T70/B | 250 | 70 | 10 |
| T75-3/B | 75 | 62 | 10 | T75-3/B | 250 | 70 | 10 |
| T78/B | 78 | 56 | 10 | T78/B | 250 | 70 | 10 |
| T89/A(/B) | 89 | 62 | 16 | T89/B | 216 | 80 | 10 |
| T90/B | 90 | 75 | 16 | T89/A(/B) | 305 | 90 | 13 |
| T114/B | 114 | 89 | 16 | T114/B | 305 | 90 | 13 |
| T127-1/B | 127 | 89 | 16 | T127/B | 305 | 120 | 18 |
| T127-2/B | 127 | 89 | 16 | T127-1/B(2/B) | 305 | 130 | 18 |
| TH3 | 75 | 55 | 10 | TH3 | 220 | 72 | 2.5 |
| TH5 | 87 | 60 | 16.4 | TH5 | 350 | 87 | 4 |
| TH3A | 78 | 60 | 16.4 | TH3A | 200 | 78 | 4 |
| TH5A | 78 | 60 | 16.4 | TH5A | 200 | 78 | 4 |
| Remark: | |||||||
| All our material quality according to Q235A. | |||||||
| We produce our elevator guide rail under international standard ISO7465. | |||||||
| We are able to manufacture according to your specific instructions and help you selec appropriate products and specification for you. | |||||||
