| 原産地: | 中国(本土) | 銘柄: | rongda | モデル番号: | RD-V80 | 印刷方法: | 熱ライン | 印刷速度: | 50ミリメートル/秒( max) | 解像度: | 203 dpi (8ドット); 576ドットあたりライン | 印刷幅: | 72ミリメートル | 紙タイプ: | 通常の感熱紙(幅: 80±0。5ミリメートル、diameter≤33mm) | インタフェース: | シリアル( rs232とttl); 485インタフェース; usb;ブルートゥース |

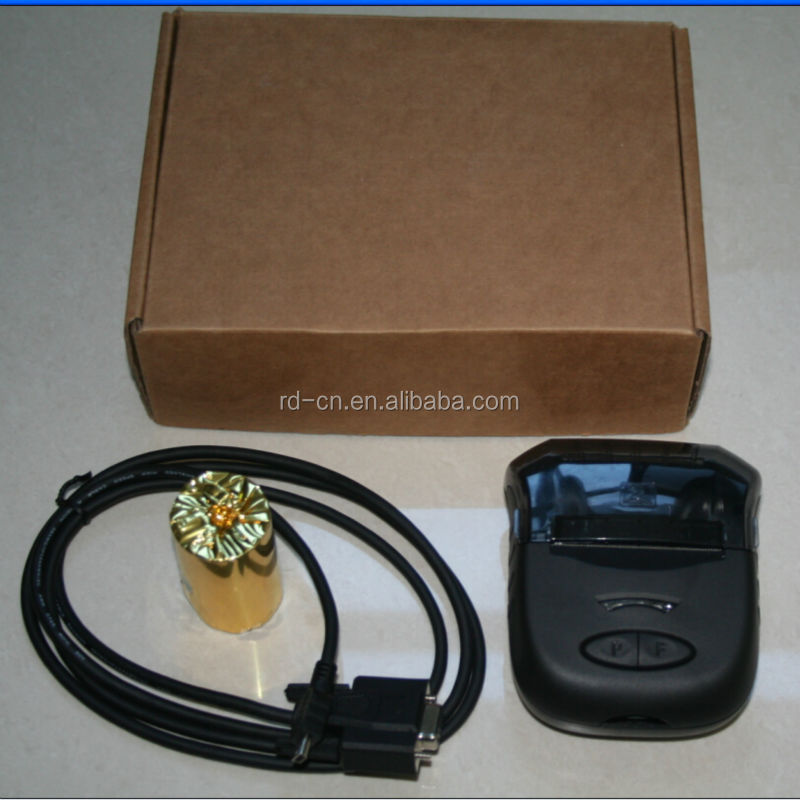

包装

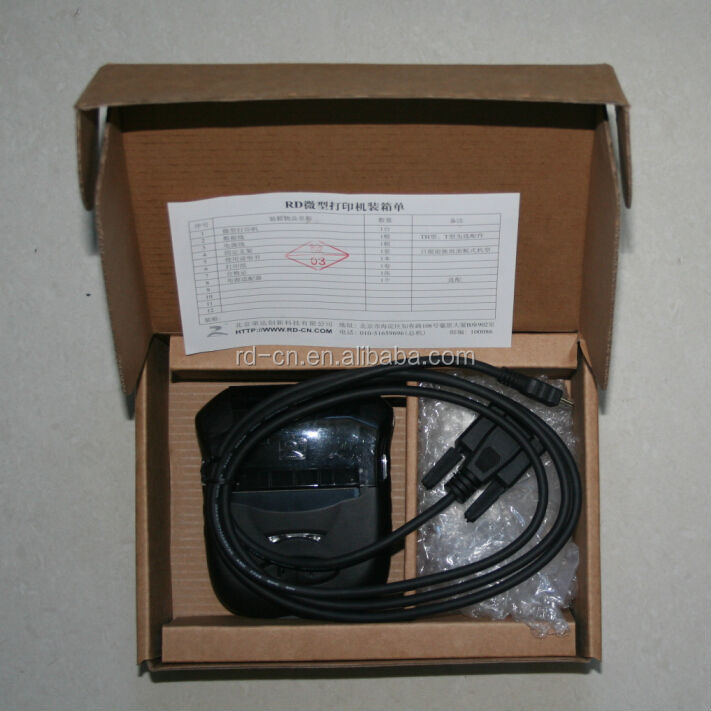

| 包装: | 1セットに泡で小さなボックス、10/20セット1カートン |

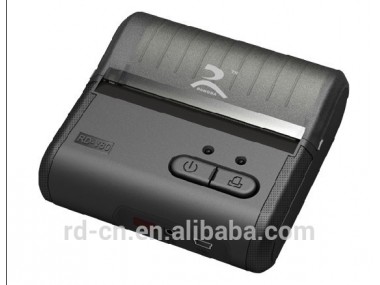

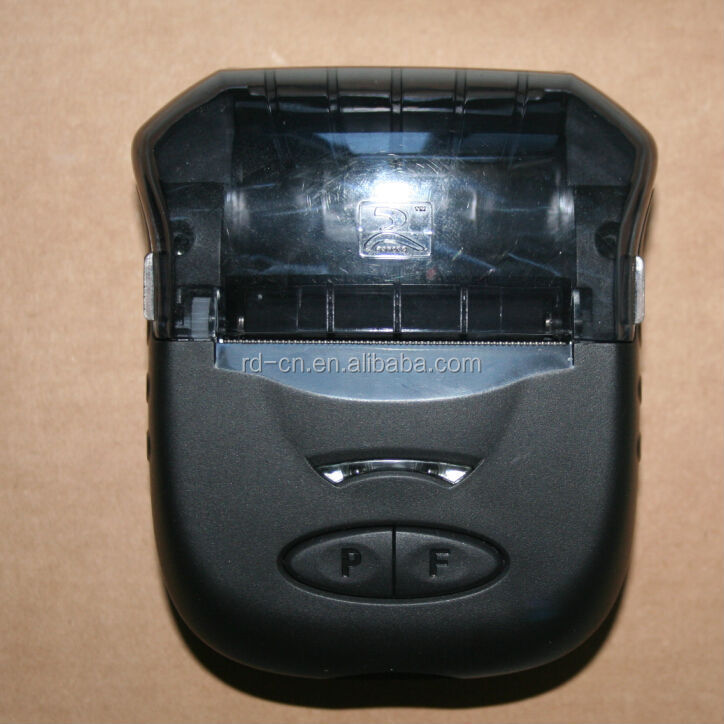

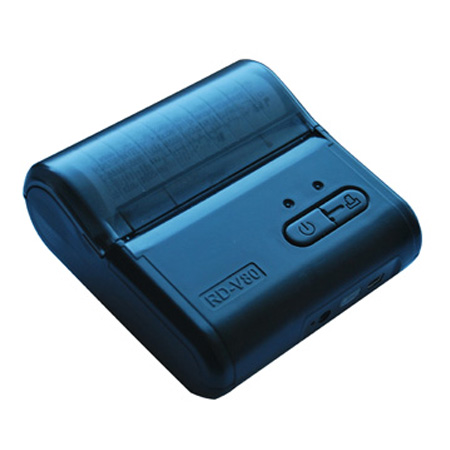

Bluetooth Mobile Android micro portable printer
Scope of application
- The mobile police system
- Tobacco distribution system
- Utility meter reading system
- Mobile office system / mobile logistics system
- For a corollary equipment of the portable instrumen system
Description details
| printing method | thermal line printing |
| printing speed | 50mm/s (Max) |
| working time | 30-100m under the density 12.5% |
| resolution | 8 dots , 576 dots per line |
| effective print width | 72mm |
| print font (ANK) | 5X7, 6X8, 12X24, 8X16 |
| print font (Chinese) | 24X24, 16X16 |
| graphics | support diffrent density point figure and bigmap download |
| barcode | one-dimensional( UPC-A, UPC-E, EAN-13, EAN-8, CODE39, ITF25, CODABAR, CODE93,CODE128 etc) and two-dimensional ( QRCODE etc) |
| paper end sensor | yes |
| overheating detection | yes |
| electricity shortage detection | yes |
| alarm buzzer | yes |
| black mark location | yes |
| Auto sleeping | yes |
| interface | serial (RS232 and TTL); 485 interface ; USB ; bluetooth |
| buffer | 8K-20K |
| power supply | rechargeable li-on battery 700mah / 7.4V . |
| TPH lifetime | 50km |
| paper type | thermal paper : width: 80±0.5mm,ø≤33mm |

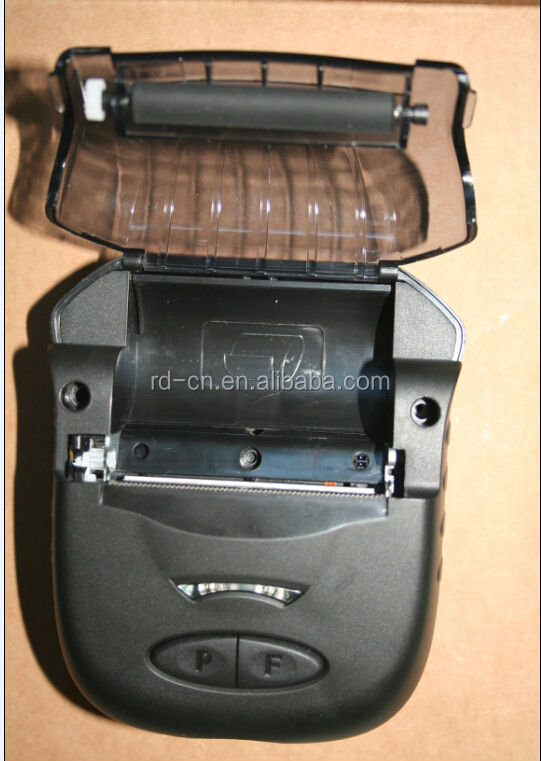

| paper loading way | clam shell, easy paper loading |
| cutting paper way | manual |
| Operating Temp./ Humidity | Temp.:0-50°c ; Humidity:20-80% (RH) |
| Storage Temp./ Humidity | Temp.:-20-60°c ; Humidity:10-90%(RH) |
| weight | 220g (with bateries) |
| outline dimension (mm) | 101mm*100mm*39mm (L*W*H) |
