| パネルサイズ: | 『18.5- 65" | 原産地: | 中国(本土) | 適用: | 屋内、 モール、 ショップ、 小売店、 病院、 学校 | 銘柄: | scr | モデル番号: | Hd-680 | 応答時間: | 6.5ms | ピクセルピッチ: | 0.4845mm | アングル: | 160°/120°( h/v)- fullview | 最大分解: | 1080p | 色: | 16.7メートル | タイプ: | TFT | 明るさ: | 300cd/m*2- 500cd/m*2 | 対照の比率: | 1000: 1- 5000:1 | ワーキング·ライフ: | 50000h-60000h | 液晶画面: | サムスン/lg/au | 特徴: | アンドロイドwifilcdタッチスクリーンモニタ | 入力電圧: | 110-240vac |
包装
| 包装: | 抗- 衝撃や環境材料を保護するインナーブラケット用カートンボックス、 輸出用の木製ケース箱のパッキング。 |

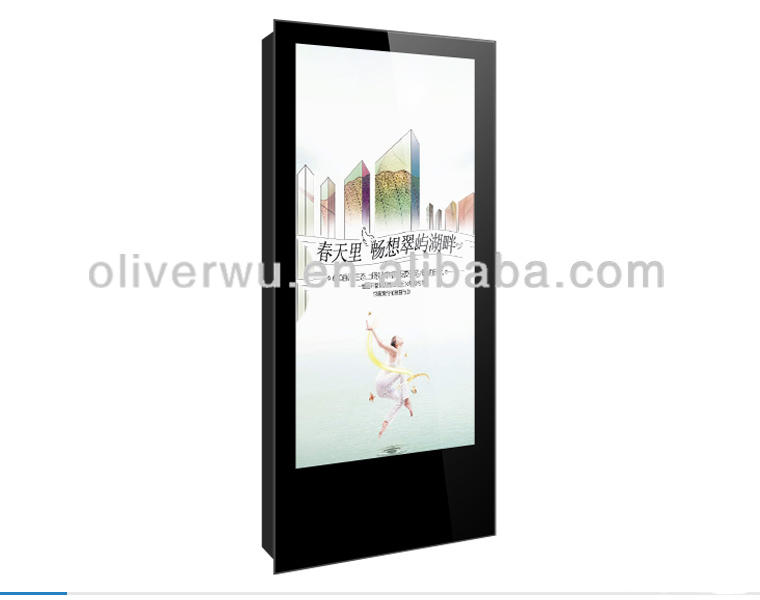

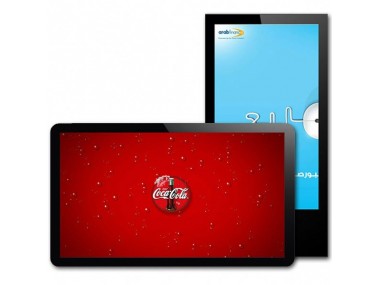

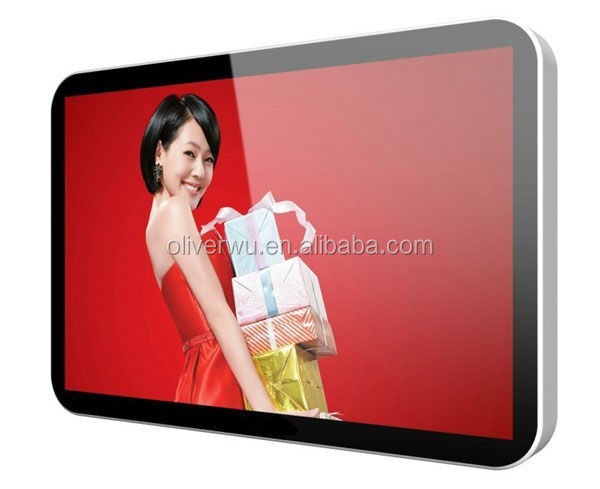

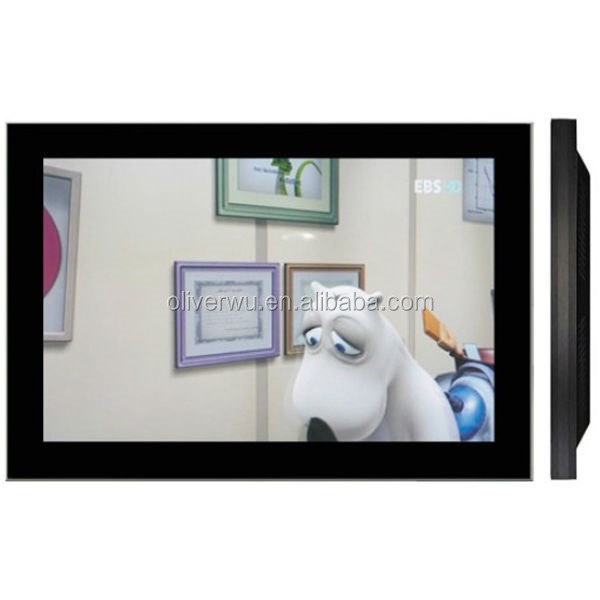

Super Slim! Wall Mounting android wifi lcd touchscreen monitor
Solution Specifications:
HD-680 High Definition advertising player, peer to peer digital output, as computer. And easy decode 1080P HD video, support more than 90% video formats, support TS, MKV and other HD video formats.
Operation: put the play data in USB or SD card, automatical & cycle play when power on.
Support Format:
Photo format:JPEG,BMP,PNG.
Video format:MPG,MPEG,DAT,MP4,AVI,VOB,TRP,TP,M2TS,TS,RM,RMVB,MKV,DIVX,MOTONJPEG,ASF,WMV,FLV.
Music format:MP3,AAC-LC,WMA.
Function:
l Automatical and cycle play when power on,play follow data name or playlist.
l 5 groups of automatic power on/off with volume can be set. Daily and weekly timer power on/off.
l Multiple time display mode.
l Support photo show time, and various slide modes can be set.
l Support photo + music/photo/video/music/all/playlist.
l Support playlist: play photo/video/music and subtitles in the specified time.
l Support one roll.txt can set on or off, multiple marguee color and back color.
l Support photo/video all repeat, single repeat, or not repeat.
l Support power resume function.
l Support USB high speed updat information, support USB upgrade function.
Other Function:
l Effect adjust: brightness, contrast, color, sharpness, backlight, noise reduction, video mode.
l Support rotate menu90/270/0/180 degree, support vertical LCD products.
l Support check the data of photo or video.
l AD insert: 1-60 minute, up to 9 AD can be insert.
New function:
Can be set split-screen 1 to 10 sections for broadcasting video and photos, free to set the sections.
(request this function should be informed when ordering).
Product Data:
| Specification | 18.5" | 19" | 21.5" | 26" |
| Outframe Size | 490*320*18+28mm | 490*320*18+35mm | 540*333*18+28mm | 660*390*18+25mm |
| LCD Screen | AU TFT/LED | BOA TFT | LG TFT/LED | LG LED |
| Display Scale | 16:9 | 16:10 | 16:9 | 16:9 |
| Display Area | 413*234mm | 408*255mm | 476*268mm | 575*323mm |
| Screen Resolution | 1366*768 | 1440*900 | 1920*1080 | 1920*1080 |
| Output resolution | 1080 | 1080P | 1080P | 1080P |
| Viewing Angle | Fullview | Fullview | ||
| Brightness | 300cd/m* | 300cd/m*2 | 300cd/m*2 | 500cd/m*2 |
| Contrast | 1000:1 | 1000:1 | 3000:1 | 2000:1 |
| Colour | 16.7m | 16.7m | 16.7m | 16.7m |
| Working Life | 50000h | 50000h | 60000h | 60000h |
| Power | 15-30W | 25W | 15-40W | 25-50W |
| Voltage | 110-240 | 110-240 | 110-240 | 110-240 |
| Memory Card | 4G | 4G | 4G | 4G |
| Net Weight | 6kgs | 6.5kgs | 7kgs | 7.5kgs |
| Carton Size | 57*40*10cm | 57*40*10cm | 61*40*10cm | 75*47*11cm |
| 32" | 42" | 46" | 55" | 65" |
| 803*496*30+23mm | 1028*620*30+35mm | 1120*673*30+35mm | 1318*780*30+25mm | 1560*927*40+30mm |
| AU/LG led | Samsung/LG led | Samsung/AU led | LG/AU led | AU led |
| 16:9 | 16:9 | 16:9 | 16:9 | 16:9 |
| 697*392mm | 930*523mm | 1018*572mm | 1209*680mm | 1428*804mm |
| 1920*1080 | 1920*1080 | 1920*1080 | 1920*1080 | 1920*1080 |
| 1080P | 1080P | 1080P | 1080P | 1080P |
| Fullview | Fullview | Fullview | Fullview | Fullview |
| 500cd/m*2 | 500cd/m*2 | 450cd/m*2 | 500cd/m*2 | 500cd/m*2 |
| 2000:1 | 5000:1 | 4000:1 | 5000:1 | 5000:1 |
| 16.7m | 16.7m | 16.7m | 16.7m | 1.07B |
| 50000h | 60000h | 60000h | 60000h | 60000h |
| 49-60W | 100-130W | 110-140W | 140-160W | 140-160W |
| 110-240 | 100-240 | 110-240 | 110-240 | 110-240 |
| 4G | 4G | 4G | 4G | 4G |
| 14.5kg | 25kgs | 43kgs | 60kgs | |
| 90*59*18cm | 113*72*18cm | 122*769cm | 14590*2 | 1* |
Material Description:

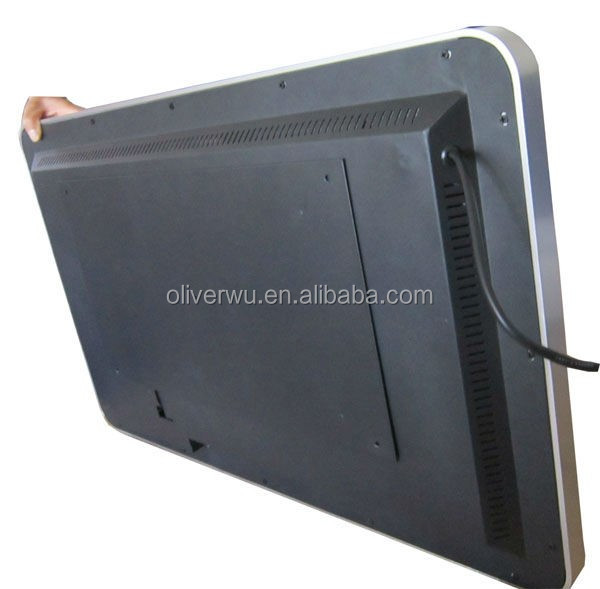

Material: metal case/aluminium frame (oxidation silver color)
Surface: 2mm-5mm crystal glass(black edge)

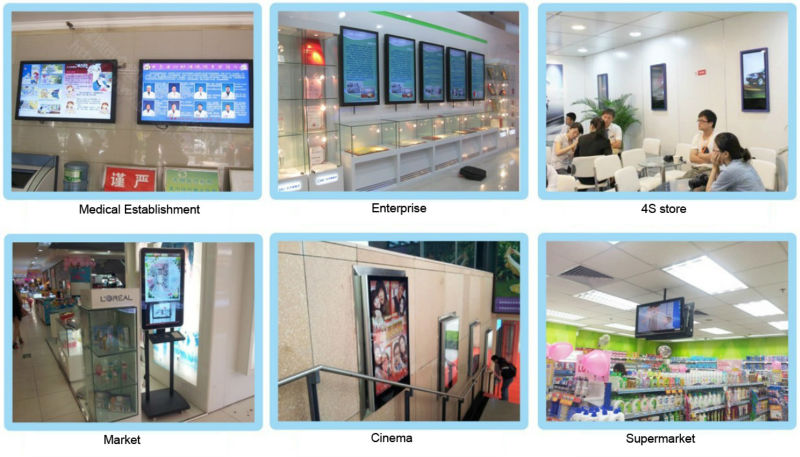

Applicable scope:
