| 原産地: | 中国(本土) | 銘柄: | ホーク | モデル番号: | 1212 | 色: | ホワイト/ブルー |
包装
| 包装: | 木製ケース |

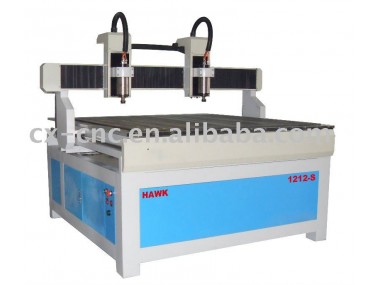

Engraving machine JA1212
Using industry:
Advertising signs,logo making,acrylic cutting,plastic molding,decorative products,a variety of materials,production fo advertising and others decarations.
Model Features
1.The body of the equipment is made with welded,it’s too firm to be out of shape.
2 water /windy cooling can be choose ,high precision and soomth operation,high efficiency,long sevice life,can work continuously for long time,adaptable.
3.Compatible type3,wentai,artcam and other softwares.
4.selec the advanced DSP operating system,completely off-line work,do not take up any computer resource.
Main technical parameters
Table Size | 1300*1300mm |
X.Y.Z axis working area | 1200*1200*100mm |
Resolutions | 0.025mm |
Repeat accuracy | 0.05mm |
Spindle power | 1.5KW(water) |
Spindle speed | 24000rpm |
Max speed | 12000mm/min |
Max cutting speed | 10000mm/min |
Working Voltage | AC220V/50-60HZ 3phase |
Software | Type3 software/France |
Controls | Pcimc-53c |
Command Code | G code |
Table structure | Aluminum profile |
Drive motors | stepper |
