• CNCのルーターの広告! 200*1800mm-広告用スクリーン
    商品番号: 12332125
    仕入れる商品へのお問い合わせについて、
    お電話の場合:スタッフに商品番号をお伝えください。
    商品の詳細

    原産地: 中国(本土) 銘柄: QX モデル番号: QX1218
    モデル: QX1218 仕事域: 1200*1800mm 制御システム: weihong/DSP
    ソフトウェア: type3 紡錘: 水冷却の紡錘 定常電圧: 段階的なシステム
    ドライブモーター: 段階的なシステム 選択: 真空システムおよび集じん器 CNCのルーターの広告: 中国CNCのルーター
    円形軌道: 速いCNCのルーター

    包装

    包装: 標準的な合板の箱

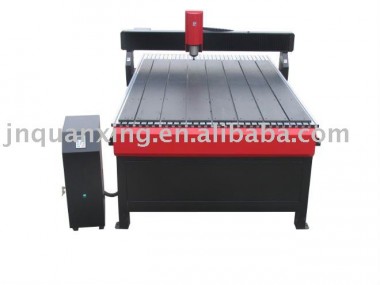

     Advertising CNC Router-----QX1218



    Technical parameter:

    Model

    QX1218

    X,Y working area

    1200×1800mm

    Z working area

    100mm

    Table size

    1300×2680mm

    Max. Speed

    6m-7m/min

    Power (not include the spindle)

    550w

    frame structure

    steel structure

    Working delicacy

    0.01~0.025mm

    Repositioning Accuracy

    0.05mm

    X,Z Structure

    round orbit, ball screw

    Y Structure

    Hiwin linear guide rail, ball screw

    Control system

    Weihong control system (computer control).

    (option: DSP control system with USB interface)

    Spindle Power Motor

    1.5Kw water cooling spindle (option: 2.2KW, 3KW,4.5KW)

    Spindle rotating speed

    0-24000rpm/min

    Drive Motors

    Stepper system

    Working Voltage

    AC220V/50Hz

    Command Language

    HPGL,G cord*.u00*.mmg*plt

    Running Environment

    Temperature: 0 ~ 45
    Relative humidity: 30% ~ 75%

    Surrounding for software

    Windows98/2000/xp

    options

    mist cooling system and flume

    Vacuum system and Dust collector

    Performance:

    Ø         lengthen the X and Y axis, can be used for large scale material processing. Adopted international leading parts, cost performance is high.

    Ø         They are fitted with steady domestic-made water-coolant spindles. High powered, high rigidity. Well adapted to engrave and cut on Density board, solid wood panel, also engrave 3D archaistic furniture.

    Ø         It uses the double motors to drive the machine and uses the double axis to transmit the machine smoothly. So it is guaranteed not to out of shape and shake when it works for a long time.The traveling speed can reach 35m/min. high-speed cuting speed can reach 25m/min.



    Field of application:

    Advertising industry, seal industry, craft and gift, art mould, wood working, mould etc. applicable material including on arylic, double-color board, PVC, ABS board, stone, imitation stone, metal, Aluminum Mold etc.

    l         Woodwork industry: sewing machine table, machine cabinet panel, sporting equipment, wooden door etc.

    l         Advertising industry: engrave and cut various signboards, marble, copper, character mold, font. And various metal sign, brand.

    l         Craft & gift industry: engrave various word or graph on the souvenir and handicraft, ironwork engraving, dials.

    l         Mould industry: architecture, Gilt membrane, electric machinery, High frequency mold, moulding on shoes, badge, embossed mould, biscuit, candy, chocolate mould

    l         Stamp industry: it is easy and convinent to seal on various materials such as ox horn, plastic, organic board, wood etc.
