| 原産地: | 中国(本土) | 銘柄: | led-ヒーロー | モデル番号: | Hero-P12 | 証明書: | ce、ul、rohs、iso9001 | アプリケーション: | 使用のためのledディスプレイ | ピクセルピッチ: | 12ミリメートル | プロテクターシーツ: | プラスチック | ledライト: | 1r1g1b | モジュールサイズ: | 192ミリメートル* 192ミリメートル | 屋内または屋外: | 屋外led dipslay |
包装
| 包装: | 飛行およびshakeproof用木製ケースp12grbled街路広告画面 |
p12 GRB led street advertising screen
parameter of
p12 GRB led street advertising screen your refrence
Part Number | HERO-ICS-600P18.75 |
Resolution | 16(H)×16(V) |
Pixel Pitch | 12mm |
LED Configuration | 2R1G1B 1-BY-1 DIP |
Pixel Density | 6,944 pixels/ m2 |
Module Size | 192×192mm |
Cabinet Size | 960×960mm, 960×768mm, 768×768mm, etc. |
Driving IC | MBI5026 |
Driving Method | 1/2 Scan, Constant Current |
Weight | 58KG/sq.m. |
Mechanical Ratings | |
Hanging Weight Support | 2T |
Surface Flatness | Gap<0.5mm |
Optical Ratings | |
Brightness | >5,500cd/ m2 |
View Angle | 140°/90° |
Gray Scale | 8bits input, correction with 14bits |
Display COLOR | 16.7M |
Brightness Adjustment | 0~100% 10 level |
Power Supply | |
Operation Power | 90~260V 50~60Hz |
Max. Power Consumption | 1000W/ m2 |
Average Power Consumption | 350W/ m2 |
Control System | |
Control Mode | Synchronous display with control PC by DVI |
frame updat Frequency | 60~85Hz |
Screen Refresh Frequency | 300~1000Hz |
Gamma Correction | -5.0~+5.0 |
Support Input | Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI |
Control Distance | Ethernet cable<120m or Fiber Optic<10Km |
Support VGA Mode | 1024×768, 1280×1024, 1600×1200, 1920×1280 |
Brightness Correction | Pixel, Module, Cabinet |
Environmental | |
Operating Temperature | -20°~+60° |
Operating Humidity | 10~95% RH |
Operating Life | 100,000hours |
MTBF | 5000hours |
Protection Level | IP65 |
Out of Control Rate | <0.02% |

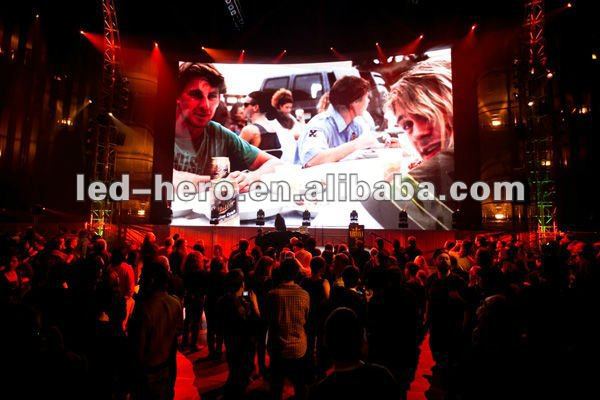

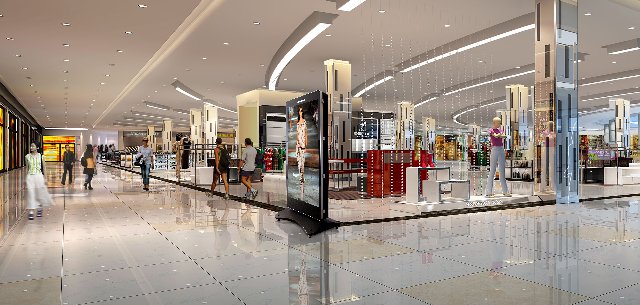

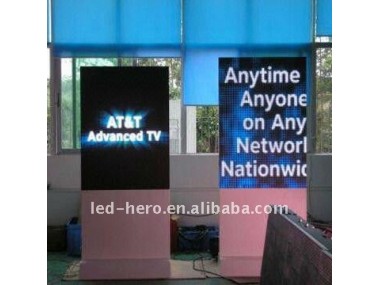

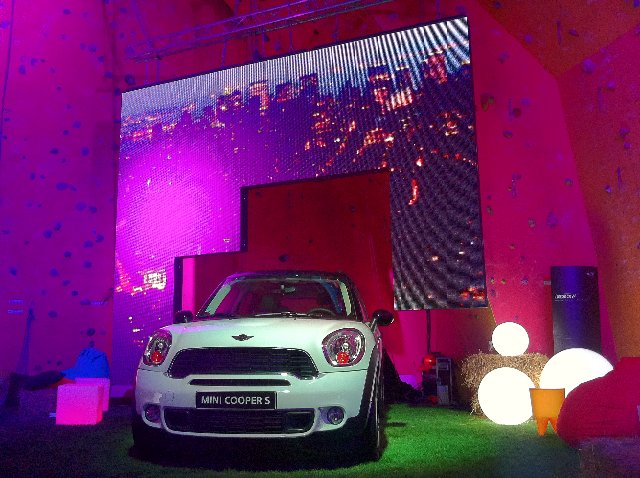

Application of p12 led module
The introduce of indoor led display
LED Full Color Display Screen, made of led light moudle, because of its bland color, high clear picture, it can be used in every location indoor, such as super market, executive floor, stadium, hotel etc. The display content could be changed anytime, and the purpose is quick and convenient release of recruiting, bulletin and slogan and company inside relevant information. Because it has long usage life span, so it spreads the information more effectively and advances the whole impression of units or companies etc.
Characteristic of indoor led display
Can show dynamic video frequency real time and locale hookup.
Can display video frequency signal of varies equipments.
Can compile facture and play through the computer.
Major used in dynamic advertisement information issuance system.
