| 原産地: | 中国(本土) | 銘柄: | dicolor |
包装
| 包装: | ledスクリーン用の木製ケース |
Indoor SMD led screen
1.Adopt PWM IC to achieve HD display effect with high refresh rate and gray scale, can be used in TV station easily.
2.Viewing angle up to H 150°/ V 150°, no image distortion and color cast from any angle within this range, satisfy people’s viewing effect from any corner.
3.Good color consistency of white balance, with true color, adopting color correction technology.
4.Adopting black SMD and black mask design to increase image contrast and layering a lot.
5.Splicing gap and flatness between cabinets less than 0.5mm, no module effect.

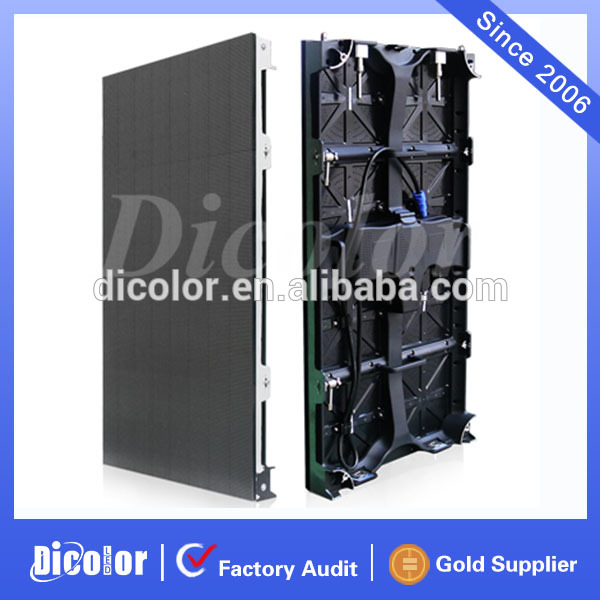

6.Double side maintenance structure design, module can be dismantled from front and back side, convenient for maintain.
7.Specialized structure provide feasibility of various mounting methods such as ground mounting, hanging mounting, embedded mounting.
8.Simple cabinet and fixed installed iron cabinet for choice.
| Item NO. | N-601 |
| Pixel Pitch | 6mm |
| LED Type | SMD3528 |
| Pixel Configuration | 1R1G1B |
| Driving Mode | 1/8 Scan |
| Driving IC | MBI5024 |
| Pixel Density | 27777/sqm |
| Module Resolution | 32*16 |
| Module Weight | 0.16Kg |
| Max Power | 690W/sqm |
| Average Power | 195W/sqm |
| Input Voltage | 220Vac |
| Brightness | 1800nits |
| Contrast | 800 |
| Best Viewing Distance | 20m |
| Refresh Rate | ≥240 |
| frame Change Frequency | 50HZ |
| IP Grade | IP40 |
| Working Temperature | -20°C~65°C |
| Viewing Angle | 150°/140° |
| Cabinet Size | 768*768mm |
| Cabinet Weight | 32Kg |
| Lifespan |
