| 原産地: | 中国(本土) | 銘柄: | e & t | モデル番号: | ir-17 |
包装
| 包装: | 5個/carton標準パッケージ |

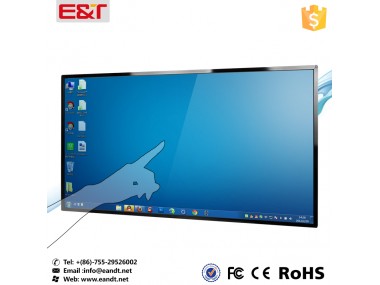

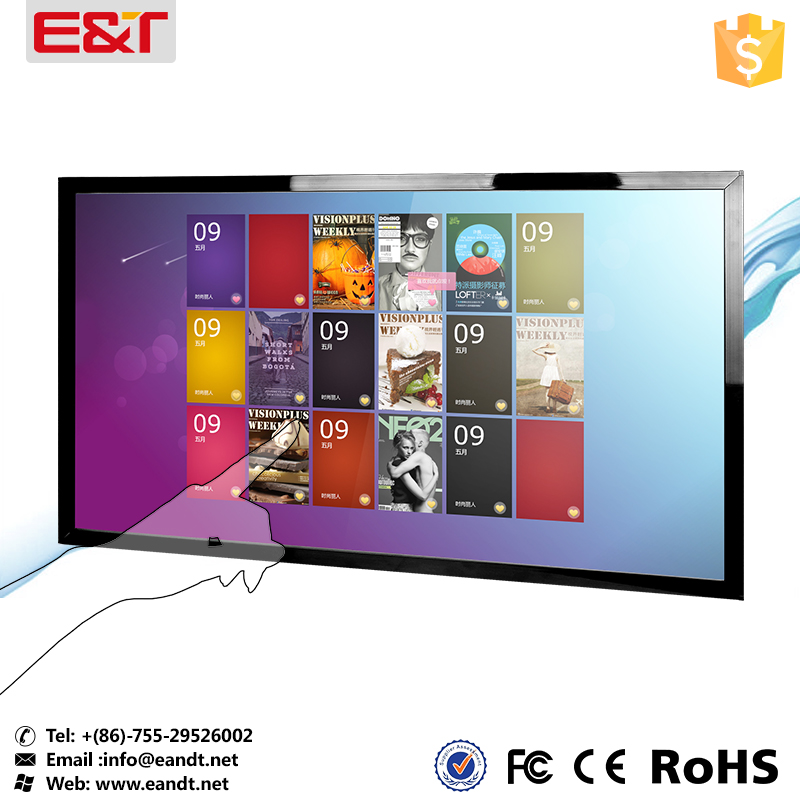

Infrared Touch sreen features:
touch screen with black metal frame and solid structure
Modular system design,multiple sizes and models available
Intelligent fault tolerance to ensure reliability
super working under sunlight(LUX10000),no drift
High resolution up to 4096x 4096,super transparency
IP65 standard protection,water and dust proof
Anit-vandal,scatch proof
maintemance freely
long expectancy
Operable in door and outdoor environment. totally exposure under sunlight
infrared touch screen technical data:
Resolution : 4096 x 4096
Position accuracy: accuracy 2 mm
Resolution: 4096 x 4096
Position: 0.2mm
Transparency: 98% - 100%
Touch sensibility: >3mm
Response time: <16ms
Scanning rate: 50 frame/s
Available object size for touch: ≥Ø5mm
Touch intensity: over 60,000,000 touch
interface: USB2.0, RS232
Operating system: Windows XP, Vista,7 , Linux
Environment:
Seal ability: IP65
Operating temperature: -40 - 70deg. C
Storage temp.: -40 - 85deg. C
Humidity: 10% - 90% (40deg. C)
Detection method: infrared ray
Applications:
ATM machine
Outdoor and indoor Kiosk
Gaming machine
Gas pump
Industrail control system
Medical and healthcare equipment
