| 全般的な用途: | 商業家具 | 原産地: | 中国(本土) | 銘柄: | フォーカス | モデル番号: | FOCUS-Y750 | 特定の使用: | 学校デスク | サイズ: | 120*85*85センチ | タイプ: | 学校家具 | 材料: | 金属 | 色: | カスタマイズすることができる |
包装
| 包装: | で木製ケース |

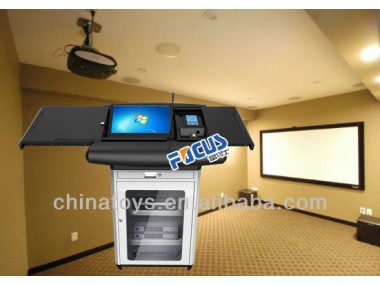

Desk/table/computer table/multimedia podium/rostrum/lectern/kiosk/e-podium/smart podium
Despatch photo:
Specification:
| 19'' hand-touch lcd screen technology based on Digitizer technology. | ||||
| Audio : Integrated Amplifier | ||||
| Power Consumption Up to 320W | ||||
| one-Year limited equipment warranty. | ||||
| Handwritten pen software: Supported operating system Window 7, Windows Vista, XP, 2000 | ||||
| Quality: ISO09001, IS014000, CCC and CE certification(The first enterprise of education) | ||||
| 19"LCD Touch Monitor | Luminance | 300cd/m2 | ||
| Contrast Ratio | 1000 : 1 | |||
| Resolution | 1440 x 900 | |||
| Response time (ms) | 5ms | |||
| Power supply | 12V_4A AC adapter | |||
| Viewing Angles | 170(H);160(V) | |||
| Technology | Touch panel of resistance | |||
| Interface | USB/VGA/DC12V | |||
| Durability | 30 million times touch validity | |||
| Body | 1)Material: solid wood, 1.5/2.0 mm stainless steel and top quality PE. 2)Close size: (L*W*H)850*770*1200MM, open size: 1540*870*1200MM 3)KD,so it saves Volume in transport | |||
| Multimedia Controller | VGA | VGA Inputs | VGA X 3 | |
| VGA Outputs | VGA X 2 | |||
| Signal Type | VGA, XGA | |||
| Pixel Frequency | 440MHz | |||
| Video | Composite Inputs | Video X 4 | ||
| Composite Output | Video X 2 | |||
| Bandwidth | 100MHz | |||
| Return loss | -30dB; 5MHz | |||
| Control | Switch Control Ports | X 2 | ||
| Screen Relay Controls | X 2 | |||
| Serial RS-232 Ports | X 1 | |||
| Other | Power(Adaptor) | 12V, 4A | ||
| Digital Amplifier | Output Power (Max) | 4*80W/8 4*160W/4 | ||
| Microphone Inputs | 8~20mV (3 Input) | |||
| PC/Laptop Inputs | 70mV (2 Input) | |||
| Audio Inputs | 70mV (4 Input) | |||
| Audio Outputs | 250mV (3 Output) | |||
| Frequency Response | 25Hz ~ 20KHz | |||
| AC Power | 220V to 240V AC, 20Hz/20kHz | |||
| Wireless Microphone | Frequency ranges | 174.0MHz ~ 270.0MHz | ||
| Type | Hand and Belt | |||
| Oscillation mode | PLL synthesized | |||
| Frequency stability | ±0.005% (-10~50°C) | |||
| Frequency response | 40Hz ~ 18KHz | |||
| THD (1KHz) | <0.5% | |||
| Signal to Noise ratio | >90dB | |||
| Power consumption | 24W | |||
| Gooseneck Microphone | Polar Pattern | Cardioid | ||
| Frequency Response | 60Hz ~ 18KHz | |||
| Sensitivity (0dB=1V/1Pa, 1KHz) | _38dB (±2dB) | |||
| Output Impedance | 2000 ohm Balanced | |||
| Controller panel | Controller panel separated with the host | |||
| High voltage control module:the power of projector and screen lifting | ||||
| Computer automatic switch machine button | ||||
| Volume and tone control module | ||||
| Light touch glass panel with a backlight | ||||
| Laptop Interface Modules | VGA x1 | |||
| Tablet USB x1 | ||||
| USB x2 | ||||
| Sound In x1 | ||||
| Power x1 | ||||
| Power distributor | AC Outputs | 220V-240V AC, 50Hz/60Hz | ||
| Maximum Input Power | 3KW | |||
