| 全般的な用途: | 家の家具 | 原産地: | 中国(本土) | 木製様式: | 純木 | 銘柄: | QLの機械類 | モデル番号: | QL-1313 | 出現: | 骨董品 | 特定の使用: | 居間のセット | タイプ: | 居間の家具 | 材料: | 木 | 折られる: | いいえ | ofiginの場所: | 山東中国(本土) | 色: | 任意 | 制御: | CNC | 作動させたシステム: | PCIのカード式 | 紡錘数: | 2つの紡錘 | ねじ: | ドイツの球ねじナット | ガイド: | Lnear輸入されたガイド | モーター: | 輸入された段階モーター | 精密: | 高いprocision | 自動: | 高い自動 |
包装
| 包装: | 合板 |

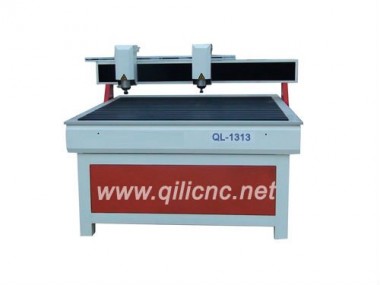

Furniture CNC Router Machine WithVacuum Table
QL-1313 Wood working cnc machine
Product Features:
German ball screw nuts; imported guide;
Linear guide ensures a longer life of the machine;
High-speed driver;
Axle X with dust-proof system, and this ensures the good performance of the machine;
The CNC Router Machine Advertising continues to work after the point-break and blade-brake, holding as many as 9 points;
Strong compatibility: CAD/CAM softwares, including type 3,artcarm,castmate,proe,corelerow...
Wide Range of Use: Advertising, mould, stone, architecture model...
Appliable Fields:
1. Woodworking: 3D wave plate, cupboard doors,furniture industry, decorative material,cabinet door,computer table, cabinets and panels,plastic fabrication,model,art crafts,musical instrument, plate.
2, advertising: large advertising signs,acrylic brands,tablets,calligraphy,3D characters cut,garden or wall decoration,logo, acrylic cut, billboard, plate production,LED/neon channel, literal-hole cut, Lightbox mold, stamp
3, die industry: a sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
4, others: large-scale relief sculpture, video carving,craft and gift, widely used in process industries gifts.
4>Configuration variable within reasonable limits according to clients' needs.
5>After sales service:(1) Free user friendly English VCD for machine using and maintaining .
(2) Hongye company provides free operation training service in Hongye factory.
Performance and parameter:
X Y Working Area | 1300mm*1300mm |
Z Working Area | >100mm |
Table Size | 1340mm*2020mm |
Max. Speed | 6m-7m/min |
Max. Working Speed | 3m-3.5m/min |
Working Delicacy | 0.005mm |
Repositioning Accuracy | 0.05mm |
Feeding Height | 110mm |
Command Code | G Code*.u00*.mmg*.plt |
Working Software | Windows98/2000/xp |
Power (not including spindle) | 450w |
Working Voltage | AC220V/50HZ |
Spindle Power | 1.5kw |
Spindle Running Speed | 0-24000rpm |
Motor | Stepper |
