| 原産地: | 中国(本土) | LEDの光源: | cree | 銘柄: | ホリーlite | モデル番号: | HLM-L058 | CRI (Ra>): | 75 | 入力電圧(V): | 120ボルトの277ボルト | ランプの明るい効率(lm/w): | 100 | 認証: | ETL, FCC, UL | ランプの光束(lm): | 6000 | ランプボディ材料: | アルミ合金 | ランプ力(W): | 60 | 働く寿命(時間): | 50000 | 働く温度(℃): | -20 - 50 | 色温度(CCT): | 純粋な白 | IPの評価: | IP65 | 光源: | LED | 様式を取付けなさい: | 取付けられる表面 | 項目タイプ: | 天井灯 | ledタイプ: | dlc led駐車ガレージライト | カバー材料: | 高強度透明pcレンズ | 基材: | 高圧ダイカスト | 電源: | 60ワット | 入力電圧: | ac120-277v | lumenaire効率: | 80-100lm/w | 色温度: | 4300-570000 k | 力率: | > 0.9 |
包装
| 包装: | 輸出カートン |

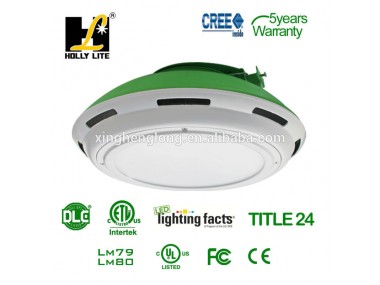

1 Details of DLC Led Parking Garage Lights :
Item No. | Specification | HLM-L058 | |
General Performance | Input Wattage | 40W | 60W |
Replacement | 150 | 200 | |
Initial Lumens | 3800 | 6000 | |
Efficacy | 95 | 100 | |
Input Voltage | 120-277V/50-60HZ | 120-277V/50-60HZ | |
CRI | 75 | 75 | |
CCT | 5000K | 5000K | |
Power Factor | ≥0.95 | ≥0.95 | |
THD | ≤15% | ≤15% | |
Driver Type | Constant Current / Class 2 | Constant Current / Class 2 | |
Surge Protector | 4KV inside of Driver | 4KV inside of Driver | |
Luminaire Life | 50000HRS | 50000HRS | |
Operation Condition | Operating Temperature | -30~+130 | -30~+130 |
Humidity | ≤95% | ≤95% | |

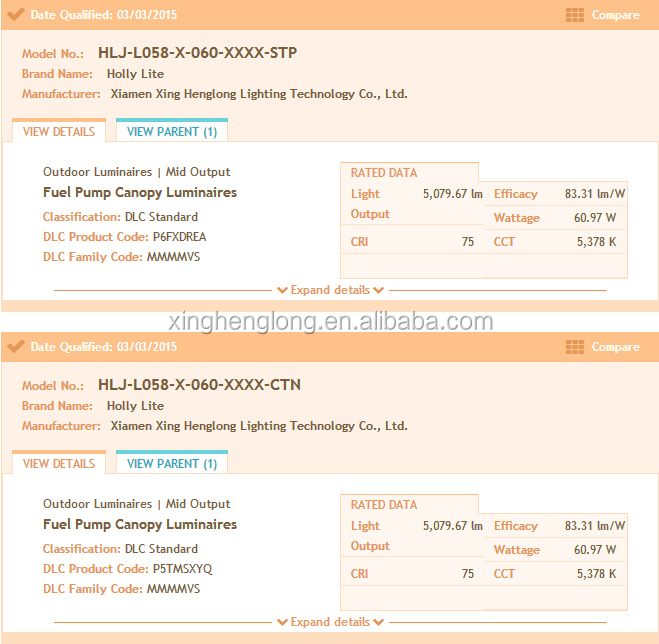

Certificate | Certification | ETL,cETL,DLC,FCC, LM79,LM80 | ETL,cETL,DLC,FCC, LM79,LM80 |
Enviroment | Suitable for Damp Location | Suitable for Damp Location | |
Material | Rohs compliant | Rohs compliant | |
2 Advantage of Holly lite:
Feature:
1 Replace up to 240Watt metal Halide
2 Universal 120-277V
3 Mercury Free: no UV
4 Aluminium spinning housing; rust and corrosion proof;polyester powder coating
5 Open air ventilation design, good heat dissipation function
6 Multiple installtion way is provided & cord out of the fixtures
7 4KV surge protector inside of power supply
8 LM-79/80 data available
9 5 Year Limited Warranty
Construction:
(1) . Fixture:Aluminium spinning housing; rust and corrosion proof;polyester powder coating
(2) . Lens: High light transmittance polycarbonate
(3) . LEDs: Top grade LED, high-output,long-life; CREE,SEOUL,SAMSUNG and so on
(4) . Heat Sink: Aluminium plate attach to the Housing and LEDs to act the whole fixture as
the heat sink system to reduce LED heats and add to life.
(5). LED Driver: IP65/ Constant current meets UL1310 UL 48 Class 2
Finish:Dark Bronze or white finish.. Environmentally friendly polyester powder coatings
(6) .Mounting: Wall mount, fast installation panel for ceiling mount or pipe mount are optional

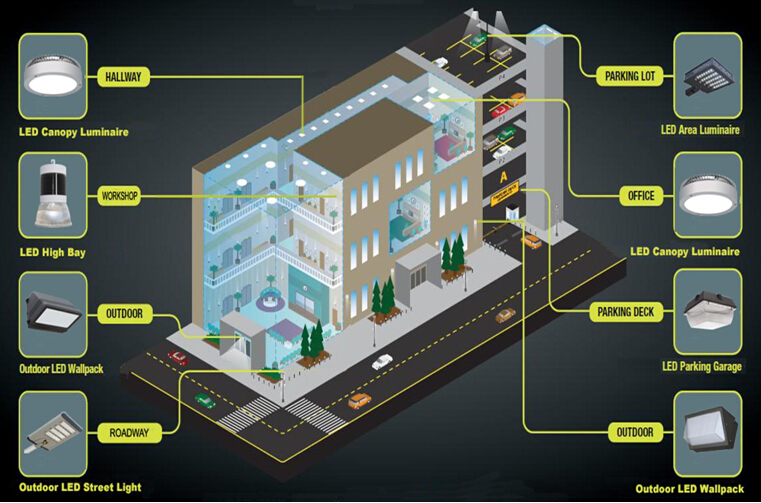

3 Holly Lite Products:
8. Why Holly Lite
Rich experience: We are experienced in many countries, especially in the US market.

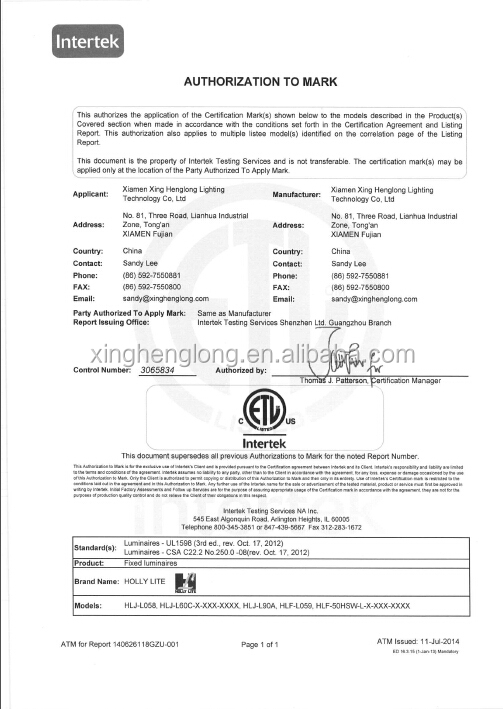

Certificate exist: ETL, CETL, DLC, UL, CE, ROHS certificate are available.
Quality assurance: Strict quality control system for light finish, always have good feedback from Holly lite customer.
Competitive price: Holly lite have own factory, so we have absolute price advantage in the lighting market.
VIP Service: 24 hours technique service by email and phone. The most important we provide solutions not only products.
Warranty: 5 years warranty, high quality assurance of Holly Lite stuff.Contact information.
