| LEDの光源: | led | 色を出すこと: | 黄色 | 原産地: | 中国(本土) | 銘柄: | xf | モデル番号: | B-3528-5M-600SMD-12V-Y | タイプ: | 屈曲LEDのストリップ | 入力電圧(V): | 12 | 認証: | CE, RoHS | ランプボディ材料: | アルミニウム | 働く寿命(時間): | 20000 | 働く温度(℃): | -25 - 45 | 光源: | LED | ランプ力: | 48ワット | 項目タイプ: | ライトストリップ |
包装
| 包装: | ctn |
FEATURES
Emitting Color: Green
Emitting Angle: 120 .

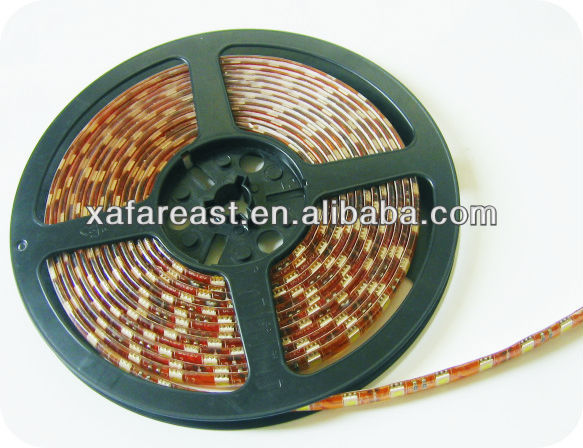

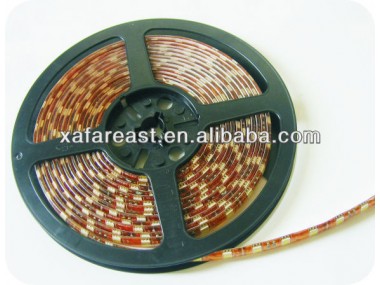

Package: Reel, 5 meters / REEL (600/LEDS)
No RF interference
Available in 12 volts.
Independent linear LED welded on to FPC with double
side adhesive tape on back
Every 3 LEDs forms a loop, does not affect other lines
DC or wire lead to order
Little or no heat, low power consumption (+ 5C @TA)
Can be cut to size at marked intervals and
rejoined (by Qualified personnel).
Continuous length
Flexible LED light strips
Solid-state, high vibration resistant
SPECIFICATIONS
Max voltage: 12 V DC
Watt/Reel: 48W (5M)
Watts/Meter 9.6W
Dimensions: 5000(L) x 8(W) x 3(H) mm.
Light source: 120pcs/ Meter 3528 LED
LEDs Type: 3528 SMD
Chip Material: AlGaInP
LED Emitting Angle: 120
Lamp life: >20,000 hours (estimated average)
IP Rating: IP65 glue trickling waterproof
Max Length 5 Meters
Operating temperature: C -25~+45
Protective clear epoxy cover with double side adhesive Tape on back
Package: Reel + Anti-static and moisture-proof bag
per roll + 50 bags per carton
