| 原産地: | 中国(本土) | 色を出すこと: | 白い | LEDの光源: | 5050 smd | 銘柄: | jingge | モデル番号: | JG-15010SM3 | タイプ: | LEDはライトを禁止する | CRI (Ra>): | 75 | 入力電圧(V): | 12ボルト | 認証: | RoHS, CE | ランプの光束(lm): | 480-510lm | ランプボディ材料: | ABS | 働く寿命(時間): | 50000 | 働く温度(℃): | -25 - 65 | 色温度(CCT): | 2700-8500 | 光源: | LED | ランプ力: | 6 | 項目タイプ: | ライトストリップ | led作業電流: | 85mA (定格150ma) | 作業電圧: | dc 12ボルト | ledタイプ: | 5054SMD | 電源: | 1ワット/モジュール | 光束: | 480-510lm/60センチ | led数量: | 6ピース/ 60センチストリップ | 増加ディメンション: | 10センチ/ 20センチ/ 30センチ/ 40センチ/ 50センチ/ 60センチ | マックスストリップ/ロール: | 24ピースledストリップ/ロール | 光色: | ホワイト( 8500 k/6500 k/4100 k/2700 k) | pcb材料: | 燃性繊維板 |
包装
| 包装: | インナーカートンbox+マスターカートンボックス( 中立パッキング) |

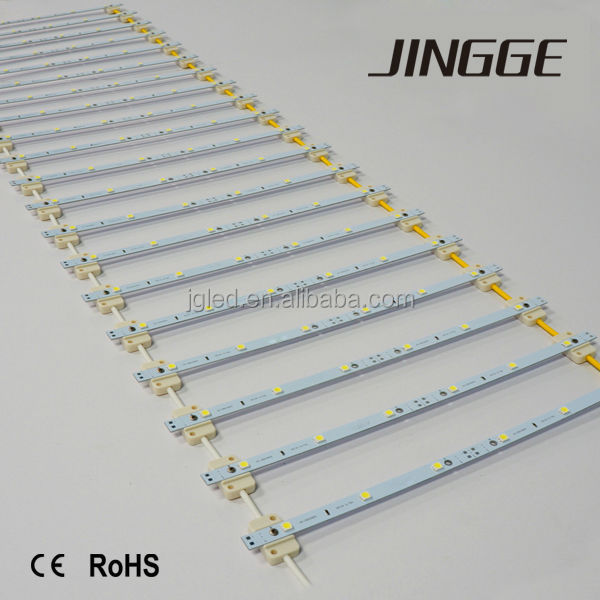

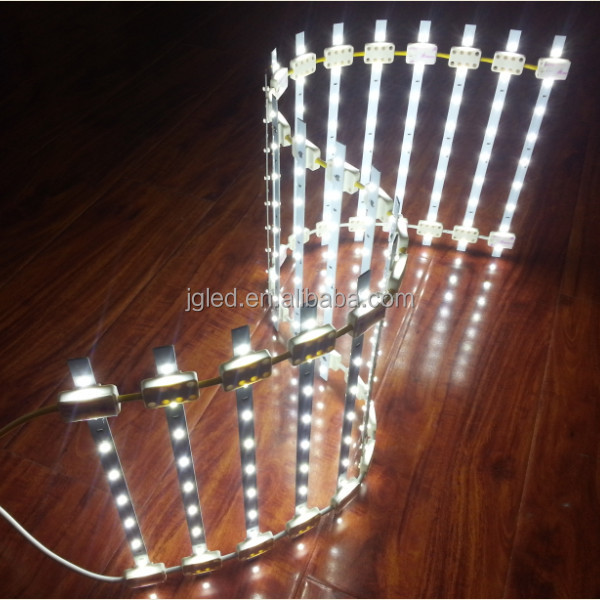

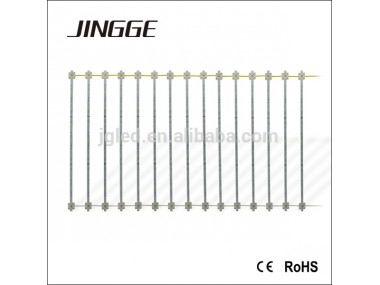

High brightness Double sided dot matrix backlighting LED light sheet roll for indoor outdoor cabinet
Product Description
Specification:

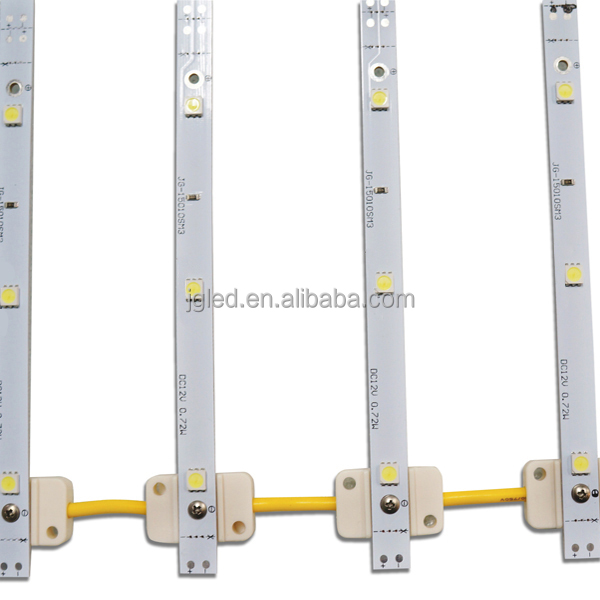

| Item No. | JG-15010SM6 |
| Dimension | 150×10×1.6mm (Moudle unit) |
| 600×10×1.6mm (Light Strip Unit) | |

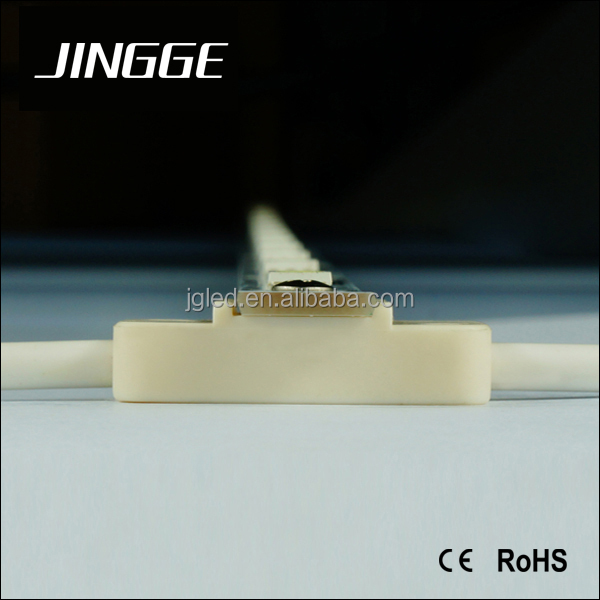

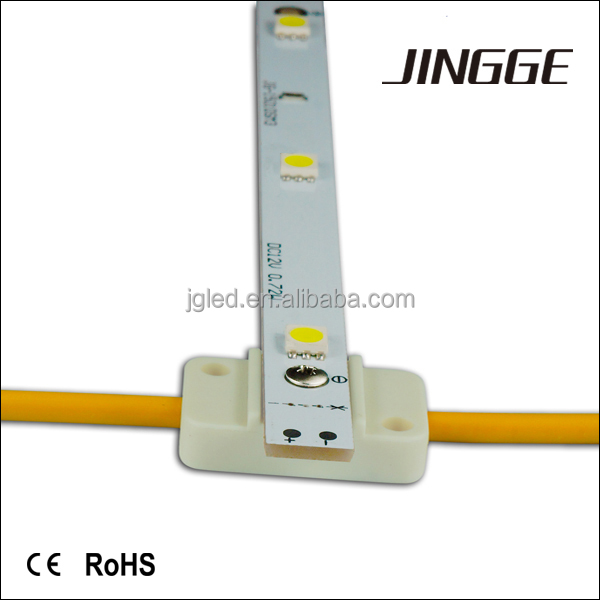

| 28×28×11mm (Patent Mount) | |
| LED Spacing | 50mm |
| Strip Spacing | 50mm |
| LED Type | 5050 SMD |
| LED Qty | 24pcs/ strip |
| LED Current | 60mA( Rated Current : 150mA) |
| Luminous Flux | 528lm |
| Power | 5.76W |
| Beam angle | 120° |
| Voltage | DC12V |
| Light Color | white (8500K/6500K/4100K/2700K) |
| Life Span | >50000H |
| PCB Material | Retardant Glass fiberboard |
| Mount Material | Retardant ABS |

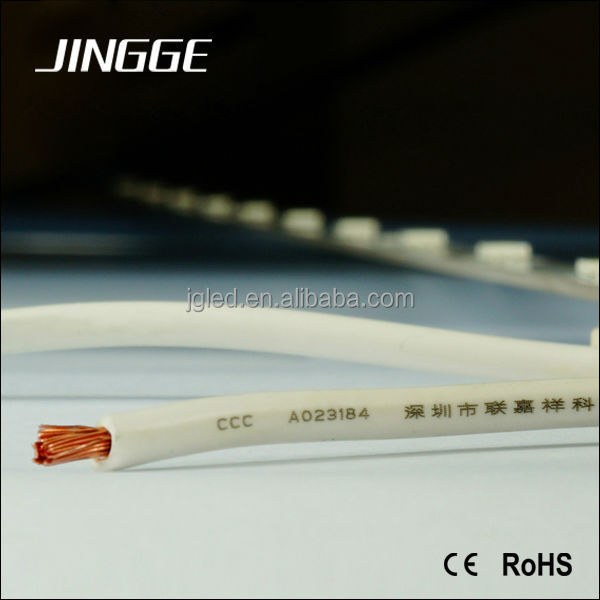

| Wire Specification | Φ3.8mm( Conductor cross-sectional area 2.5mm2) |
| Storage Condition | Antistatic Dry Room Temperature |
| Work Temperature | -25°C~65°C |
| Certification | CE, Rohs, Patent |
| Max Stripe Qty/roll | Vertical 21 stripes |
| LED Qty / 1M strip | 40pcs |
| LED Qty/ sqm | 800pcs |
| Power/ sqm | 192w |
| luminance/sqm | 17600/side |
Features:
Supperior Light Efficient
Long Lifespan (50000H)
Low Energy Consumption
Low Light-declining (no degradation in 6500H)
Safe Voltage (12V)
seleced Material & Humanity Design

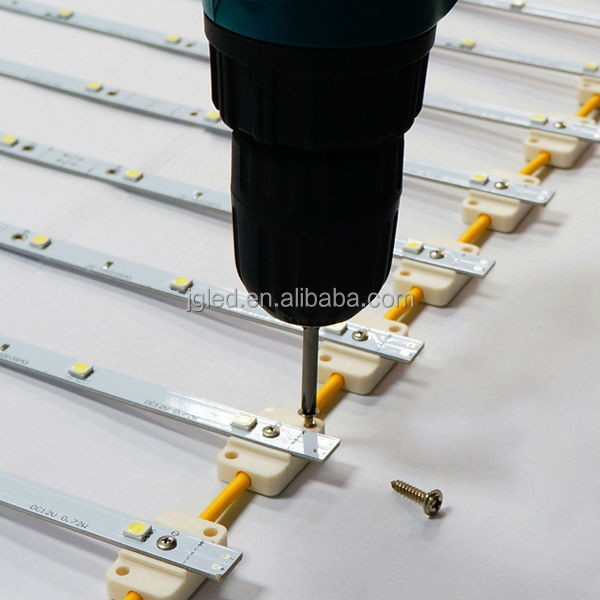

Easy Installation (vertical installation / lateral installation available)
Good Compatibility
Simple Maintenance
Why LED Light Curtain High Luminance
Traditional LED Tube backlight | LED light curtain backlight |
Serious Light decline | no degradation in 6500H |
360 glow,flux use ratio about 70% | Front side glow, flux use ratio about 100% |
Why LED Light Curtain Even Light
Traditional LED Tube backlight | LED light curtain backlight |
Light spot too close, couldn’t even the light | LED Light matrix array, light spot dispersed |
Different Distance from light side to spot | Same Distance from light side to spot |
visual effect affected once tube destroyed | No visual influence even single module damage |
Application:
1. Backlight for thick light box
2. Showcase lighting, Art lighting
3. office / home / school / station / library lightig
4. Residential / buildings lighting / art lighting
Our advantages:
1 We provide 2 years warranty .2 Our Lead time is 7-15days after deposit .3 We always provide competitive prices with proffessional OEM/ODM service4 100% after-sales service.5 T/T, Western unio, MoneyGramare acceptable.

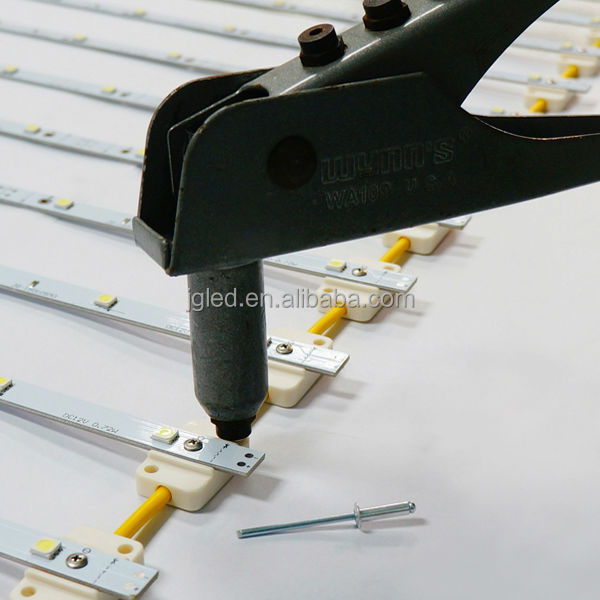

Installation Schematic Diagram
