| 原産地: | 中国(本土) | 銘柄: | chuanyi | モデル番号: | 隠されたバラスト | 様式: | 電子 | 力率の補償: | なし | 使用法: | 高輝度排出 | 一致させた管: | T8 | ランプのタイプ: | 隠されたキセノン | 電圧: | 12V/24V | 証明: | ISO9001: 2008年 | 使用法: | ヘッドライト | 力: | 35With55With70W | タイプ: | 厚い媒体、細いcanbus | 色: | スライバ、黒 | 保証: | 12か月 | OEM: | 利用できる | ODM: | 利用できる |
包装
| 包装: | カラーボックス |

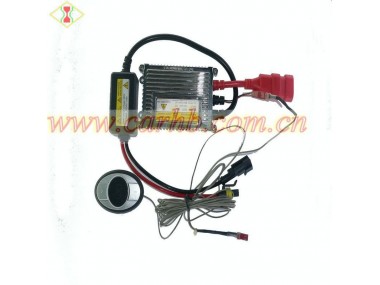

Wide Voltage HID Digital Xenon Ballast
9-32V hid xenon ballast
35w,55w Hid ballast
Auto xenon hid ballast
AvailableType:
Technique Parameters | |
Input Voltage Range: | 9-32V DC(12v/24v) |
Operating Voltage: | 13.2V DC Typical |
Cool staring current: | <5.2 A MAX |
Hot staring current: | <4.5A DC (13.2V DC In) |
Input Current: | <4.2A DC (13.2V DC In) |
Output Power: | 35/55W±1W Constant Power |
Output Frequency: | 380Hz-400Hz |
Output Voltage: | 70-140V AC True RMS Square Wave |
Operating Temperature: | -40°C~+105°C |
Efficiency: | >85% With input 13.2V DC Condition |
High Efficiency, Low Power, and High Reliability.
Quick star: 25% of objective luminous flux can be reached within 1 second ,
80% of objective luminous flux can be reached within 4second
IGNITOR
Trigger Output Voltage: 23KV
Trigger input voltage: 380V AC
Protect function:
1) Protection of Short Circuit: lock protection in 0.5s after Short Circuit.
2) Protection of Open Circuit: lock protection in 0.5s after Open Circuit.
3) Over voltage protection
4) Low voltage protection
5) Reversed input protection
6) End of life lamp voltage: >180V AC rms square wave
7)Water proof, Heat Proof
Quality warranty:
1) We are the ISO9001:2000 approved enterprise.
2) All of our products have the warranty of 1 year since the shipment
Dimension(mm)
Standard type
L*W*H=101*61*13 mm
Weight:0.3KG
