| 原産地: | 中国(本土) | 銘柄: | グリーン | IPの評価: | IP65 | モデル番号: | GLC-LD | タイプ: | 脱熱器 | 認証: | CE, RoHS | 保証(年): | 5 | ボディ材料: | アルミ合金 | ボディの色: | 黒 | を住宅のランプ: | 統合アルミラジエーター | 色: | 黒、白、青、グレー | 入力電圧: | ac220v | ライフ: | 60,000時間 | 名前: | led街路灯 | アプリケーション: | ストリート、道路、高速道路、ガーデン | 色温度: | 3000 k-6500 k | 照度均一性: | > 0.6 | 電力効率: | > 90% | 白斑形状: | 長方形の形状 |
包装
| 包装: | 国際標準光源ボックスまたは要請に応じて。 led街路灯 |
hot sale IP65 LED Street Light 60000hs with CE & ROHS China manufacture

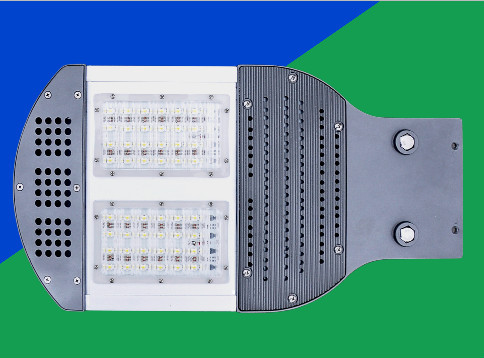

LED Street Light
60w led street light
IP65 LED Street Light
the characteristic of led street light:
High-power LED Street Lamps28--224W:
1) radiator and lamp case integration design, through lamp case radiator to release energy to air ,
2) lamp case uses aluminum alloy, it can release energy, waterproof and dustproof quakeproof .
3) The bat-wing light distribution offers wide luminance without glare, and add the an optical lens group, so that will consume some of ratio lumen.
Product Specifications
| Product Specifications | ||||||||||
| Model | GLC-LD01 | GLC-LD02 | GLC-LD03 | |||||||
| Specifications | 558×285×80(mm) | 709×285×80(mm) | 860×285×80(mm) | |||||||
| Net Weight | 6.9kg | 9kg | 10kg | |||||||
| LED Total Power | 40W | 48W | 56W | 80W | 96W | 112W | 120W | 144W | 168W | |
| Input Total Power | 44W | 52W | 64W | 92W | 110W | 131W | 134W | 166W | 196W | |
| Illuminance(LUX) Vertical | 6m | 20.5 | 23 | 28 | 42.6 | 52 | ||||
| 8m | 11 | 13.2 | 16 | 23.5 | 26 | 34 | 37.3 | 44.5 | 54 | |
| 10m | 7 | 7.5 | 11 | 14.5 | 16 | 22 | 23 | 25.5 | 35 | |
| 12m | 12 | 14.3 | 15 | 16 | 186.4 | 22 | ||||
| 14m | 13 | 13.5 | 16.4 | 18 | ||||||
| Luminous Flux(lm) | 3232 | 3880 | 4525 | 6218 | 7461 | 8705 | 9068 | 10882 | 12696 | |
| Illuminated Area | 6 meters:26×12 | 8meters:36×14 | 10meters:42×16 | 12meters:48×18 | ||||||
| Input Voltage | AC84V-264V and DC9V-30V | |||||||||
| Illuminance uniformity | >0.6 | |||||||||
| Power efficiency | >92% | |||||||||
| Current | Single 325mA | |||||||||
| LED Single Power | 1W | |||||||||
| Color Temperature | 3000K-3500K warm white 4000K-5000K white by yellow 5500K-6500K cold white | |||||||||
| LED Single efficiency | >90LM/W | |||||||||
| Lamp Temperature | <50°C | |||||||||
| Idemitsu Perspective | Horizontal:140; Vertical:77 | |||||||||
| Efficiency | >90% | |||||||||
| Power Factor | >0.99 | |||||||||
| Protection Grade | IP65 | |||||||||
| Facula Shape | Zoster Facula | |||||||||
FAQ
payment terms
1.Trade terms:F.O.B xingang China
2.Minimum order:MOQ is 1piece per item.We can offer discount if more than 100pcs/item one order.
3.Payment Terms:T/T, paypal, western unio in advance
4.Packing:Standard Export Carton with foam inside suitable for long-distant ocean shipment and tough handling. Or according to your requirement
5.Able:Standard OEM label.All artwork film and printing costs are of customer's expensed.
6.Delivery: Shipment can be made within 7~30 working days depending order quantity.
for more information : please contact me. i will offer you the best answer!
