原産地: | 中国(本土) | 銘柄: | クレン | モデル番号: | Cl-1207 | 色: | 銀 | 現在の作業:: | 8a/channel | 仕事の電圧: | 12v | 製品サイズ:: | L100*w64*h24mm | 定格出力電力: | 144ワット | Disdanceコントローラ:: | 30mrgb | led調光器: | ストリップled調光器 | 作業温度:: | -20- 60° | ボタン:: | 4ボタン | 総重量:: | 228g |
包装
包装: | カラーボックス |
Detailed Product Description:

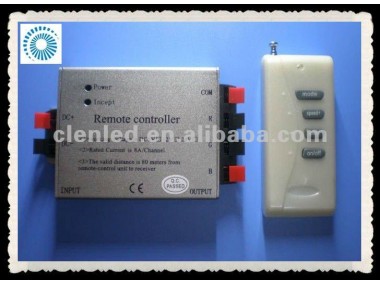

Wireless RF remote control battery led light:
1.Max load current: 8A each color
2.Max output power: 144W
3.Output:Positive common
4.CE&ROHS
Specification:
Supply Voltage | DC12V |
Max load current | 8A each color |
Max output power | 144W
|
Output | Positive common |
Product Size | L100*W64*H24mm |
Package Size | L170*W148*H36mm |
Working temperature | -20-60°C |
Net weight | 154g |
Description of operation&button on remote unit:
Button 1: Mode Button (press button 3 seconds), Total 11 modes as below:
1. Red-- 2.Yellow--3.Green--4.Cyan--5.Blue--6.Purple--7.white--8.seven colors jumpy change--9.seven colors gradual change--10. seven colors falsh change,flash 3 times each color--11.Circulation mode among seven colors Jumpy change,seven colors gradual change and seven colors falsh change--1.Red
Note: seven colors are R,G,B,Y,CYAN,P,W.
Button 2 :speed+ (it is valid at 8th-11th mode,8 grade speed,press button 1 second)
Button 3: speed- (it is valid at 8th-11th mode,8 grade speed, press button 1 second)
Button 4: On/Off (Press 3 seconds)
