| 原産地: | 中国(本土) | 銘柄: | Ledgor/oem/odm | モデル番号: | Lg-ledチューブ | 形: | まっすぐに | 主義: | led | ブランド: | Ledgor/oem/odm | パワー: | 8w/12w/18w | 光源: | 3014smdled | ledライトタイプ: | 暖かい白t8ledチューブライトハウジング | 光束: | 1800ＬＭ | モデル: | t8ledチューブ | 入力電圧: | 85-265v | ハウジング材料: | アルミ合金・曇らされたpcカバー | cct: | Netural白( 3800k- 4800k) | 保証: | 2年 |
包装
| 包装: | T83014smdledチューブライト: カートン・ボックスなど。 要求したように、。 |

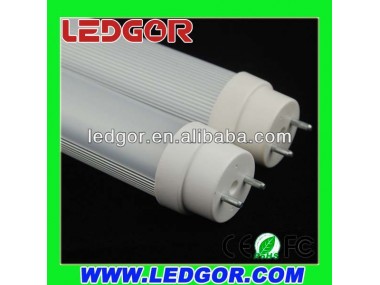

CE RoHS 3014 SMD Wam White T8 LED Tube light 110V 220V
Specification :
| Item Name | T8 LED Tube light 8W |
| Model | LG-T5 |
| Product Brand | LEDGOR / OEM / ODM |
| Power | 8/12/18W |
| Input Voltage | AC 85-265 V |
| External Dimension | Φ26*600/892/1198mm |
| CCT | WW(2700-3500K); W(3800-4800K); CW(5500-6500K) |
| Luminous Flux | 800/1200/1800 lm |
| LED Qty | 120/180/280 PCS |
| LED Type | SMD 3014 |
| LED Brand | CREE/Semi/Edison etc. |
| Housing Material | Aluminum alloy & Frosted PC cover |
| Power Supply | Yes |
| Warranty | 2 years |
| Certificates | CE & ROHS |
| IP Code | IP30/Class |
| Beam Angle | 120 Degree |
| Color Rendering Index | Ra≥80 |
| Mounted Place | Indoor |
Feature:
| High light-efficiency and long life time |
| Brightness degradation is less than 3‰ per 1000 hour |
| LED life time over 100,000 hours; Low power consumption and high brightness |
| Safe and environment friendly; Delicacy and top designed appearance |
| Complied with CE, RoHs standard |
| No UV or IR radiation |
- Your inquiry related to our led tube light or prices will be replied in 24hours.
- Well-trained and experiences staffs to answer all your inquiry in fluent English.
- OEM & ODM, any your customized panel light we can help you to design and put into product.
- Monthly output over 2,000 PCS.
- Warranty: 2 years and ensure high brightness and lifespan.
- Research and develop by ourselves with good material.
| Model No | Power | D i m e n s i o | PC Cover | Lumens output | PF |
| LG-T8-3014F12S | 1 2 W | 5 8 8 x Φ2 6 m m | Frosted/striped transparent | 1 0 8 0 l m | ≥0 . 9 0 |
| LG-T8-3014F14S | 1 4 W | 5 8 8 x Φ2 6 m m | Frosted/striped transparent | 1 2 6 0 l m | ≥0 . 9 0 |
| LG-T8-3014F16S | 1 6 W | 8 9 4 x Φ2 6 m m | Frosted/striped transparent | 1 4 4 0 l m | ≥0 . 9 0 |
| LG-T8-3014F18S | 1 8 W | 1 1 9 8 x Φ2 6 mm | Frosted/striped transparent | 1 6 2 0 l m | ≥0 . 9 0 |
| LG-T8-3014F20S | 2 0 W | 1 1 9 8 x Φ2 6 mm | Frosted/striped transparent | 1 8 0 0 l m | ≥0 . 9 0 |
| LG-T8-3014F22S | 2 2 W | 1 1 9 8 x Φ2 6 mm | Frosted/striped transparent | 1 9 8 0 l m | ≥0 . 9 0 |
| LG-T8-3014F24S | 2 4 W | 1 4 9 8 x Φ2 6 mm | Frosted/striped transparent | 2 2 0 0 l m | ≥0 . 9 0 |
| Input Voltage | AC100-240V. 50/60Hz | ||||
| Color Temperature | 2 7 0 0 - 7 0 0 0 K | ||||
| Beam Angle | 1 2 0° | ||||
| Color rendering index | ≥7 0 Ra | ||||
| Ambient Temperature | - 4 5 C° | ||||
| Service Life | More than 3000 hours | ||||
Thanks you so much for your time. Any question or other request of led lights pls feel free to contact us. Glad to be at your service!
