| 原産地: | 中国(本土) | 銘柄: | リード | モデル番号: | 統合光源シリーズ | 電源: | 500ワット(max) | マックス。順方向電圧: | 36ボルト | マックス。逆電圧: | 5ボルト | マックス。順方向電流: | 3500ma | 密封されたチップ: | エピスター/bridgeluxの | りん: | 三菱化学またはintermatix | ビーム角: | 140 ° | ルーメン: | 120-130lm/w | 作業温度: | -20〜65 ℃ | ライフ: | 50,000 h |
包装
| 包装: | 100ピースでは帯電防止pvcチューブ。 |

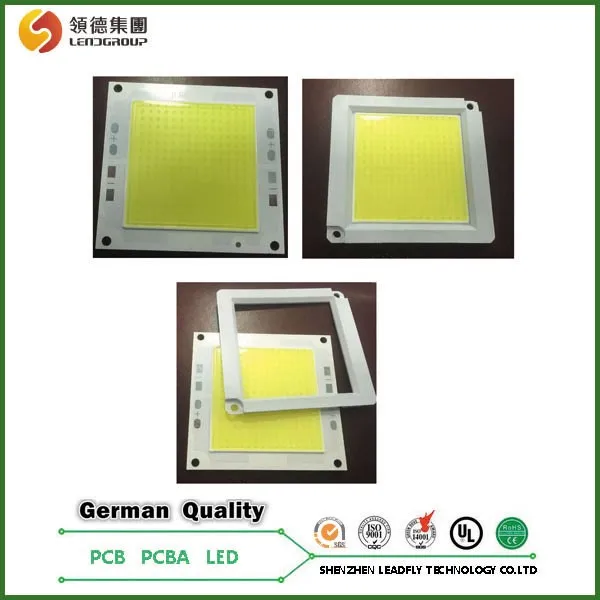

Hot Sale! High quality customized Epistar / Bridgelux chip Integrated Led COB
1. Specification
| Product No. | Color | Color Temperture | Lumin(MIN) | Lumin(MAX) | Forward Current | Forward Voltage (V) | Beam Angle | Packing Style |
| LIDAE9-DLC5-QNA | White | 5500K-6000K | 900 | 950 | 1050 | 10-15 | 140 | Integrated Panel |
| LIDAE9-DLN4-QNA | Nature White | 4000K-4500K | 900 | 950 | 1050 | 10-15 | 140 | Integrated Panel |
| LIDAE9-DLW5-QNA | Warm White | 3000K-3200K | 900 | 900 | 1050 | 10-15 | 140 | Integrated Panel |
| LIMAEE-FEC5-UNA | White | 5500K-6000K | 5000 | 5500 | 1750 | 32-36 | 140 | Integrated Panel |
| LIMAEE-FEN4-UNA | Nature White | 4000K-4500K | 5000 | 5500 | 1750 | 32-36 | 140 | Integrated Panel |
| LIMAEE-FEW5-UNA | Warm White | 3000K-3200K | 5000 | 5500 | 1750 | 32-36 | 140 | Integrated Panel |
| LIRAEJ-GCC5-UNA | White | 5500K-6000K | 10000 | 11000 | 3500 | 32-36 | 140 | Integrated Panel |
| LIRAEJ-GCN4-UNA | Nature White | 4000K-4500K | 10000 | 11000 | 3500 | 32-36 | 140 | Integrated Panel |
| LIRAEJ-GCW5-UNA | Warm White | 3000K-3200K | 10000 | 11000 | 3500 | 32-36 | 140 | Integrated Panel |
2. Driving Circuit
As high power LED lamp bead complies with the diode VI characteristic curve, if the floating current with the floating voltage could damage the led bead, that suggest customer using constant current power or IC, not using constant voltage power or IC. The LED lamp bead can’t be drove reversely;
3. Storage Conditon
A. Before open the package, the LED lamp bead could be stored below 30°C/90%RH. After open the package, the LED lamp bead should be used in 30°C/70%RH;
B. Should be used in 168hrs (7days) after open the package;
C. LED lamp bead with lens should be used with dustproof measures;
FAQ
Q:Can you offer samples before mass production?A: Yes, we can custom you sample to test before mass production
Q: How can I know the process of my production?
A: 5-7 days for COB production
Q: How can I make sure the quality ?
A: We ensure that each piece of COB products work well before shipping. We'll test all of them according to your test procedure
