| 原産地: | 中国(本土) | 色を出すこと: | 白い | 銘柄: | sumlight | モデル番号: | SL-RB-W01 | CRI (Ra>): | 75 | 入力電圧(V): | 12ボルト/24ボルト | ランプの明るい効率(lm/w): | 100 | ランプの光束(lm): | 972 | 認証: | CE, RoHS, EMC, FCC | ランプボディ材料: | アルミ合金 | ランプ力(W): | 9.72 | 働く寿命(時間): | 50000 | 働く温度(℃): | -25 - 65 | 色温度(CCT): | 純粋な白 | 光源: | LED | IPの評価: | IP65 | 項目タイプ: | 広告はつく | 色: | シングルカラーとrgb | 電圧: | dc12v & 24ボルト | smd: | 3528または5050 | led数量: | 30、60.72 | ライフ: | 50000 h | 視野角: | 120度 |
包装
| 包装: | 当たり2個抗- 静的な袋。 20抗- 静的袋ケースあたり。 |
Detailed Product Description

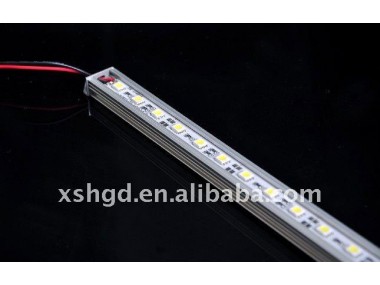

Aluminum LED Rigid Strip
1. SMD, Rigid, IP65
2. 1000mm*15mm*10mm
3. DC12V/ 24V
4. CE & ROHS
Aluminum LED Rigid Strip Specification
SMD Aluminum LED Light Bar | ||||
Item | Model | Size | LED Qty/ pcs | Power/ pcs |
SMD3528 | Available Color: Red/ Yellow/ Blue/ Green/ Pink/ W/ W W/ CW | |||
Voltage:DC12V/24V | IP Grade: Waterproof (IP65) | |||
XSH-3528-WP30-12-X | 500mm*10mm*18mm | 30leds | 2.4W | |
XSH-3528-WP60-12-X | 500mm*10mm*18mm | 60leds | 4.8W | |
XSH-3528-WP72-12-X | 1000mm*10mm*18mm | 96leds | 7.8w | |
| ||||
SMD5060 | XSH-5050-WP30-12-X | 1000mm*10mm*18mm | 30leds | 7.2W |
XSH-5050-WP60-12-X | 1000mm*10mm*18mm | 60leds | 14.5W | |
XSH-5050-WP72-12-X | 1000mm*10mm*18mm | 72leds | 17.5W | |
Note: Length can be customized
Feature
- Use high power LED
- Solid-State, High Shock/ vibration-resistant
- Maintenance free & long life
- Low power consumption & Low voltage operates DC12V or DC24V
- Fast and easy to install
- High brightness with no color fade, available in single color & multiple color
- Long Life span: 50,000hours
Aplication
- Architectural decoration lighting
- Under-cabinet lighting/ Bar and freezer cabinets
- Archway/canopy and bridge edge lighting
- Auditorium walkway lighting
- Amusement park/theater/aircraft cabin mood lighting,
- Stairway accent lighting,DIY lights for home use
- Channel letters lighting / Refrigerated display lighting
- Decorative lights for holiday, evens, show and exhibition
