| 銘柄: | zy照明 | CRI (Ra>): | 75 | 入力電圧(V): | 80-265 | ランプの明るい効率(lm/w): | 80 | 認証: | UL, CE, RoHS, LVD, EMC | ランプの光束(lm): | 12000 | ランプ力(W): | 150 | ランプボディ材料: | アルミ合金 | 基礎タイプ: | フック | 働く寿命(時間): | 50000 | 働く温度(℃): | -20 - 40 | 色温度(CCT): | 涼しい白 | 光源: | 蛍光 | IPの評価: | IP65 | 項目タイプ: | 高い湾はつく | 力率: | >0.98 | 電力効率: | >85％ | 光効率: | >91% | 演色評価数: | Ww: ra> 68、 pw/cw: ra> 75 | 動作電圧: | Dc30-36v | 入力電圧: | Ac85-265v | 作業温度: | -25~45°c | ip等級: | ip65 | ボディ材: | アルミ合金 | モデル番号: | ledハイベイライトメーカー | ビーム角(°): | 60 | 保証(年): | 4 |
包装
| 包装: | ホワイトボックスのまたは絵の具箱等とのあなたの条件までのパッキング。 |

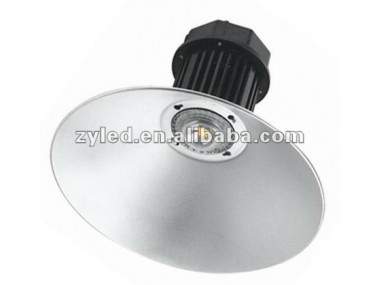

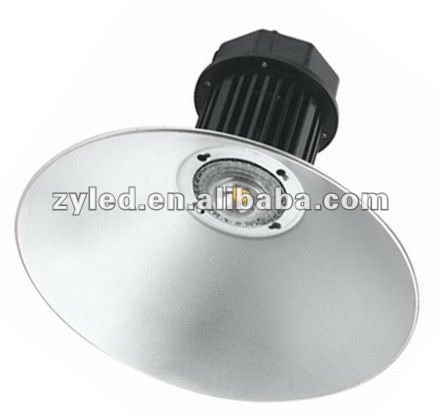

| Model number | ZY-HB80W | color rendering index | WW:Ra>68,PW/CW:Ra>75 | ||
| LED consumptions | 75W | beam angle | 90 | ||
| System Consumption | 86W | working voltage | DC30-36V | ||
| Led initial flux | WW | PW | CW | input voltage | AC85-265V |
| 6150LM | 6375LM | 6225LM | |||
| power factor | >0.98 | frequency range | 50-60HZ | ||
| total hamornical distortion | <9% | led junction temperature | <80°C | ||
| power efficiency | >82% | working temperature | -25~45°C | ||
| light efficiency | >91% | IP grade | IP65 | ||
| installation height | 6M | 8M | 10M | led working life-span | >50000hrs |
| average illuminance | >51.3LUX | >25.8LUX | >13.6LUX | certification | CE ROHS |
| illuminance area | φ9.5M | φ15.5M | φ19M | packing dimension | 260*260*360MM |
| illminance uniformity | >0.4 | net weight/gross weight | 6.5/7.0KG | ||
1) high lumen ,high power. low degradation,low heat
2) we are led factory and specilized in designing and developing the led lamps.
3) led chip from taiwan epistar,Bridgelux,Cree etc.
4) High lumens output ,low heat and the function is more steadier
5) Healthy beam ,without ultraviolet radiation & infrared, no radicalization
6) Green lighting ,without Mercuty & Plumbum and other relative hazardous substance.
7) Eyesight protection,DCdrive without frequency flash,ere will not be tired easily when light.
8) Energy saving with high efficiency
9) lifetime:30,000h to 50,000h
