| 原産地: | 中国(本土) | 破片材料: | InGaN | 光度: | 15-20 | 銘柄: | bly | モデル番号: | BLY-7835 | 色を出すこと: | 自然な白 | 電力損失: | 15-18mA | タイプ: | LEDモジュール | 認証: | RoHS, CE | 演色評価数(RA): | 70 | 光減衰(%): | 0.3 | 光束(lm): | 6-7ミリリットル | 実用温度(℃): | -10 - 25 | 力: | 0.045-0.06ワット | 視野角(°): | 45 | 色温度: | x、y (0.24、0.28) | 保管温度(℃): | -20 - 80 | 発光色: | 赤、緑、青、黄色、y & g、オレンジ、ピンク、ケニー、シアン、アンバー、など | サイズ: | 30.5*29*2.3 | 形状: | に従って顧客の必要 | ledスタイル: | 234dip led、3020,3528、0603、5050smd led。 | 均一性: | 以上70% | 厚さ: | customerized厚さから1.4ミリメートルに8.4ミリメートル | 電圧: | customerized電圧からdc 209ボルトにdc 3.1ボルト | 寿命: | 以上50,000時間 | 電力消費: | 0.045-0.06ワット | ドライブ電流あたりピース: | 15-18mA |
包装
| 包装: | 我々が使用する特別なデザイン仕様に従ってパッキングledバックライト。 |

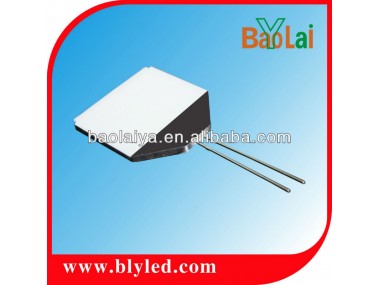

white display led backlight
1.Brihgt,color,size,custmerized
2, High quality,reasonable price, high brightness
3.CE and ROHS approved
4,2 years guarantee
white display led backlight
Characters
1)Light color customerized.All colors available, white, red, green,
blue, yellow,orange,pink,purple,cyan,amber,kenny,etc.
2)Specification as per customer.Big size can be 1200mm*2400mm,etc.
3)Voltale customerized as per customer.From DC2.4V to 36V.Normally
we have .
4)Thickness customerized,Total thickness from 1.4mm to 8.4mm.
normally we have 1.4mm , 2.4mm, 2.9mm, 3.4mm, 4.4mm, 5.4mm,
6.4mm, 8.4mm.
5)High color uniformity,more than 75% uniformity.
6)No light spot for the whole led backlight lighting area.
7)Current controlled under 18mA for each led chip for long lifespan
and good light decay
8)Lifespan:more than 50,000 hours.
9)RoHS and CE approved.
Applications
1)The side led backlight is majorly used for LCD moudle.
2)Samples available in 3 to 5 working days as per engineer dept's
sample's schedule after design /confirm/ied.
Production and samples schedule
1)Normal samples in 3 to 5 working days as per engineer dept's schedule.
2)Good delevery in 10 to 15 working days as per quantity and our
production dept's production schedule.
3)LCD mountning in 15 working days and we can also provide led backlight
with LCD as per customer's requires.
| Item | Symbol | Min | Typ | Unit | Unit | Condition | ||||||
| Forward Voltage | Vf(G) | 3.1 | —— | 3.2 | V | IF=120mA | ||||||
| Reverse Current | IR | —— | —— | 10 | uA | VR=5V | ||||||
| WL | WD | x,y(0.26,0.27) | nm | IF=120mA | ||||||||
| Luminous Uniformity | Pe | 70 | —— | —— | % | IF=120mA | ||||||
| Luminance | Lv(G) | 466 477 | Cd/m² | IF=120mA | ||||||||
