| 原産地: | 中国(本土) | LEDの光源: | クリー( bridgelux、 日亜、 その他) | 銘柄: | hongmao | モデル番号: | Sl-tl1w60 | CRI (Ra>): | 80 | 入力電圧(V): | Ac90-264v | ランプの明るい効率(lm/w): | 93 | 認証: | CE, RoHS, UL, SAA | ランプの光束(lm): | 5580lm | ランプ力(W): | 60 | ランプボディ材料: | アルミニウム | 保証(年): | 3 | 働く寿命(時間): | 50000 | 色温度(CCT): | 2500k- 7000k( 自然の白、 純粋な白、 クールホワイト、 暖かい白) | IPの評価: | IP65 | 光源: | LED | 項目タイプ: | トンネルはつく | 製品名: | トンネルライト、 ledトンネルライト、 ledトンネルライトip65 | パワー: | 60w | チップブランド: | クリー族led( bridgelux、 日亜化学工業または利用できる他) | 電圧: | Ac90-264v | 光束: | 5580lm | powersupply: | meanwellブランドul | ip等級: | ip65、 防水 | 保証: | 3年間 | 寿命: | >50000hrs | N。 w( kg): | 3.6キロ |

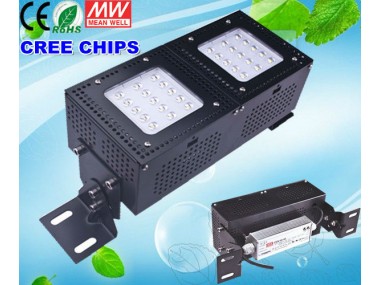

A. Eco-friendly module desing waterproof Cree 60w led tunnel lamp tunnel light
B. AC90-264V,Meanwell Driver
C. Cree LED(Bridgelux,Nichia or others available)
D. Color temp. can be Warm White,Nature White,Pure White,Cool White,as customers requirements
E. 3years warranty,5years or more available
F. CE&RoHS approved
G. Low shipping freight cost but stable and ontime shipping way
Cree Chips Meanwell Driver 60w led tunnel light lamp Specification
Product Name | tunnel light,led tunnel light,high power led tunnel light | ||||||
Product Item | SL-TL1W60 | SL-TL1W120 | |||||
Power Watts | 60W | 120W | |||||
Input Voltage | AC90-264V | ||||||
Working Voltage | DC42-52V | ||||||
Working Current | 550MA*2 | 550MA*4 | |||||
Frequency Range | 50-60Hz | ||||||
LED Chips | Cree LED(Bridgelux,Nichia or others available) | ||||||
Power Supply | UL Meanwell Brand | ||||||
Power Factor | >0.9 | ||||||
Beam Angle | 90*135degree | ||||||
Fixture Luminous Efficiency | 93 LM/W | ||||||
Lamp fixture Flux(LM) | 5580M | 11200LM | |||||
Lamps Efficiency | >87% | ||||||
Color temperature
| Warm White(WW):2500-4000K | ||||||
Nature White(NW):4500-5000K | |||||||
Pure White(WW):5500-6500K | |||||||
Cold White(CW):6500-7000K | |||||||
Color Rendering Index | Ra>80 | ||||||
Life time | >50, 000 Hours | ||||||
Operating Temperature | -40°Cto+55°C | ||||||
Humidity Operating | 10-80% | ||||||
IP Code | IP65(Waterproof) | ||||||
Certificates | CE,ROHS,UL for driver | ||||||
Warranty | 3years | ||||||
N.W(KG) | 3.6KG | 6.6KG | |||||
G.W(KG) | 4KG | 7KG | |||||
Product Size | 399*135*175.5mm | 688*135*175mm | |||||
Cree Chips Meanwell Driver 60w led tunnel light lamp Features
1. 60w LED Tunnel Light with Wide voltage of AC90-264V.
2. Outdoor LED Tunnel Light Sources: Adopts America Cree Chips,Bridgelux,Nichia or other chips available.
3. Special design for thermal management,we use a vapor chamber to conduct heat from LED to PCB to heat dissipation fastly.
4. Tunnel Lamp Boby: High-purity aluminum and through the metal oxide surface treatment or heat-curing coating,with waterproof and durable silicon rubber sealing gasket and stainless steel screw.
5. 60w Led Tunnel Light Power Supply: Adopts Meanwell famous brand and ensures long time to operation and least 3 years warranty.
6. Waterproof Tunnel Light Energy Saving: Low energy consumption and high brightness.
7. LED Tunnel Light with high-efficiency and low power consumption (93lm/w average).
8. Tunnel Light 60w Mechanical Behavior: No speckle, flickering, humming and buzzing, No delay start. It can reach its normal light as soon as it is turned on, avoiding the long-time start process of the traditional light.
9. Antijamming Capability: No adverse glare or flicker, which eliminates vision fatigue and distraction for good light distribution.
10. Environmental Protection: Eco-friendly, no UV and infrared radiation, no risk of mercury emission, no environmental pollution.
11. IP65 Tunnel Light Installation: This product can be installed very conveniently by using matched aluminum mounting base and the light direction can be adjusted at wall.
Cree Chips Meanwell Driver 60w led tunnel light lamp Applications
Outdoor and Indoor Lighting Workshops, factories, storehouse, exhibition hallsToll station, gas station, gymnasiums, stadiums, billboard, wall lightingGarden, parking, commercial building.
Hongmao Lighting Service and After Sale Service
1. Discout are offered based on order quantity,and price negotiable if customer’s market needed.
2. Delivery goods fastly,stable and ontime if without any accident.
3. With standard package and keep goods in good condition when shipping to customers.
4. 3-5years warranty,free of sending components and new lights at the rest of 1 or 2 years.
5. 24 hours to provide technical support.
6. OEM & ODM are welcomed, OEM brand is available.
Trade Terms
1. Payment: T/T, Western unio,Paypal available
2. Lead time: 1-3days for sample order,7-10 working days for 100~500pcs,15 working days for 500~2000pcs,18-22days for 3000pcs.
3. Shipping freight is quoted under your requests
4. Shipping port: Shenzhen, China mainland
5. Discouts are offered based on order quantities
6. MOQ: 1pc
